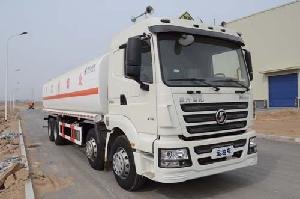

SHACMAN F3000 8x4 25000L Sprinkler Water Tank Truck
No.: Jim-208252
Vehicle Type: Water Tank Truck
Brand Name: SHACMAN
Person in charge: Jim yao
Cel: 0086 176 6971 7509
Whatsapp: 8617669717509
E-mail: sales29@chinatruck.cc
FREE GET QUOTE
Details
Chassis:
Traction type | LHD | |
Drive System | 8x4 | |
Cabin | F3000 flat cabin, air conditioner, one sleeping bed | |
Engine | Brand | Weichai |
Model | WP10.336 EuroIII | |
Rated power | 336hp | |
Engine displacement | 9.726 liters | |
Gearbox | 12JSD160T | |
Clutch | Ф430 Diaphragm type | |
Steering | ZF Technology | |
Axle桥 | Front | 7.5t MAN |
Rear | 16t MAN, double reduction, ratio: 4.266 | |
Max. running speed (km/h) | 90 | |
Tire | 12.00R20 | |
Fuel tank | ||
Kerb weight (kg) | 11500 | |
Total mass (kg) | 31000 | |
Wheel base (mm) | 1800+4500+1350 | |
Overhang (mm) (front/rear) | 1525/2675 | |
Track (mm) (front/rear) | 2011/1860 | |
Approach / departure angle(°) | 18/30 | |
Overall Dimensions（L*W*H）(mm) | 11900x2500x3720 | |
Options | ||
Water Tank:
Volume | |
Thickness | |
Material | Q235 |
