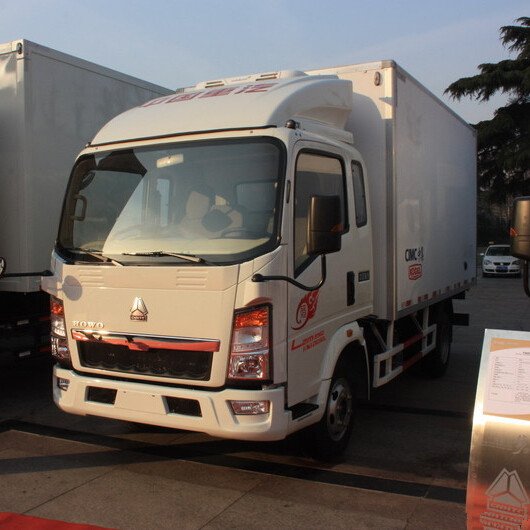

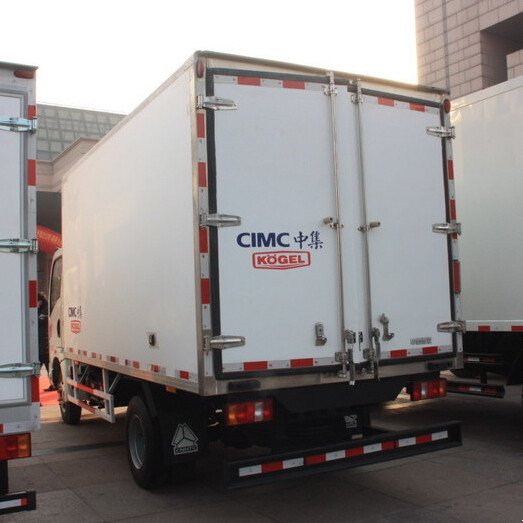

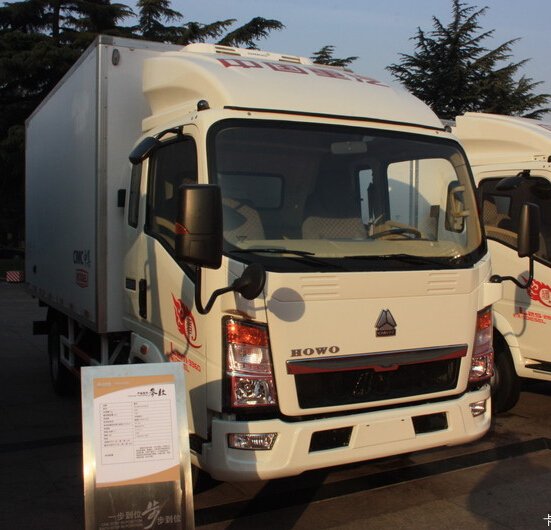

SINOTRUK Howo 5 ton Refrigerated Truck for Hot sale
No.: Kevin210524
Vehicle Type: Refrigerator Truck
Brand Name: SINOTRUK
Person in charge: Marketing Director: Mr Kevin Jiang
Cel: 0086 176 6971 7518
Whatsapp: 8617669717518
E-mail: sales17@chinatruck.cc
FREE GET QUOTE
Details
1.SINOTRUK refrigerated truck for sale
2.Cooling van truck for frozen food transportation
2.High quality and competitive price
3.All Kinds Of Design
4.Best after-sales
| REFIRGERATED TRUCK-ZZ1047C3414B145 | |||
| HOWO /4x2 series /3360 wheelbase/ | |||
| 4x2,REFIRGERATED TRUCK, HOWO76 cabin(Single sleeping bed,A/C), with CY4100-ZLQ engine, with HW13710CL transmission,ZF8098 steering, Details for the specification List | |||
| SPECIFICATION | |||
| Carriage dimension: (mm) | 5540x2300x2550 | ||
| Dimension(Lx W xH) | 8377x2496x3048 | ||
| Approaching angle/Departure angle(°) | 19/23 | ||
| Overhang(front/rear) (mm) | 1500/1870 | ||
| Wheel base (mm) | 3600+1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 19850 | ||
| Engine | Model | CY4100-ZLQ | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 70KW | ||
| Emission | EURO IV | ||
| Fuel tanker capacity (L) | 300 | ||
| Transmission | Model | HW13710CL,10 forward&2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8098 hydraulic steering with power assistance | |
| Front axle | HF7 | ||
| Rear axle | MCY13Q | ||
| Tyre | 12.00R20 | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | ||
Other features for refrigerator cooling van truck :
A. Refrigerator unit Brand Optioanl : American CARRIER ,THERMO KING, South Korea hanya,
China Songhan,hanxue,etc.
B. Minimum temperature optional: 5 °C to -18 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working,
low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance
and other advantages, it will sure you use safe!
