Lifting mechanism - dump truck biceps

10 Jun 2020

Dump trucks are vehicles that are unloaded by hydraulic or mechanical lifting . It consists of chassis, hydraulic lifting mechanism, a cargo box and power take-off device(PTO). With the continuous development of the economy, dump trucks are playing an increasingly important role. Here I will learn about the important part of the dump truck with everyone - lifting mechanism.

1. Dump Truck Lifting Method

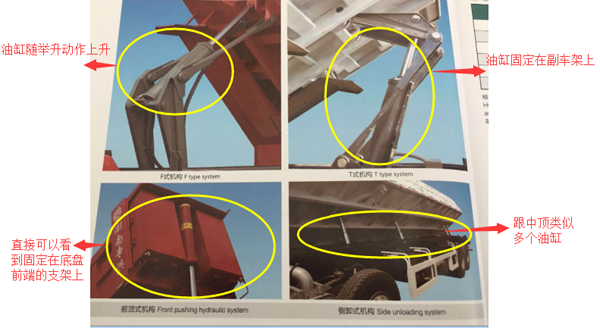

The dump truck has different lifting methods, common lifting methods are Under-body lifting system, front pushing hydraulic system, and side unloading system. Under-body lifting system include “F” type system and ”T” type system.

2. Construction of dump truck hydraulic system

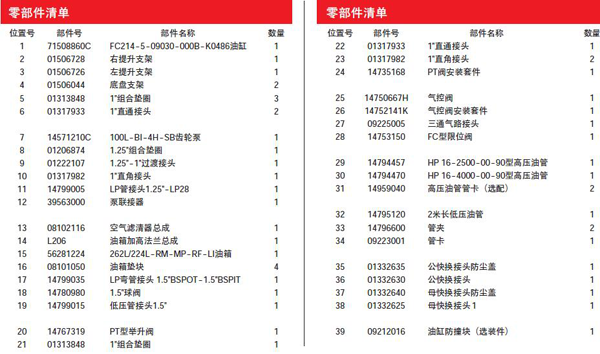

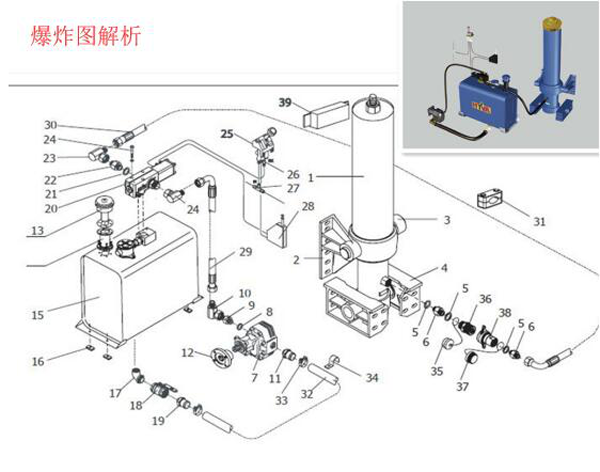

After we learn more about the various lifting mechanisms of dump trucks, then we may ask, which parts of the dump truck's lifting mechanism are composed of? In fact, the lifting mechanism of the dump truck is different，but the major parts are oil tank . gear pump. Lifting valve, cylinder, limit valve, air control valve.

3. Dump Truck Hydraulic System Working Principle

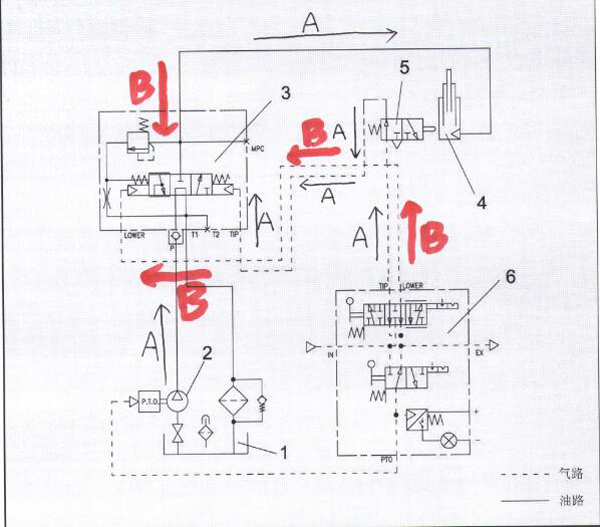

Then the dump truck lifting mechanism is where the power comes from. Then we look down. In fact, the lifting mechanism of the dump truck is divided into two parts: the gas line and the oil line. The purpose of lifting the dump truck is achieved through mutual cooperation between the two lines. The airway system maintains kinetic energy through the vehicle's own air reservoir, the oil path passes through the gear pump, and the gear pump obtains kinetic energy from the gearbox through the power take-off. Below we look at the working principle of the hydraulic system through two actions of lifting and lowering the dump truck:

I. The air control valve 6 is moved to the "lifting" position. At this time, the compressed air enters the right end of the reversing valve in the lift valve 3 through the limit valve 5, pushes the valve core to the left, and the valve core is moved to the left, and then the oil pump 2 output pressure oil, after a one-way valve, the valve into the lower chamber of the cylinder 4, push the piston up, move up to a certain position, hit the limit valve 5, so that the limit valve spool left, cut off the control on the gas path, the piston rises and stops. At this time, the dump truck box reaches the maximum lifting height.

2. The air control valve 6 is pulled to the "down" position, and the compressed air directly enters the left valve of the reversing valve in the lift valve 3, and at the same time closes the power take-off device. At this time, the oil pump 2 outputs the oil and the oil in the oil tank through the radiator drained back to the tank, and the piston of the cylinder drops under the weight of the cargo box .

3. - Choosing the suitable system

I believe that we have a better understanding of how dump trucks can be lifted and lowered. Then, when we give customers quotations for dump trucks, how do we recommend lifts? For general boxes below 5.6, we will basically recommend mid-top lifting methods to customers. In the top type, the general "F" type is cheaper and more than 5.6 meters. Generally, we will recommend top lifts to our customers. The way, because the front top is more stable than the top, the unloading is safer. The 5.6-meter models can be recommended to customers based on their budget.Today we learned a lesson here. Next time we will study again, thanks for reading!
