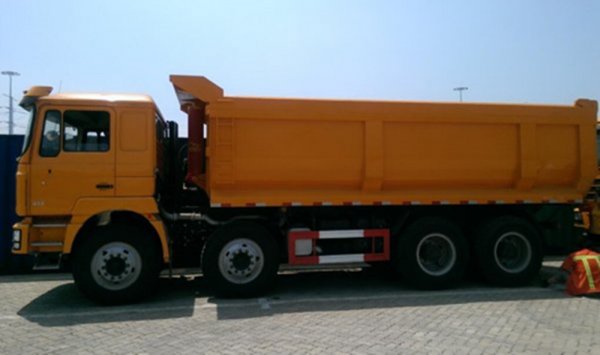

Sinotruk HOWO 8x4 U Shape Mining Tipper Truck 40-50 Ton
Main Spec.:
HW76 cab with one sleeper;
Weichai engine: 420HP;
U-shape bucket specilied designed for mining transportation;
Strong bucket with big thickness, floor 12mm and side 10mm
ZZ3317V3567W | ||
Drive type | 8x4 Left Hand Drive | |
Cab | Type | HW76 cab with one sleeper |
Equipments | 2rear window, mechanical clerestory, hydraulic suspension cab, hydraulic chair with seat-belts, one sleeper, hydraulic reversal cab, with USB, can play radio broadcasting and audio in MP3format, equipped with A/C | |
Vehicle Main | L x W x H | 10245×2496×3170 |
Wheel base(mm) | 1800+3500+1350 | |
Front/Rear truck(mm) | 1500/2095 | |
Approach/Departure(°) | 19/18 | |
Weight | Kerb mass （kg） | 14860 kg |
Total mass (kg) | 31000kg | |
Engine | Brand | SINOTRUK |
Model | D12.42 | |
Power(kw/HP) | 309/420 | |
Displacement(L) | 11.596 | |
Emission Standard | Euro II | |
Transmission | Brand | SINOTRUK |
Model | HW19710 | |
Control type | Manual | |
Gear shift | 10-forward and 2-reserve speeds | |
Clutch | Diameter(mm) | 430 |
Steering | ZF8118 | |
Axles | Brand | SINOTRUK |
Front axel | HF9 | |
Rear axel | HC16, with ratio 4.8 | |
Tires | Type(Standard) | 12.00R20 |
Dump Body | Cargo Dimension (mm) | 7300x2300x1200, 20CBM |
Thickness of body steel | Floor 12mm, side 10mm | |
Lifting Type | Front tipping | |
