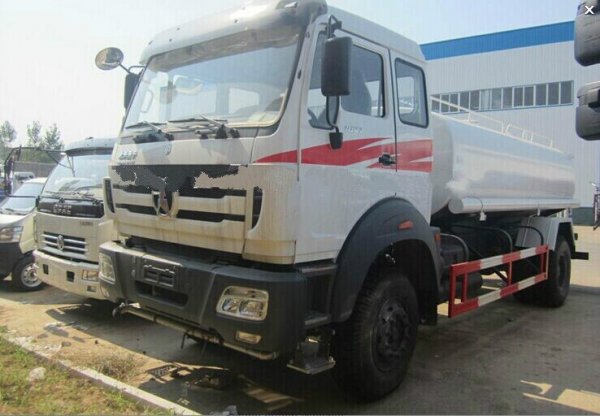

North Benz BEIBEN 4x2 Water Tanker Truck 10000 liters Water Tank Truck

Brand: North Benz

Traction type:

Driving type: RHD / LHD

 Cabin:NG80B , One Sleeper

Engine brand: Weichai

Engine model: WD615.56 EURII

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. output: 270hp@2200rpm

Max torque: 1100NM@1300-1600rpm

Bore/Stroke(mm):126/130

Specific fuel consumption: 198g /Kwh

Gear box: Fuller 9 speeds  (9JS135B)

Clutch:  GF430 spring type

 Steering: ZF8098

Front axle: Benz front axle

 Rear axle: Benz driving axle (punching-welding axle housing, double

          Reduction driving axle, inter-wheel differential and differential lock)

Tyre : 12.00R20 (rim: 8.0-20)

Max. speed (km/h): 85

Wheel base (mm): 4800

II. TANK

Capacity of tank: 10m3（including Pump）

Material: Q235B Normal black Steel metal sheets of in down of in down 5mm and side 4mm thickness
