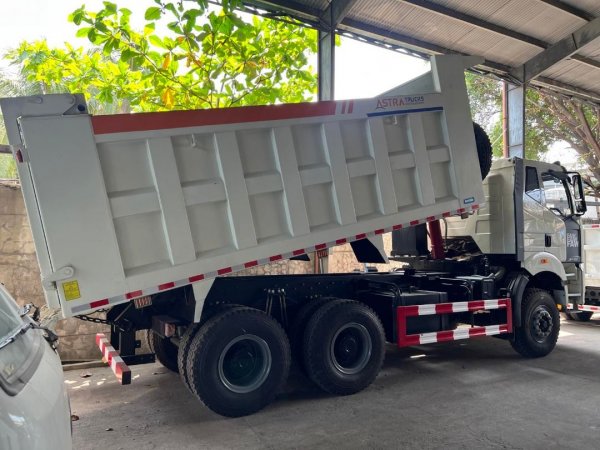

Brand New Faw J6P Dump Truck 6x4 370/390HP 30Tons LHD Dump Truck
No.:
Vehicle Type: Dump Truck
Brand Name: FAW
Person in charge: Marc Zhou
Cel: 8617664086916
Whatsapp: 8617664086916
E-mail: sales3@chinatruk.cc
FREE GET QUOTE![_20230914234530](res/en/20230914/90bbf1de4ed976d9.jpg)
Details
Main Technology Parameter | |
Model name | FAW J6P dump truck |
Model | CA3250P66K24L2T1E |
Driving type | LHD |
Traction type | 6×4 |
Color | optional |
Weights | |
Gross Vehicle Weight(kg) | Approx.12200 |
Dimensions | |
Wheelbase(mm) | 3800+1350 |
Overall dimension(mm) | Approx. 8600х2500х3450 |
Engine | |
Engine model | Xichai CA6DM2-39E3F (EGR) 390HP |
Emission standard | Euro Ⅱ |
Engine type | 4 stroke water-cooled, inter-cooling |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 11.04 / Diesel |
Max. output (kw) | 290 |
Fuel Tanker(L) | 400L steel fuel tank |
Drive Line | |
Gearbox | CA10TAX190F transmission (power take-off) |
10 forwards, 2 reverse gear, manual gearbox | |
Maximum input torque | 1900N.m |
Steering | Power steering |
Brake | Air brake, engine exhaust brake |
Clutch | 430 diaphragm |
Cab | |
Cabin | The new J6P African version has a fully floating flat-top row and a half cab, manual glass lift, manual rearview mirror, and the driver's seat is a mechanical shock-absorbing seat. |
Standard configuration | Automatic air conditioning, rear two-point coil spring suspension of the cab, 400L steel fuel tank, manual hydraulic lifting device, metal bumper, raised hydraulic support, English nameplate and logo (cab flip operation safety warning label, manual pump assembly - Cab lift, air conditioning use and maintenance warning labels, power steering oil tank labels, air filter instructions) |
Axle | |
Front axle | 2020 front axle |
Rear axle | Axle ф300 cast iron improved wheel reduction axle (manual adjustment arm, 1878 wheelbase, double I-rod V cloth) |
axle ratio | 5.921 |
Tire specification | |
Tire specification | Type 12.00R20 18-layer tubeless standard tire,10 tires+1 spare part |
Parameter | |
Economic speed/maximum speed(km/h) | 40~65/90 |
Max. Gradeability | 35(%) |
Rear overhang(mm) | 1000 |
Suspension | Leaf spring, 12/12 |
Frame(mm) | 300×80×(8+8) |
Color | Customized |
Other | Integrated iron shell oil bath air filter, suspension 12/12, rear suspension 1000mm, 150Ah battery, 4U bolts, double fuel filter, |
Body parameters | |
Body dimension(mm) | 5600x2300x1500 |
Body volume(m3) | 19 |
Material | Carbon steel plates |
Lifting method | Front hydraulic lifting system |
