Model name

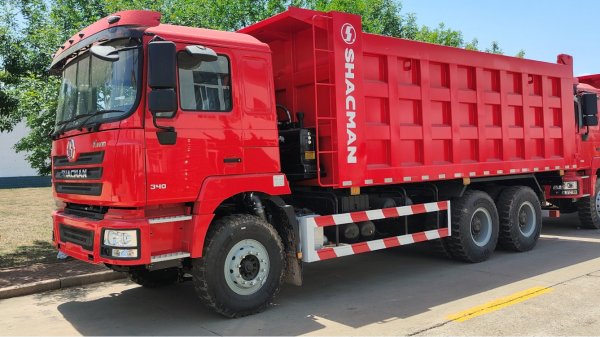

Shacman Delong F3000 dump truck

Driving type

LHD//RHD

Traction type

6×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.12500

Gross Combination Weight(kg)

Approx.50000

Dimensions

Wheelbase(mm)

3775+1400

Overall dimension(mm)

Approx. 8354×2490×3450

Engine

Engine model

WP10.380E22, 380HP, WEICHAI engine

Emission standard

Euro 2

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726 / Diesel

Max. output (kw)

279

Fuel Tanker（L）

300L Aluminum fuel tank

Drive Line

Gearbox

10JSD180+QH50

10 speeds, 10 forwards, 2 reverse gear, manual geabox

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

Medium length flat top cab, single sleeper,   with A/C;

Can be tipped forwardly, with inner A/C and one   sleeper bed

Standard configuration

Air container

Axle

Front axle

MAN 9.5T- drum brake

Rear axle

MAN 16T double reduction pneumatic brake, double   reduction driving axles with inter-wheel & inter-axle differential locks;   Axle ratio 5.92

Tire specification

Tire specification

12.00R20

standard tire,10 tires+1 spare part

Parameter

Economic   speed/maximum speed (km/h)

40～55/75

Max. Gradeability

35(%)

Rear   overhang(mm)

850

Suspension

Front and rear multi leaf springs, (4/4)+ 4   riding bolts

Frame(mm)

850x300（8+7）

Color

Customized

Body dimension(mm)

5600x2300x1500

Body volume(m3)

19.32

Material

Carbon steel plates

Shape

Tin Word format

Lifting method

Front hydraulic lifting system
