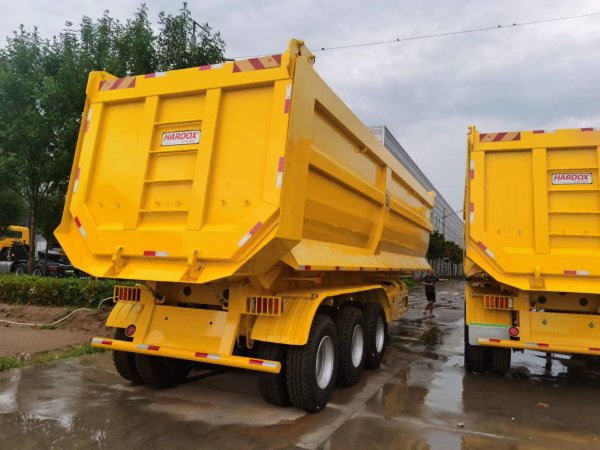

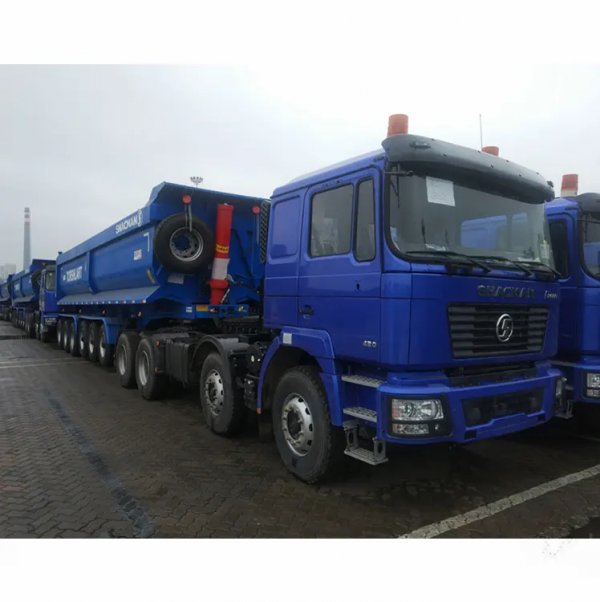

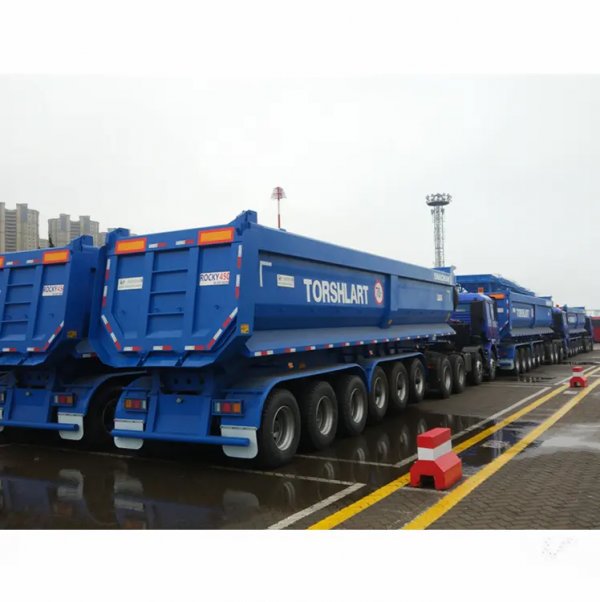

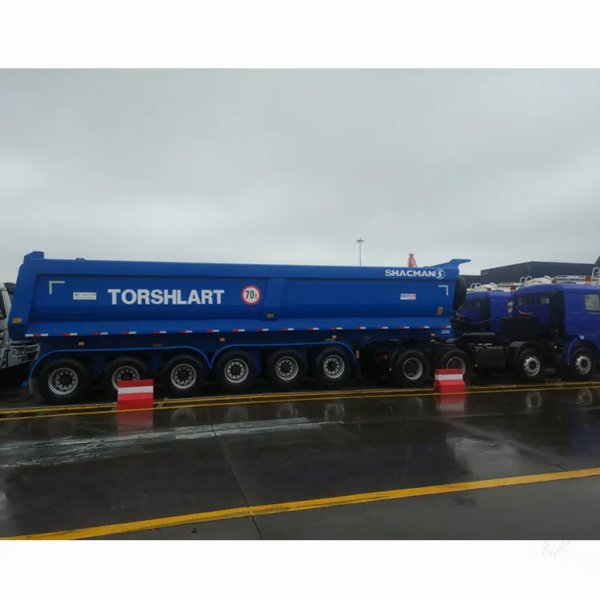

China 30cbm 45cbm 3 Axles 4 Axles U-Shape Dump Truck Trailers
No.: Ma-230625-3
Vehicle Type: Tipper Semi-trailer
Brand Name: KAILAI
Person in charge: Marc Zhou
Cel: 8617664086916
Whatsapp: 8617664086916
E-mail: sales3@chinatruk.cc
FREE GET QUOTE![_20230914234530](res/en/20230914/90bbf1de4ed976d9.jpg)
Details
Items Dump semi trailer
Loading Capacity 40-80 tons
Axle 3-6pieces, 13T/16T FUWA/BPW axle optional
Tyre 12.00R20/ 315/80R22.5/ 12R22.5/ 13R22.5 optional
Dimensions(LxWxH) 9750 to 12000mm x 2500 x 3200mm, optional
Tare weight 10 tons to 12 tons
Rims 8.5-20, 9.0-20
Suspension System Leaf spring suspension / air suspension, optional
Brake System Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam Height 500mm Q345
Chassis upper 14mm, lower 16mm. Mid web 12mm, optional
Dump Box Thickness Bottom 8mm Side 6mm, optional
Hydraulic Cylinder HYVA brand
Kingpin 2' or 3.5' interchangeable
Landing Gear 28 Tons , Two speed manual operation
Electrical System 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box One tool box with a set of standard trailer tools
Spare Tyre Carrier One piece or two pieces
