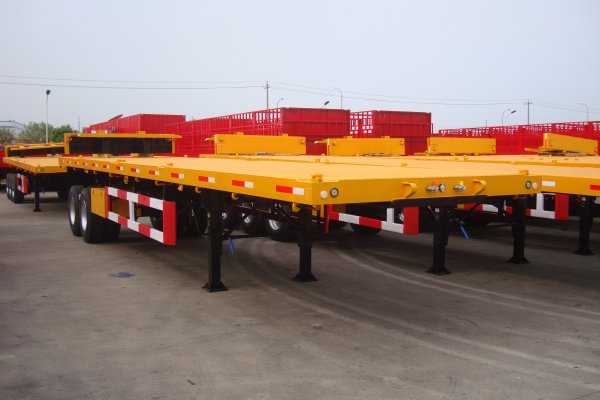

Flat Bed 2 axle Semi Trailer

Specification:

Dimension

(L*W*H/mm) 12400*2500*1500

 Main Beam

☆Heavy duty and extra durability designed, opting for high tensile steel Q345.

☆500mm height; Top flange 16*140mm; Middle flange 6mm; Bottom flange 16*140mm, Side beam 18

Tare Weight: should be within 5800 to 6200kg

Floor Steel 3mm.

Capacity: 40T

King pin ☆JOST brand 2" standard welded style

Landing gear ☆FUWA 19"heavy duty landing gear

Axle ☆Two pcs FUWA brand 13T axle,10 hole.

Suspension ☆American system 90*16mm, 10 pcs

Tire ( Wheel Rim)

☆9 units of 10.00R20 Steel Tire, include one spare tyre.

☆9 units of 7.5-20 Wheel rim

Twist Lock ☆12 nos of ISO twist lock for 2*20ft; 1*40ft container, the central locks can be laid down.

Brake

☆One unit of WABCO RE 6 relay valve; two units of T30/30 Spring brake chamber; two units of T30

Spring brake chamber.

☆One units of reliable local brand 45L air tank.

Electric: ☆International standard 24v circuit 7-pin ISO socket; Tail lamp with turn signal, brake light & reflector,

side lamp etc. One set 6-core standard Cable.

Painting:

☆Sand blasting processing clean rust

☆1 coat of anticorrosive primer, 2 coats of finish urethane paint

☆color: Yellow

Other: ☆One spare tire holder;

☆Distant from King pin to the front part: 450mm

Packing ☆Cut rear part of trailer about & load it in 40HQ container, fit it by screw in destination.

☆One container carries two units.

Payment Term: T/T 30% of total value as advance & 70% by LC at delivery time.
