Function

Cement transport

Overall dimension (mm)

10,200 * 2,550 * 3,995

Maximum volume (CBM)

45

Compartment

1

Tank body material

3mm

End plate material

3.5mm

Manhole cover

2 sets, standard

Relief valve

1 set, standard

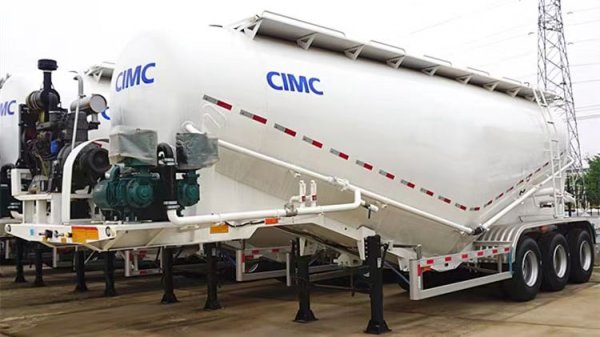

Air compressor

BOHAI brand, HYCW-12/2, 12m³, twin cylinder

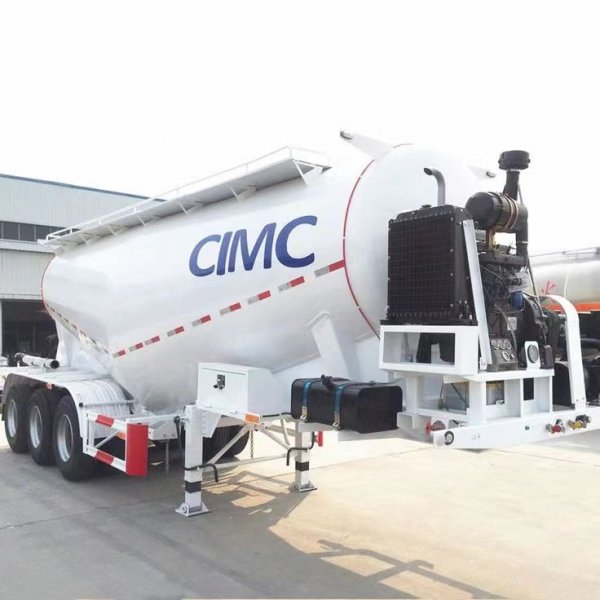

Diesel engine

WEICHAI TIANHE brand, 4102,

Axle

Standard 13 tons * 3 pcs

Suspension system

Mechanical suspension 90/10/13

Tire

LINGLONG brand, 12R22.5 * 12+1 spare tire

Rim

9.0 * 12+1 spare rim

Central pivot

90mm

Landing gear

Standard single acting 28 tonnes

Braking system

Four double air rooms and two singles

Engine

1 pcs

Air compressor

1 pcs

Electrical system

Voltage: 24v

Socket: 7-way (7-wire harness)

Rear light with indicator, brake light and reflector, side light

A standard 6-conductor cable

Side guard

Standard

Paint color / Logo

Custom (Polyester paint)

Packaging

Waxing before shipment
