3 Axles Skeleton 40ft Container Semitrailer for sale
No.: Kevin-A001
Vehicle Type: Container Semi-trailer
Brand Name: KAILAI
Person in charge: Kevin Jiang
Cel: 0086 176 6971 7518
Whatsapp: 8617669717518
E-mail: sales17@chinatruck.cc
FREE GET QUOTE
Details
2 Axles Skeleton 20 foot Container Semitrailer
Tare Weight | 3400kg |
Payload | 35000kg |
Total Weight | 38400kg |
Overall Length | 7200mm |
Overall Width | 2480mm |
Overall Height | 1570mm |
Wheel track | 1840mm |
Wheelbase | 4450+1310mm |
_ 2 Axle Container Semitrailer Skeletal Specification:
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Axle | Two units L1 brand 13T axle |
Suspension | L1 brand 2-axle mechanical suspension |
Leaf Spring | Four sets reliable local brand, 8-piece leaf spring, 16*90mm |
King Pin | One unit 2” bolt-in kingpin, standard |

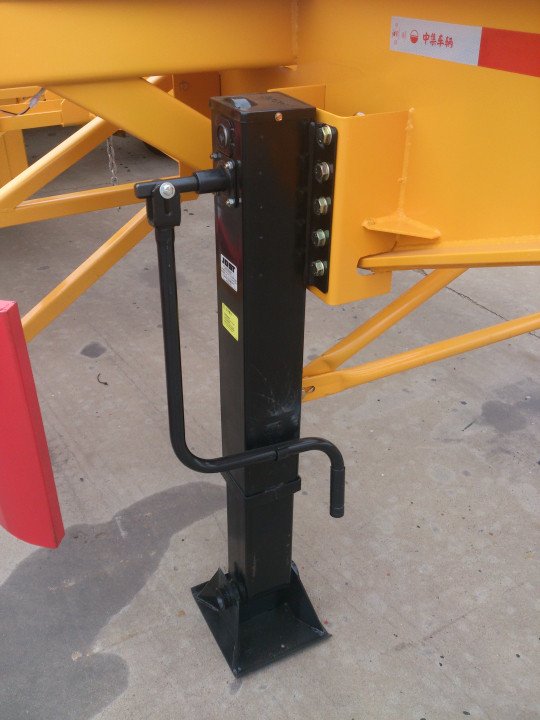

Landing Gear | Two-speed, manual operation, heavy duty SAF-holland 19” linked landing gear |
Wheel Rim | 8 units 8.25-22.5 rim |
Tire | 8 units 11R22.5 tire |

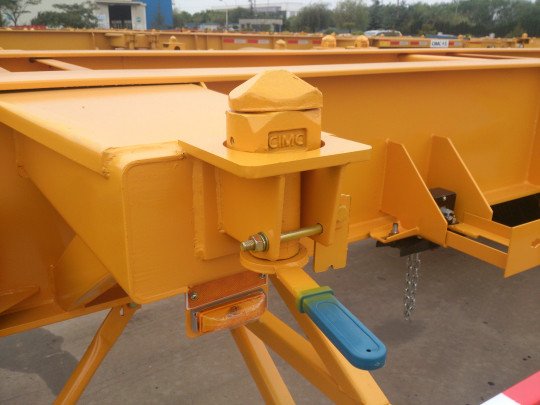

Twist Lock | 4nos. |
Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
Pneumatic Braking System | One units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector. |
Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of DAFA(brand) 6-core standard Cable. |
Painting | Sand blasting before painting; one coats of primer, anti corrosion; |
two coat of finish painting; color advised by client. | |
Accessory | One box with a set of standard trailer tool |
_ Terms and Conditions :
1. This quotation will serve as base of our later P/I or contract. |
2. Lead Time: **days after downpayment reaches the seller(adjusted by the quantity and model). |
3. Payment Terms: T/T 30% before SOP(Start Of Production), and T/T 70% balance before shipment. |
4.Expiry date: This quotation valid for one week only. |
5.This offer is subjected to seller's final confirmation . |
7. Quality level: excellent quality for international market, made in China, WONDEE brand |
8. Certificate: ISO9001; TS16949; COC; PVOC; CIQ; SONCAP; BV; C/O; FORME. |
9. Area suitable: America,Europe,Asia |
_ Semi Trailer Features:
1.Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
2. Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
3.Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
4.advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
5. frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
6. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
7.Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
8.frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.
9.Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.
_ More Information:
* We supply 20 feet and 40 feet Flatbed Semi-Trailer.
* The semi-trailer could beFlatbed and skeletal, 2 axle and 3 axle according to different demands.
* Our factory will carry on technological transformation to the products constantly, adopt the new technology.
* The high quality material perfects the function of use of the products and product quality constantly.
* Satisfy the masses of customers' request with the hospitable service and sincere management.
