General

Overall Dimension

Unit dimension: 12500mm*2490mm*1650mm

Three units bundle together : 12500mm*2490mm*3950mm

Total weight

67230 kg

Pay Load

40480 kg

Curb weight

6750 kg

Wheel base

6800+1305+1305mm

Forward/ Rear overhang

1690/ 2030 mm

Rear wheel track

1840/ 1840/ 1840mm

Under frame

Beam and frame

500*16*16*6mm

I shape, Mild Alloy (16Mn) by Automatic submerged arc welding

Cross beam

Mild Alloy Q235

Kingpin

Size: 90#( 3.5’’)

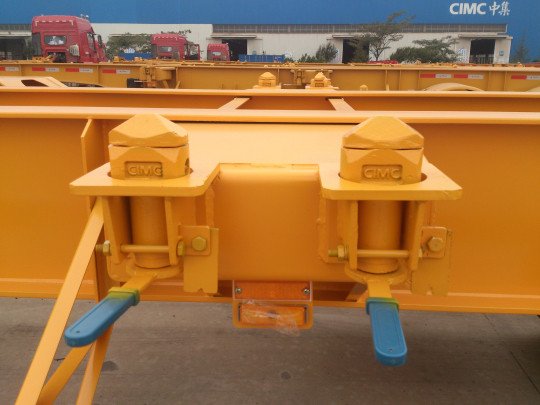

Twist locks

12 lock positions with 8 twist locks, for one 40GP or two 20GP

Flatebed floor

Checkered sheet, thickness 2.5mm

Running gear

Axle

CNHTC STR axle, 13ton capacity

Suspension

Dual-axle 11 pieces leaf spring suspension

Tire

11.00R20 radial tire, 10 units

Brakes

Dual lines pneumatic brake system, air chamber, parking brake

Electric and paint

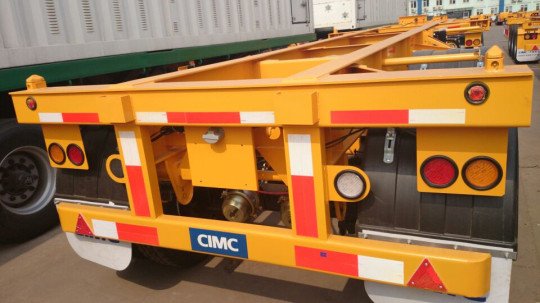

Light& reflectors

Rear light, rear reflector, turn indicative light, side reflector

wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Spare parts

1 Mtool box( box only)

Paint

Yellow, red, green or color as you like

Packing and shipment

Packaging type

Bundle together

Manufacture

·              Established Year: 1987

·              No. of Staffs: 501 - 1000 People

·              ProductRange: Dump truck, concrete mixer truck, tow truck, tank truck and semi-trailer

·              Production line: 6

·              Factory size: 100000 square meters

It is one of the earliest enterprises specialized in manufacturing special vehicles. Owning more than 700 sets of special equipments, the annual output of all kinds of semi-trailers and special vehicles reaches 10000 and all kinds of axles more than 10000.
