Comprehensive interpretation of SHACMAN F3000 dump trucks!

21 May 2024

European MAN technology cab adopts European advanceo welding technology,

including Germany KUKA and Sweden ABB robot automatic welding

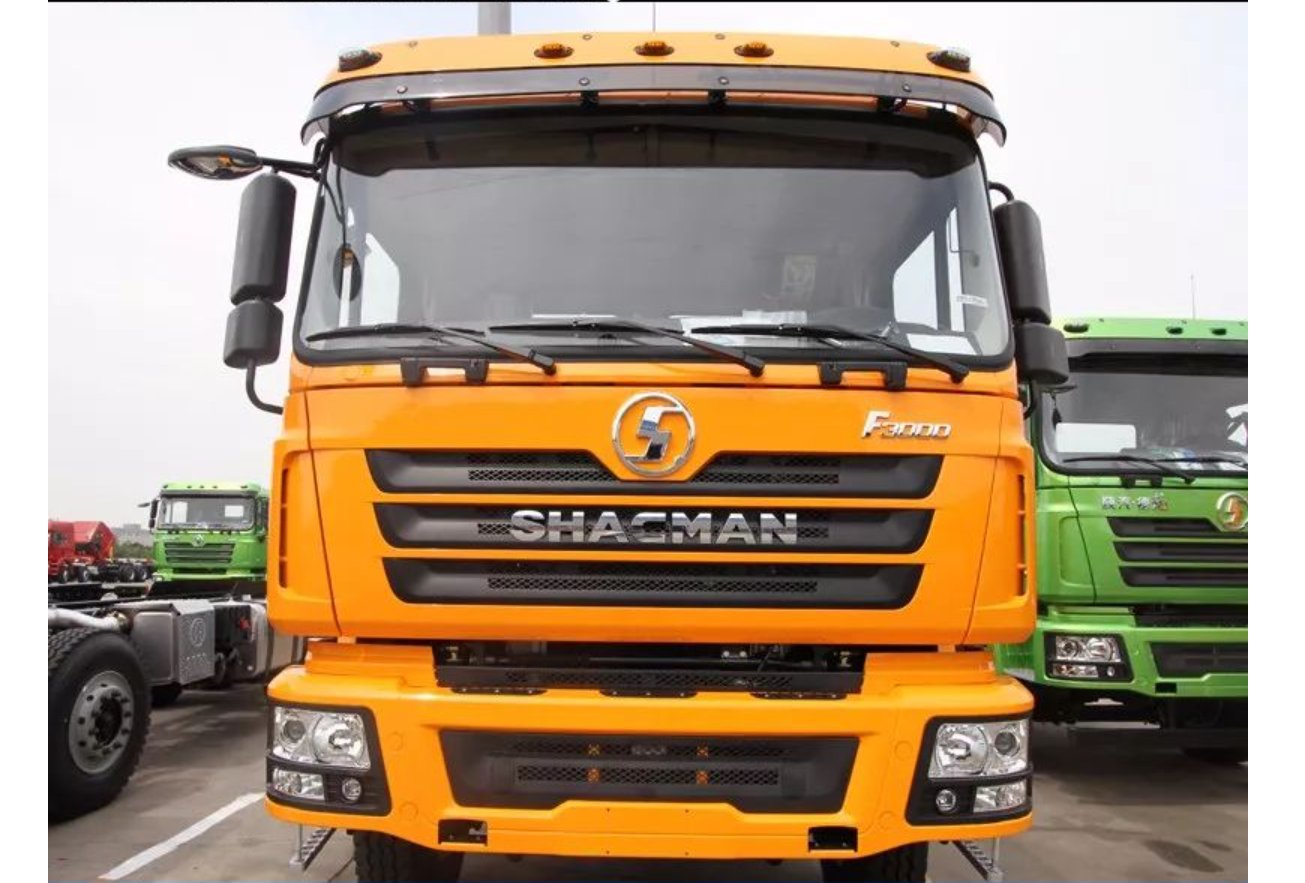

The front face of the cab present a family facial makeup style with V design concept

Metal bumper with bumper anti skid pedals, and two hooks, all ensures cab maintenance is more convenient

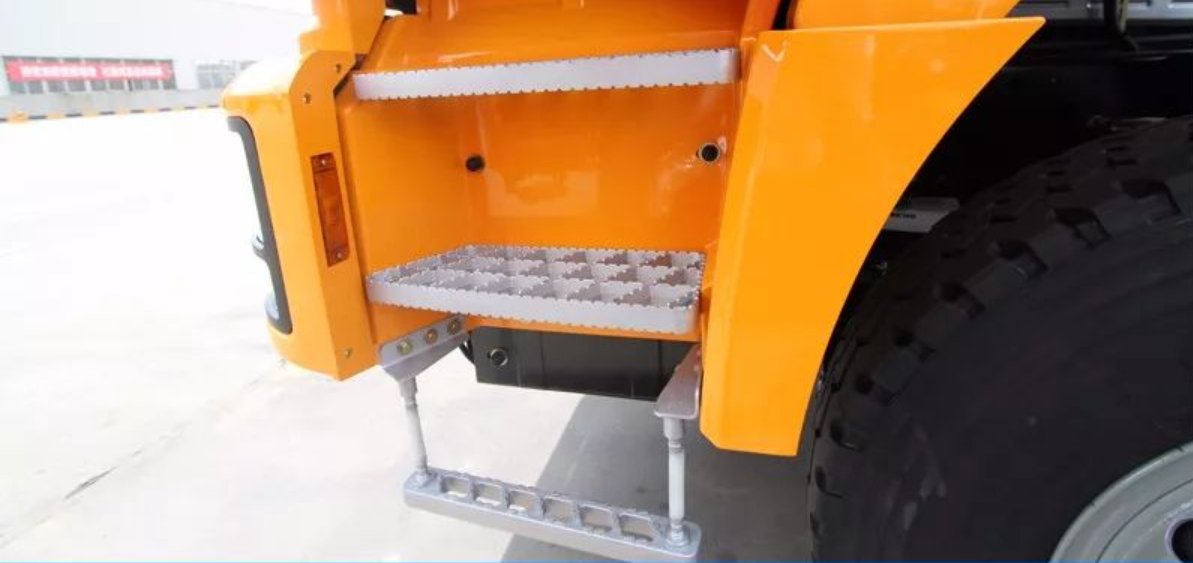

The three step on the vehicle pedal with pedal lamp

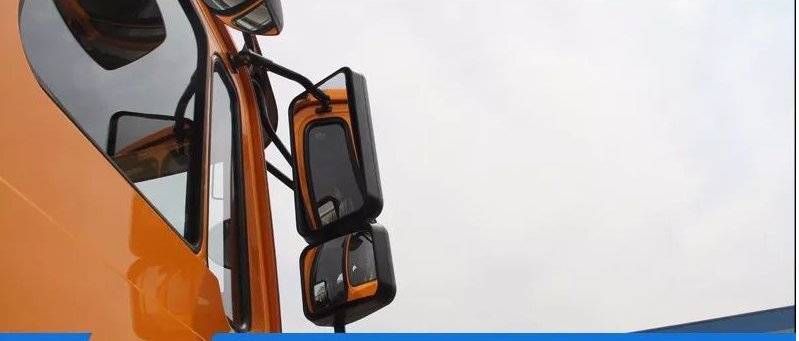

Electric heated rearview mirror

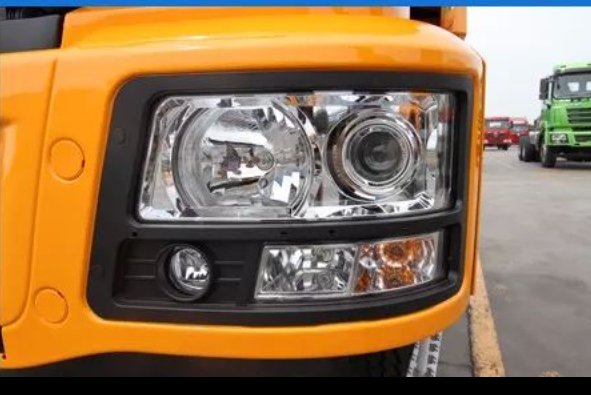

The combination headlampadopts high precision H7halogen filament to ensurethat there is no dark area onthe road

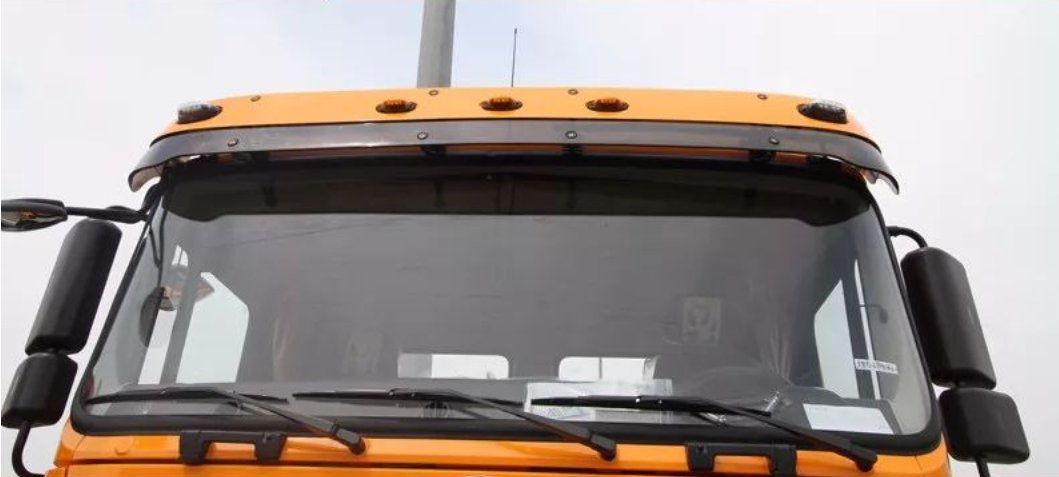

Split sun visor

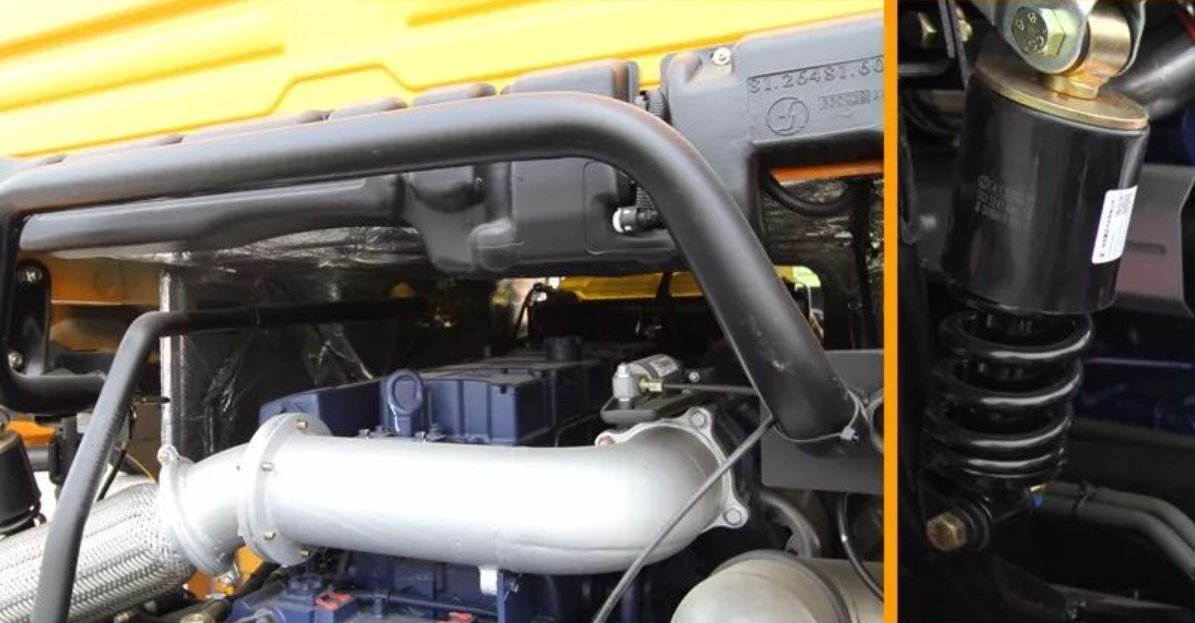

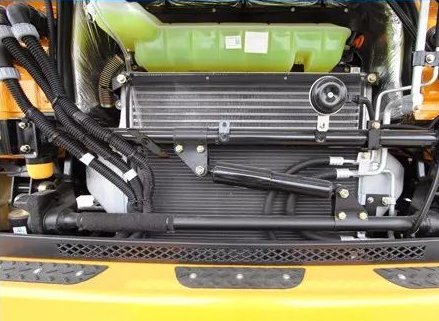

Cooling system adopts MANtechnology, and the airchamberis arranged symme.

trically, the length of theintake pipe of the intercooleris reduced,the air resistanceis small, the pipeline layout iscompact,and the ground clearanceis higher

American VSTEON interior with natural anion fiber fabrics; sedan

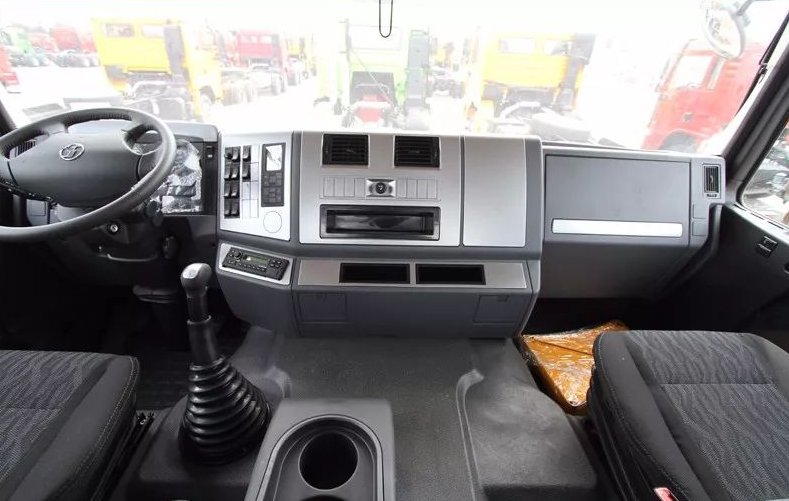

dashboard with new VDO instrument, MP3 transceiver and other functional switch

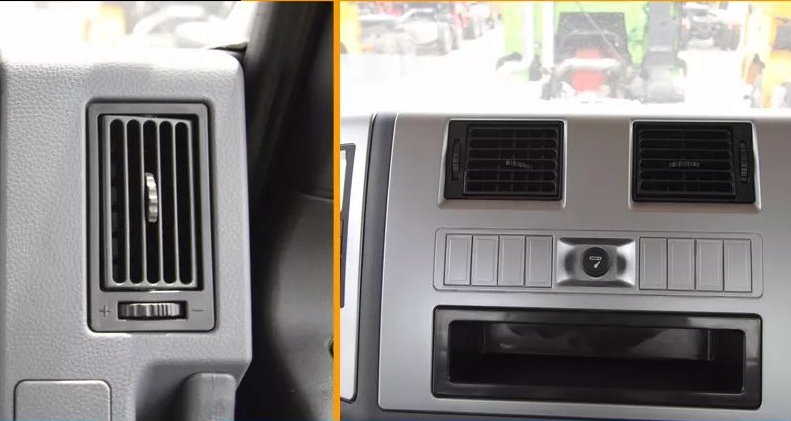

Automatic air conditioning controller,easy to operate

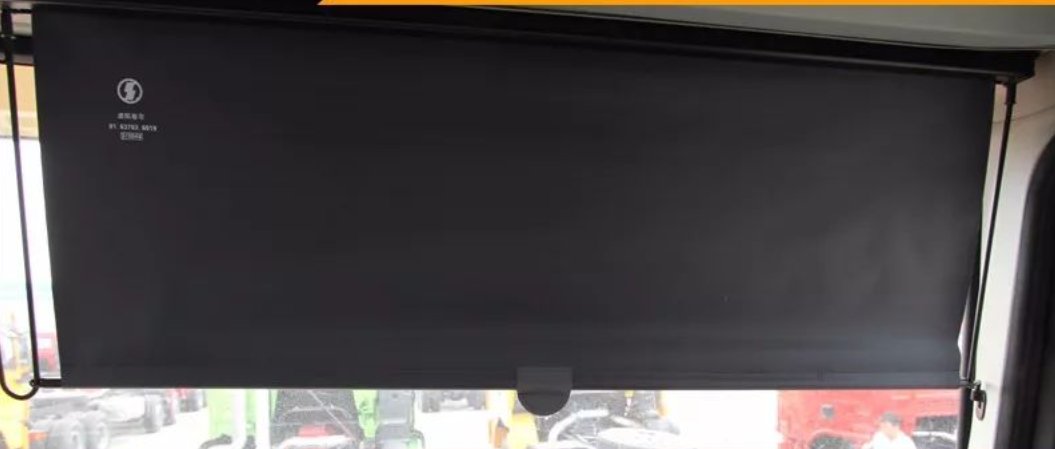

DC visor with good shading effect

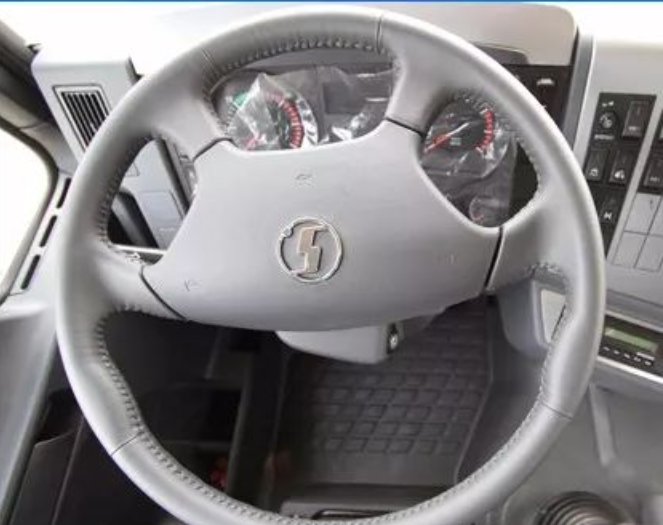

Four-spoke steering wheeleasy to control with goodman-machine performance

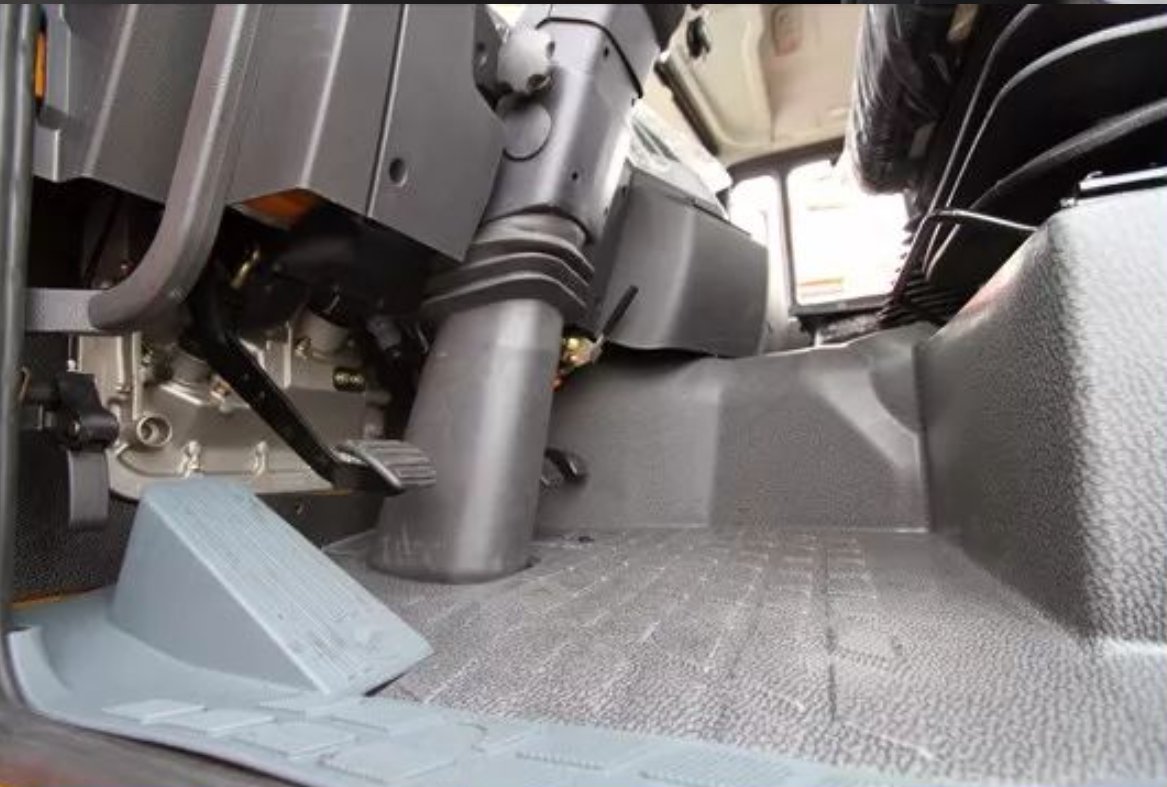

Floor mat:PVClayer +PU foamedlayer +PVC sheetingwith better heat-insulating property;The large spacefoot plate isconvenient to rest

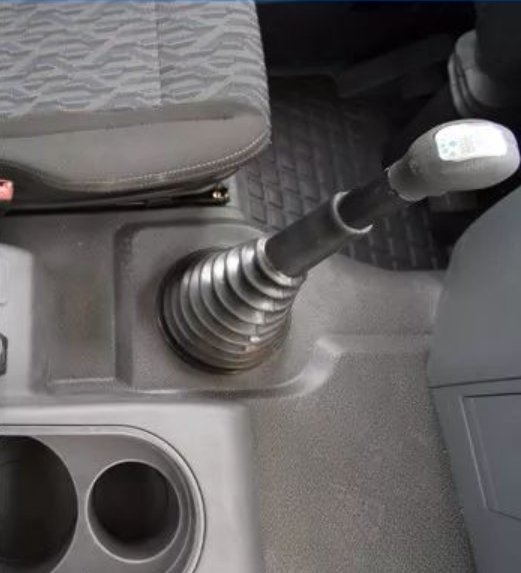

Telescopic shaft gearshift: flexibleconnection can effectively absorbVibration from chassis and cab,avoidrigid loss to improve cab tightness

Four point air suspension + stabilizer bar

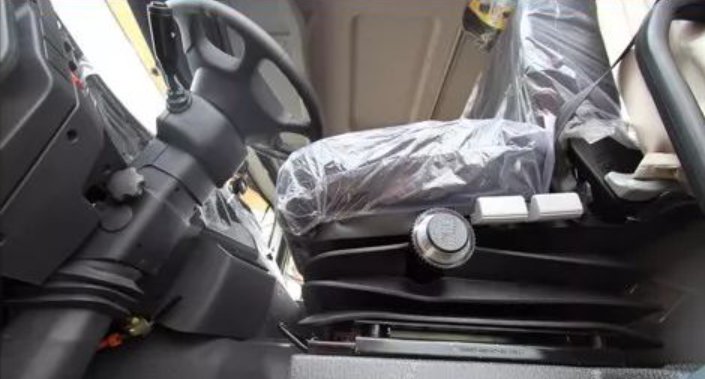

Hydraulic shock-absorbingseat is suitable for all kindsof bad working conditionsand is comfortable and safe

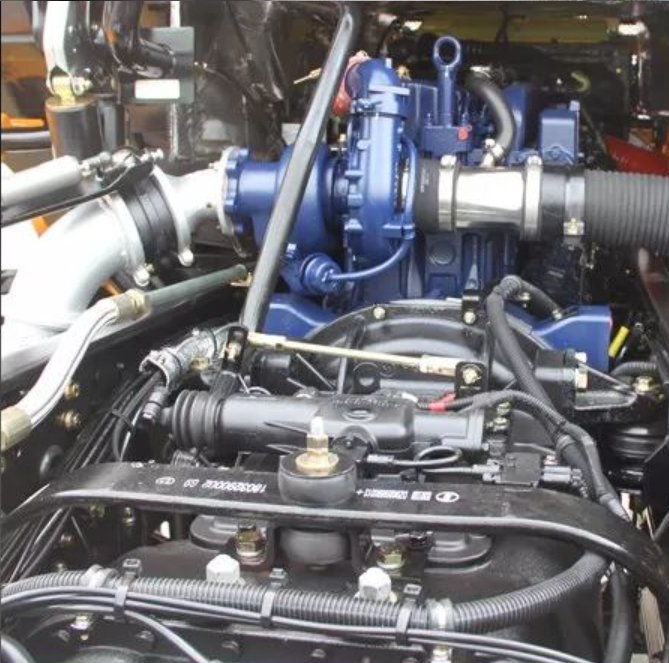

Weichai WP10.340E32engine;FAST12JSD200Tgear transmission

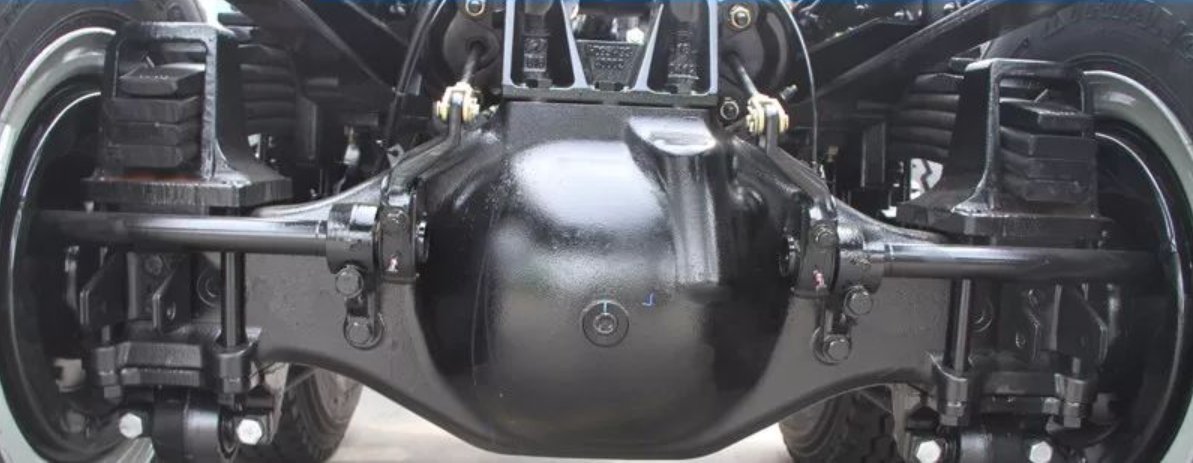

Hande 16T Doubledeceleration rear axlewith strong carryingcapacity

Hande 16T Double deceleration rear axle with strong carrying capacity

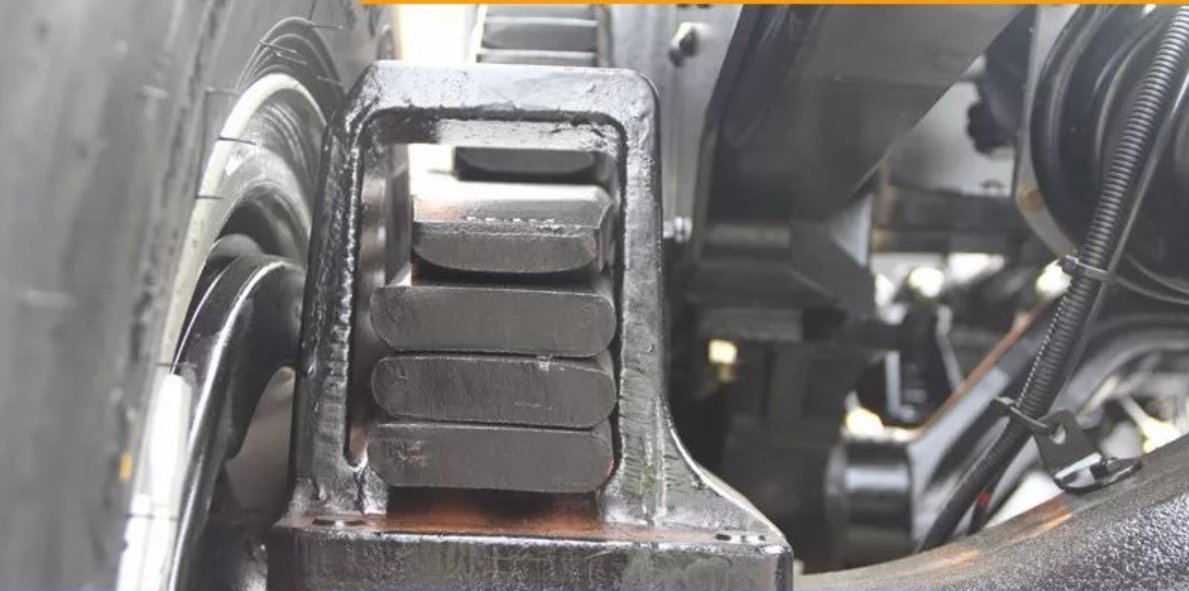

4 U-bolts with strong carrying capacity4*25+8*22mm)leaf spring(1650(12*25)*90)Maximum carryingcapacity is 25.7T

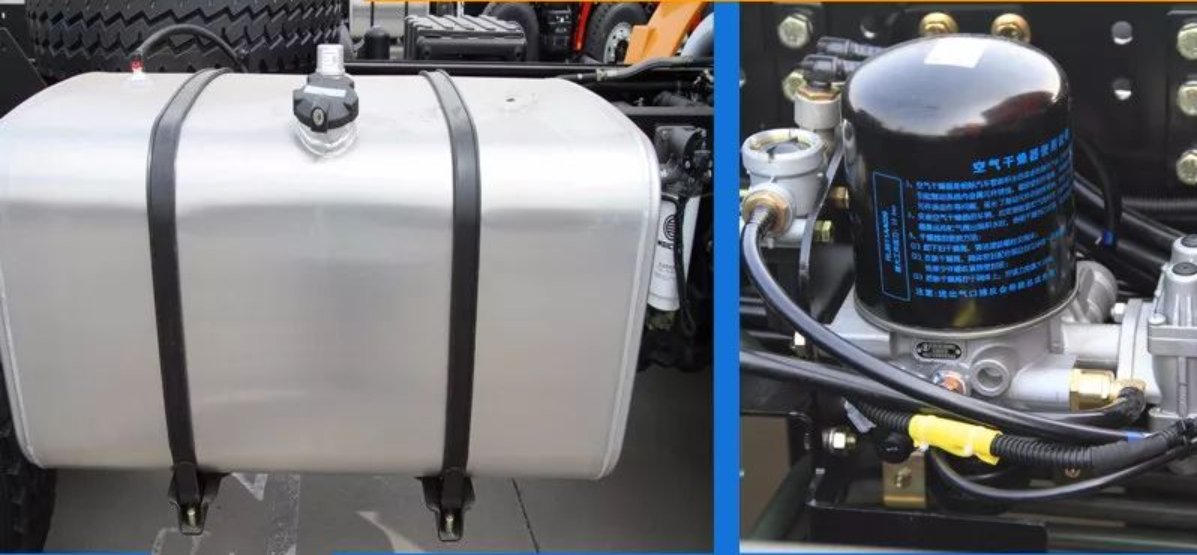

400L aluminum fuel tank

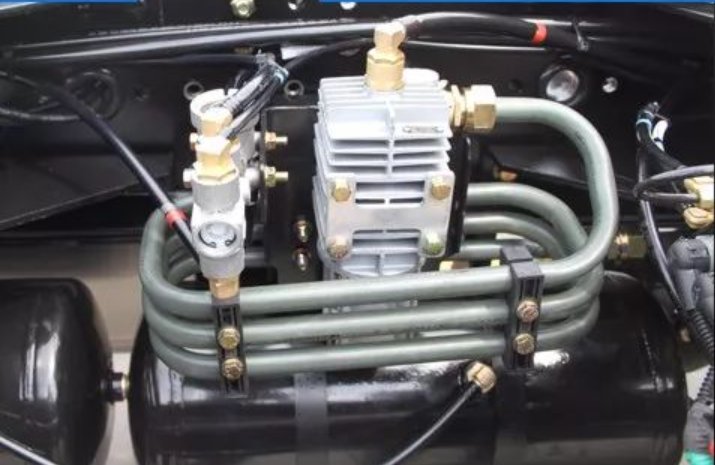

Hendrickson oil-water separatorair drying tank.WEVB auxiliary+braking, braking effect increasedby 55% with good security andhigh reliability

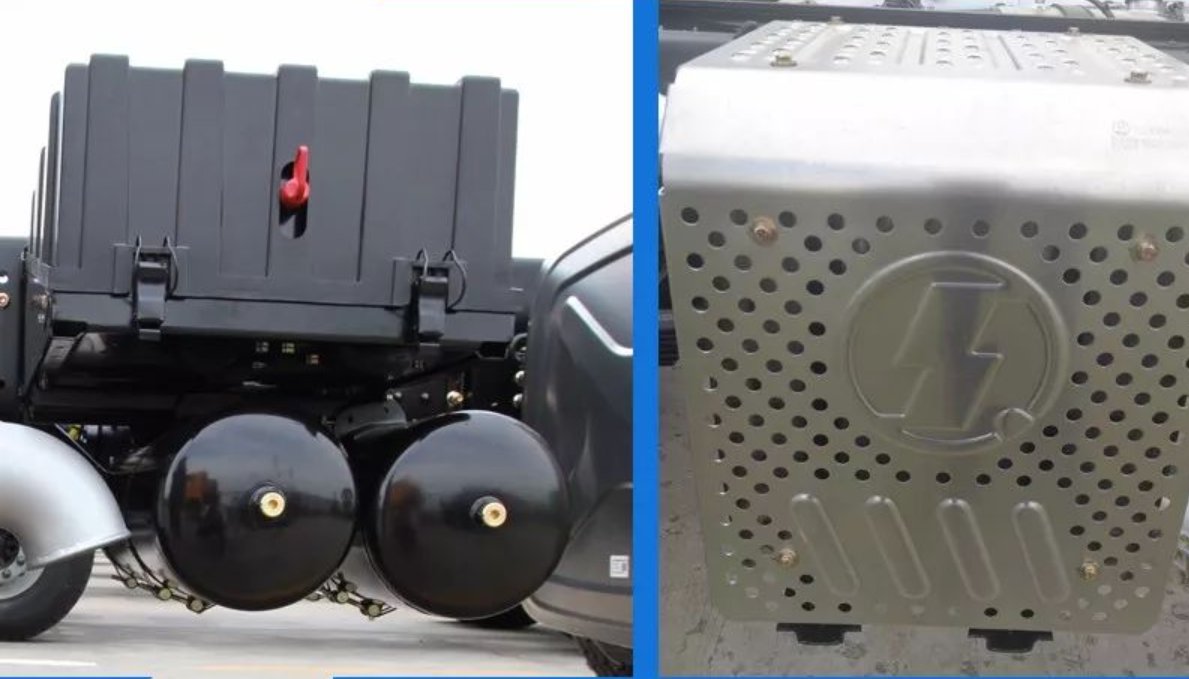

165Ah maintenance free battery has the advantage of high

performance,long life,no pollution

The square muffler improves the clearance of the ground, and the

layout is more compact

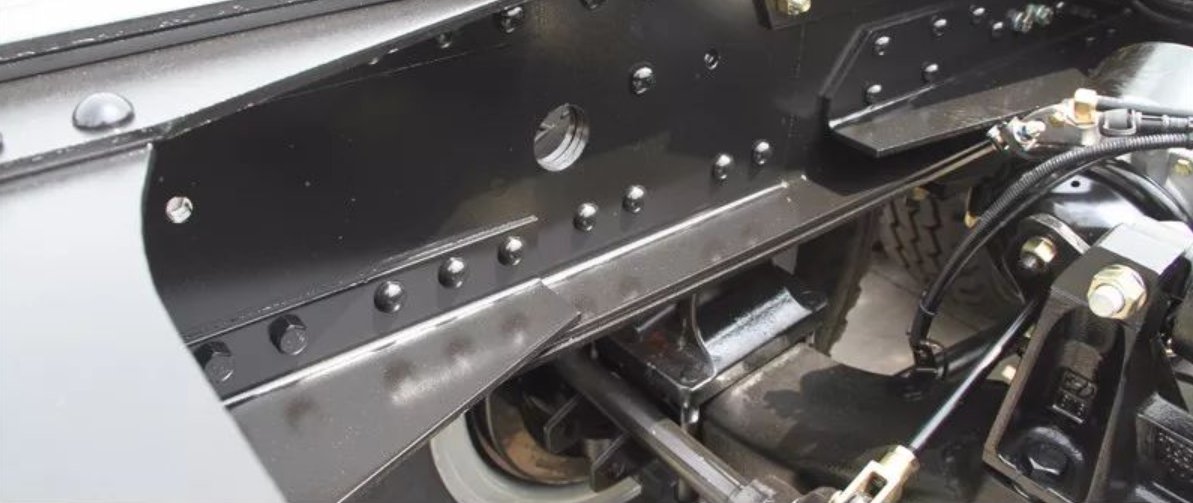

Double-layerframe(850x300(8+7)

partially reinforced three

layers,stronger carrying capacity

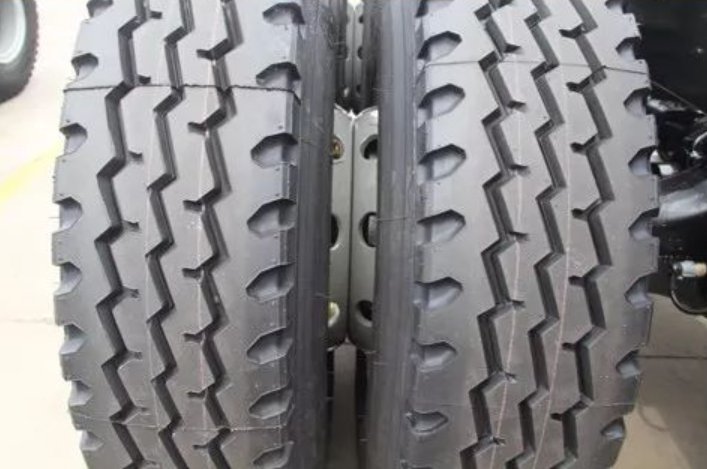

18 level mixed patterntires(12.00R20),adaptto various road conditions

The wheel rim has alargeoffset(183mm)and arimthickness of 18mm,whichreduces the risk of doubletire abrasion

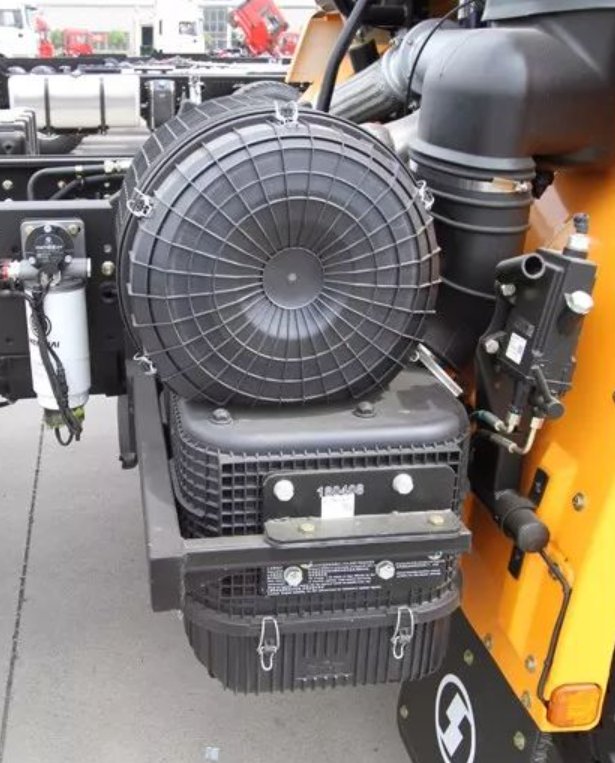

Oil bath air cleaner has good filtra-tion effect under bad conditions withbetter engine combustion efficiencyand engine life

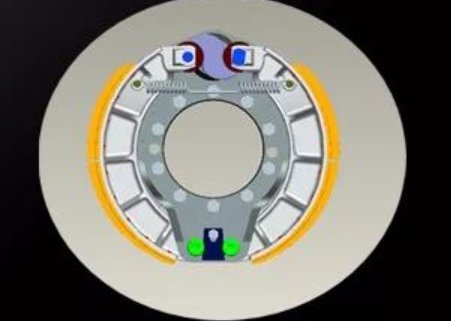

Widened variable cross-section brake frictionplate with high-reliability
