Model name

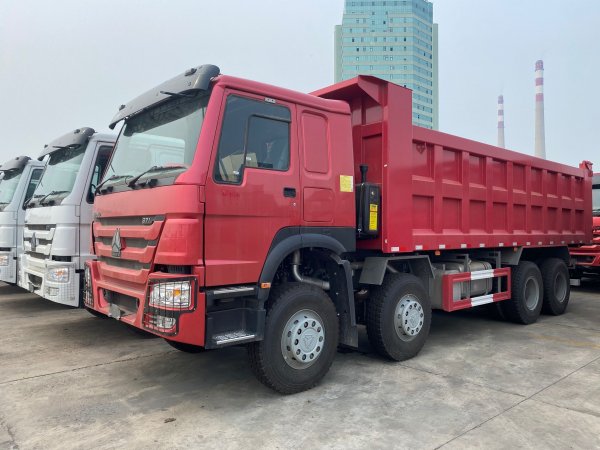

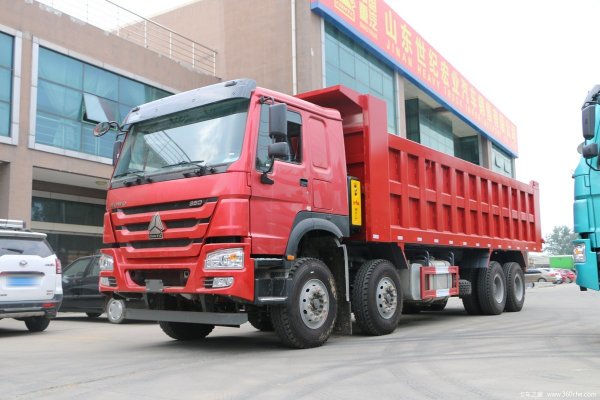

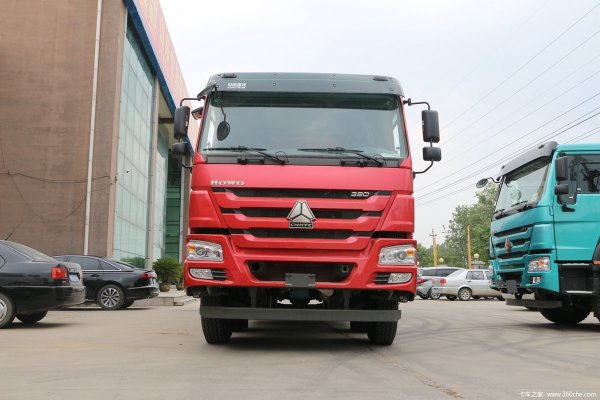

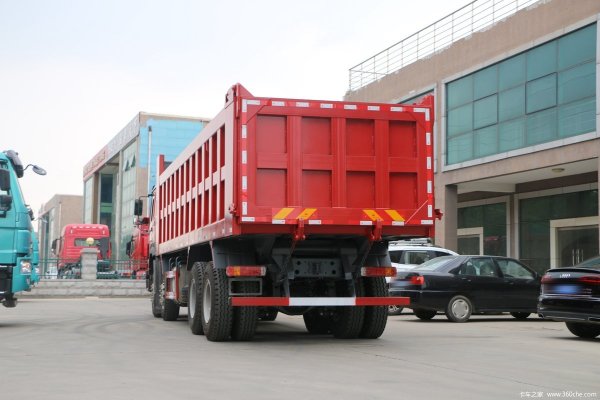

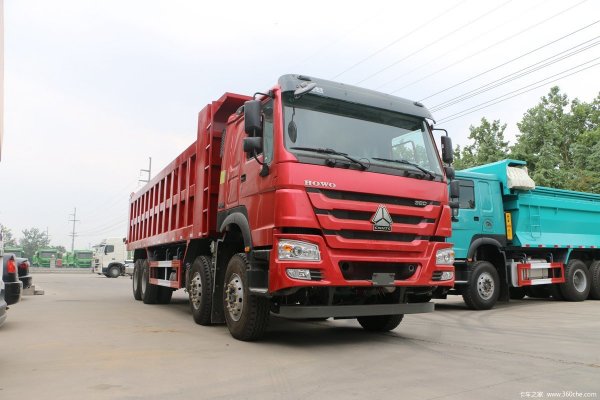

Howo-7 Dump Truck

Applicable type

Engineering vehicles

Driving type

RHD

Traction type

8×4

Number of doors

2

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.15500

Gross Combination Weight(kg)

Approx.55000

Dimensions

Wheelbase(mm)

1800+3500+1400

Overall dimension(mm)

Approx. 10245*2496*3450

Engine

Engine model

WP10.380E22 380HP, WEICHAI Engine

Emission standard

Euro 2

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

Straight-6 cylinders

Maximum torque N.m/r/min

1350/1300-1600

Bore x Stroke

126x130mm

Displacement(L)

9.726 / Diesel

Max. output (kw)

273kW

Fuel Tanker（L）

300 aluminum fuel tank

Drive Line

Gearbox

HW19710+HW50

10 forwards, 2 reverse gear, manual geabox

Steering

Bosch steering, Power steering,

Brake

Dual circuit pneumatic braking, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

HW76 cab;

Can be tipped forwardly, with inner A/C and one sleeper bed

Number of passengers/seats

2

Standard configuration

Air container

Axle

Front axle

VGD95-drum brake

Rear axle

HC16-double reduction pneumatic brake, double reduction driving   axles with inter-wheel & inter-axle differential locks

Axle ratio 5.451

Tire

Tire specification

12.00R20

Standard tire,12 tires+1 spare part

Parameter

Economic   speed/maximum speed (km/h)

40～55/90

Max. Gradeability

35(%)

Rear   overhang(mm)

850

Suspension

Front and rear multi leaf springs (11/11/12)

Frame(mm)

Double decker frame (8+8/300)

Bumper

High mounted bumper (all metal)

Color

Customized

Other

Reverse buzzer, off car start stop switch,   Bosch steering gear, rear towing hook, engineering version intake system (oil   filter), fire extinguisher, intercooler protection device

Dimension(mm)

7300x2300x1500

Box volume(m3)

25.2

Material

Carbon steel plates

Style

Tin word format

Thickness

Bottom 8mm sides 6mm

Lifting method

Domestic front lifting

Door opening direction

Rear door opening
