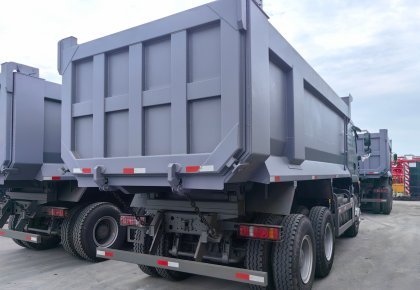

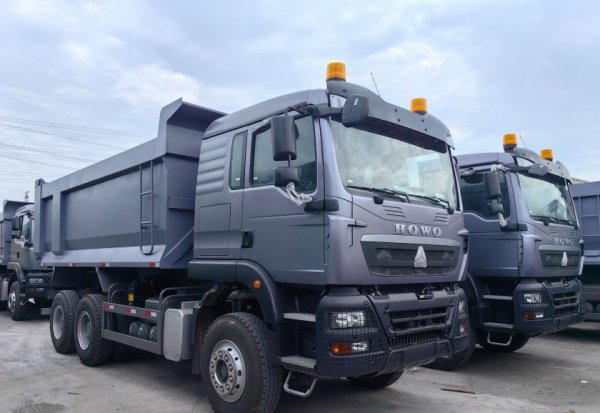

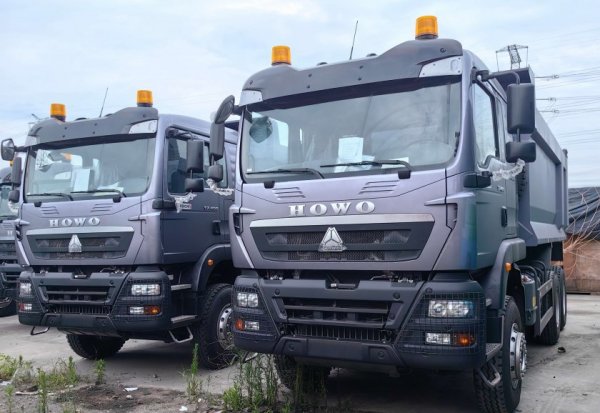

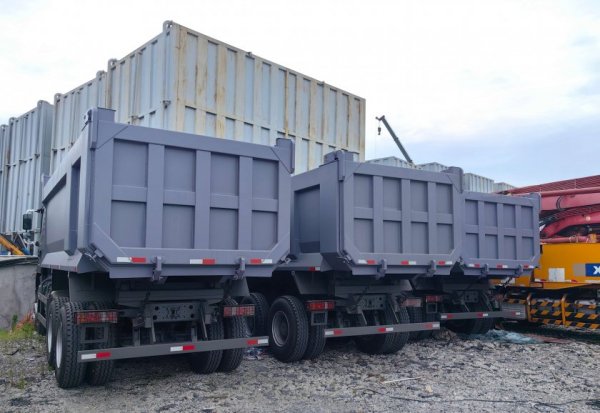

HOWO TX 6×4 380HP Euro 2 Dump Truck for Sale

No.:

Vehicle Type: Dump Truck

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: William Du

Cel: 8618669778647

Whatsapp: 8618669778647

E-mail: sales22@chinatruck.cc

FREE GET QUOTE
QQ图片20240619133936

Details

Name

New HOWO TX 6×4 Dump Truck

Size (mm)

8700 x 2550 x 3500

Cab

TX flat roof cabin with A/C

Tires

12.00R2010+1pcs

Axle

VGD95 front axleMCP16ZG rear axle

Engine

Model

WP10.380E22, Weichai ,Euro2 , Diesel


Engine power

280KW (380HP) @ 2200rpm


Max torque

1600 N.m @ 1500-1800rpm


Air intake type

turbo-charge and inter-cool


Alignment of cylinders

6 cylinders in line


Fuel injection type

Direct injection


Compression ratio

17: 1


Bore * Stroke

126x130mm

Gearbox

HW19710 gearbox with HW50 power take-off, 10 forward speeds + 2 reverse speeds

Steering

BOSCH

Fuel tank

400L fuel tank

Suspension

Front and rear reinforced multi-leaf springs (11/11/12)

Main beam

Double layer frame (8+8/300)

Dumper box

5600 x 2550 x 3500mm, bottom plate thickness is 8mm, side plate thickness is 6mm.

Front lifting
