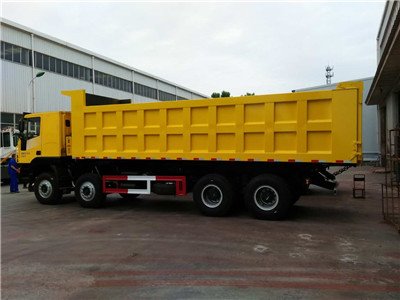

Brand :IVECO_HONGYAN （8*4）

Type :Dump Truck

(Drive forms 8x4): LHD

Appearance Dimension：Length (mm):9845

Appearance Dimension：Width(mm):2500

Appearance Dimension：Height (mm):3510

Engine:CURSOR-9 380HP,EURO-3

Gear Box:12JSD180T FROM FULLER technology

Steering:ZF technology full hydraulic power assisted

Clutch:420mm type single plate power boosted.

CAB:IVECO-STRALIS CABIN

Kerb Weight (kg):14930

Front axle load (kg):6500

Rear axle load (kg):full cast reinforcement double reduce rear axle, no welding. 16T

Fuel type:Diesel

Fuel tank capacity:400L

Exhaust standard:Euro 3

Number of axle:4

Wheel base (mm):1800+3275+1400mm

Number of tires :13unints

Type of tire:12.00R20  Radial tire

Longitudinal beam :317mm Double 8mm+8mm,

lift cylinder system

Hyva tipping system（Holland technology） front tipping

Dimensions of lorry body :7000*2300*1500（mm）

Thickness of body steel:Floor 8 mm side 6mm
