KAILAI 3 Axles 40ft Container Flatbed Trailer for Sale
No.:
Vehicle Type: Container Semi-trailer
Brand Name: KAILAI
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
Feel free to send enquiry to us, we will recommend suitable style according to your requirements!

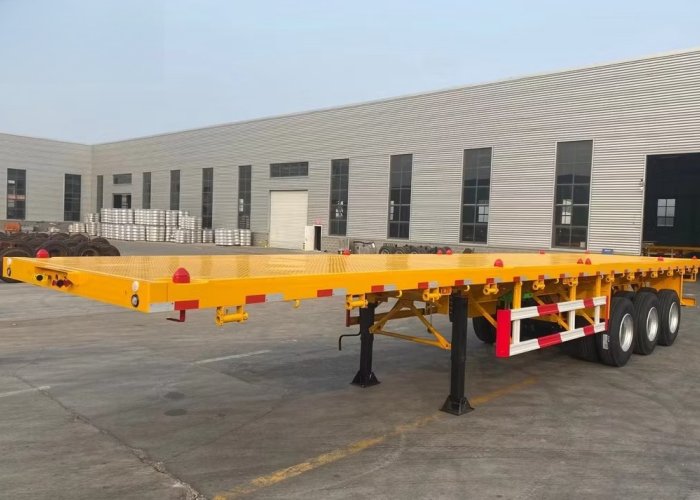

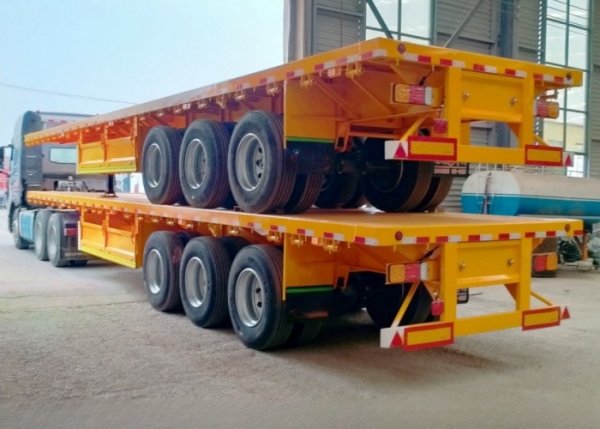

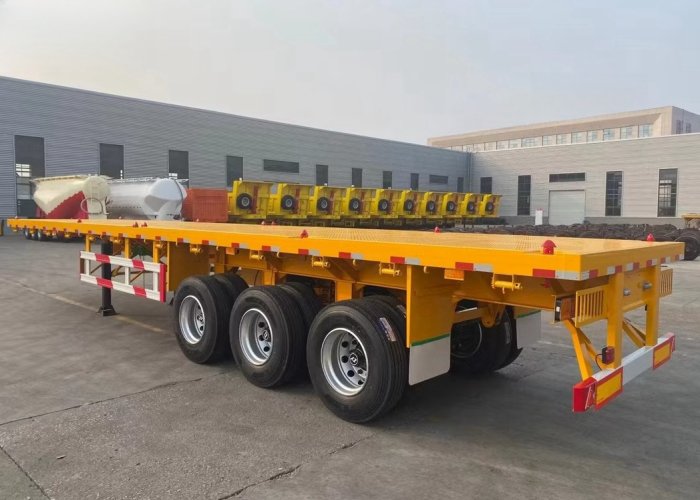

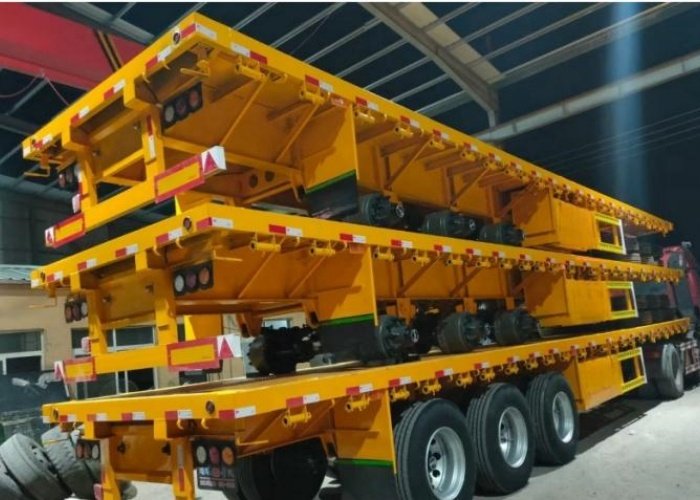

Kailai 3 Axles 40ft Container Flatbed Trailer 30t 40t Payload Logistic Application Semi Trailer
| Overall Size | 7000*2550*1550mm | 12500*2550*1550mm |
| Axles | 2 Axles | 2 Axles/3 Axles /4 Axles |
| Unit axle capacity | 13 or 16 Tons | 13 or 16Tons |
| Payload | 20-40 Tons | 20-80 Tons |
| Tires | 12R22.5*8pcs(other size optional) | 12R22.5*8/12/16pcs(other size optional) |
| Twist Locks | 4pcs | 12pcs |
| Function | Transport 20ft container or cargo | Transport 1*40ft/2*20ft Container or cargo |
| Material | Carbon steel | |
| Main beam | Height 500mm,top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm | |
| Platform | 3mm diamond plate | |
| King pin | 50#(2")/90#(3.5") | |
| Landing gear | 28 Ton two speed | |
| Suspension system | Mechanical suspension or air suspension | |
| Braking system | Dual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank | |
| Spare tire carrier | 1 standard | |

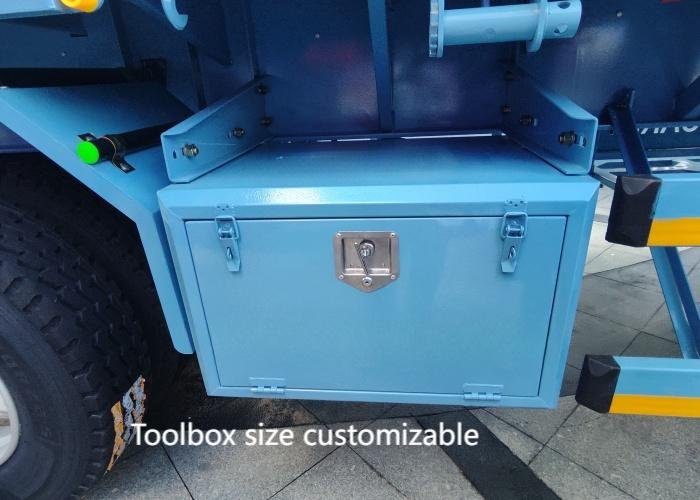

| Tool Box | 1 Standard | |
| Electrical system | Voltage: 24v | |
| Socket: 7-way (7-wire harness) | ||
| Rear light with indicator, brake light and reflector, side light | ||
| Color | Any color will be available | |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats | |
