Model name

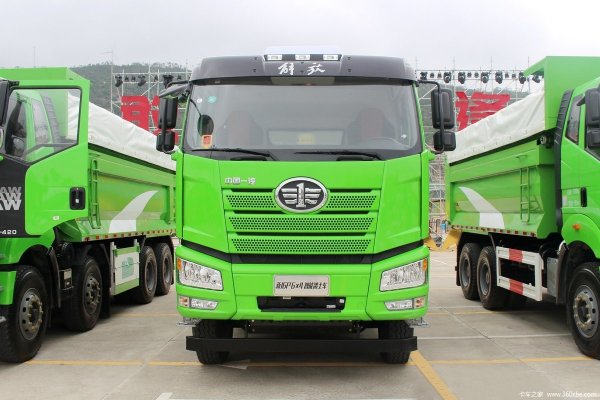

FAW   J6P dump   truck

Model

CA3250P66K24L2T1E

Driving type

Left hand drive

Traction type

6×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.12300

Dimensions

Wheelbase(mm)

3800+1350

Overall dimension(mm)

Approx. 8850×2495×3450

Engine

Engine model

CA6DM2-39E3F(EGR)

 390HP

Emission standard

Euro 2

Engine type

4 stroke water-cooled,   inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

11.04 / Diesel

Max. output (kw)

290

Fuel Tanker（L）

400 steel fuel tank

Drive   Line

Gearbox

CA10TAX190M flange power take-off

10 speeds, 10 forwards, 2   reverse gear, manual geabox

Maximum input torque

1900N.m

Steering

Power steering

Brake

Air brake, engine exhaust   brake

Clutch

430 diaphragm

Cab

Cabin

New J6P African version   fully floating flat top row half cab,

Mechanical damping seat,

Can be tipped forwardly,   with inner A/C and one sleeper bed

Standard configuration

Two point spiral spring   suspension at the rear of the cab

Metal bumper

Axle

Front axle

2020 front axle

Rear axle

Cast iron improved wheel   reduction axle

double reduction pneumatic   brake, double reduction driving axles with inter-wheel & inter-axle   differential locks

axle ratio

5.921

Tire   specification

Tire specification

12.00R20

standard tire,10 tires+1   spare part

Parameter

Economic speed/maximum speed(km/h)

40～55/75

Max. Gradeability

35(%)

Rear overhang(mm)

1000

Suspension

Leaf spring, 12/12

Frame(mm)

300×80×(8+8)

Color

Customized

Body dimension(mm)

5600x2300x1500

Body volume(m3)

20

Material

Carbon steel plates

Lifting method

Front hydraulic lifting   system
