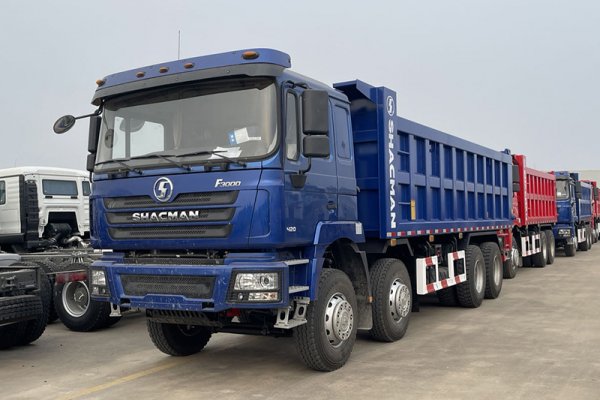

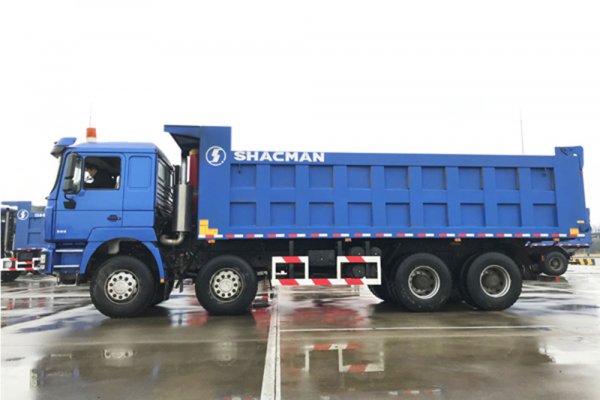

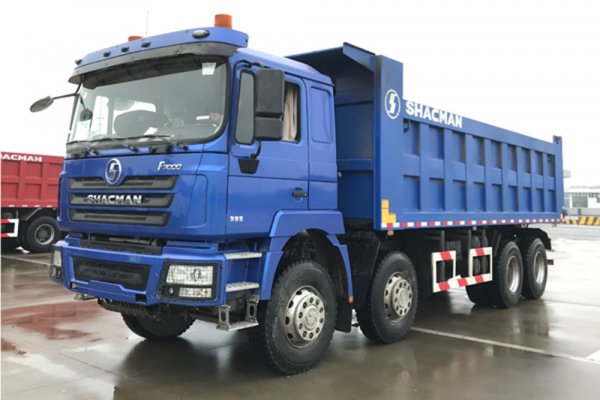

Nouveaux camions à benne basculante Shacman F3000 8x4 30 tonnes
No.: Jim-114
Vehicle Type: Dump Truck
Brand Name: SHACMAN
Person in charge: Jim yao
Cel: 0086 176 6971 7509
Whatsapp: 8617669717509
E-mail: sales29@chinatruck.cc
FREE GET QUOTE
Details
Specification:
| Name | Shacman F3000 8×4 Dump Truck Cummins Weichai Engine | |
| Driving model | LHD/RHD (left hand drive or right hand drive) | |
| Overall dimension | 10500x2496x3450mm (Length x width x height) | |
| Dump body | Type of body | ”田” |
| Body size | 7300 x 2300 x 1500mm | |
| Body thickness | 8mm at the bottom, 6mm at both sides | |
| Lifting system | Front hydraulic system or middle hydraulic system | |
| Cabin | F3000 One Sleeper Cabin | |
| Tires | 12+1 spare tyre with rim | |
| 12R22.5 | ||
| Wheelbase | 1800+3575+1400mm | |
| Axle | MAN 9.5 front axle，MAN 16 rear axle | |
| Engine | Model | WP10.380E22, Euro II, Diesel |
| Engine power | 280KW (380HP) @ 2200 tr / min | |
| Max torque | 1600 N.m @ 1500-1800 tr / min | |
| Air intake type | Turbo-charge and inter-cool | |
| Fuel injection type | Direct injection | |
| Gearbox | 10JS180 gearbox 10 forward speeds + 2 reverse speeds | |
| Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
| Suspension system | Strengthen heavy duty Leaf spring type | |
| Frame | Double-layer frame (8 + 8/300) | |
