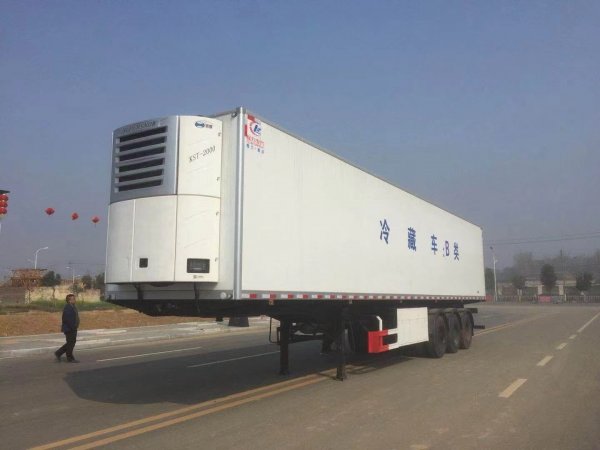

new refrigerator trailer 3 axles 66m3 refrigerator trailer 66m3
No.:
Vehicle Type: Container Semi-trailer
Brand Name: CIMC
Details
Main specification | |
Product name | 3 axles refrigerator trailer |
Curb Weight(kg) | approx.11000 |
Overall dimension (mm) | approx.12500x2600x3995 |
Van dimension (mm) | 12032x2352x2393 |
Van box | |

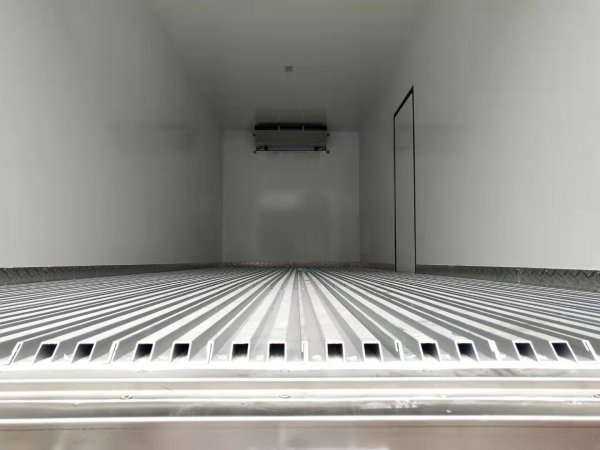

Material | Glass Fiber Reinforced plastics inside and outside,10cm polyurethane extruded Insulating layer, with ventilating slot on floor/on sides.
|

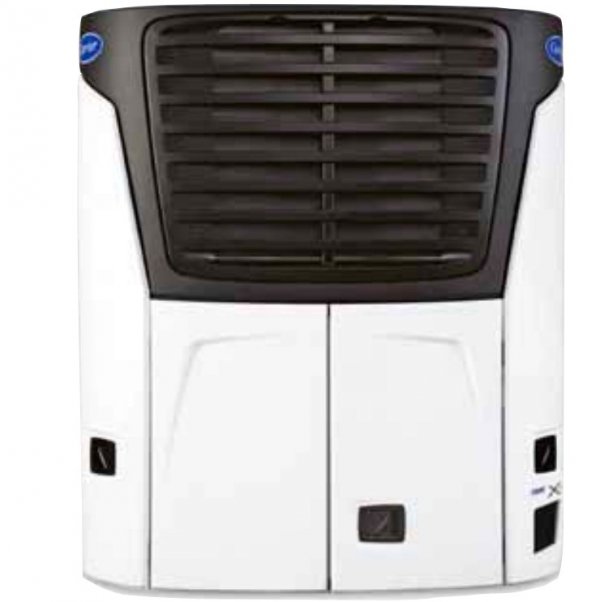

Refrigerator unit | America carrier brand, independent refrigerator unit Model:X4 7300 Wind volume: 5180m3/Hr 18.5KW (24.8hp) diesel engine |
Temperature | reach to -18℃ |
Door | 2 piece side doors and 1 piece rear door(according to customer’s requirements) |
Chassis | |
Main Beam | Heavy duty and extra durability designed |
Axle | 3 units of FUWA band Axle load capacity:13 ton/axle |
Landing Gear | JOST Brand |
King Pin | 50# or 90# |
Tire | 12 pieces of 12R22.5 |
ABS | Have |
Tool box | 1 unit |
Side guard | cross bar-structure |
Rear bottom guard | Fixed type |
Lights and wire | 24 volts electrical system includes taillights, sidelights, and direction indicators, 7-pin socket fixed at the front of trailer. |
Painting | Color as customer choice |
