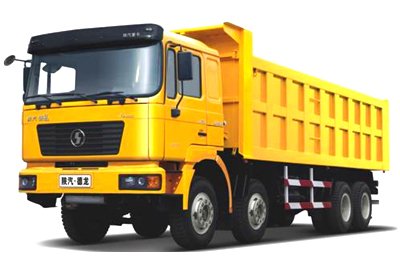

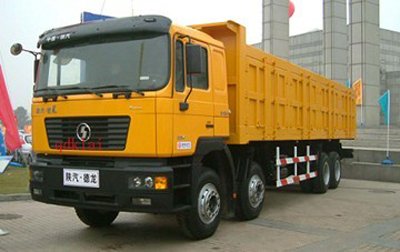

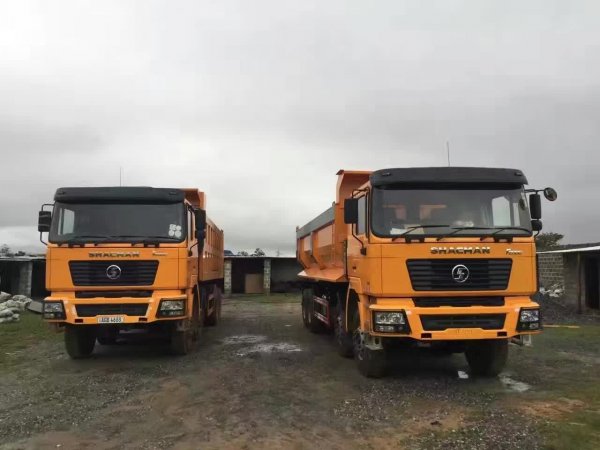

SHACMAN 12 Wheeler Dump Trucks F3000 8X4 WEICHAI Tipper Truck

No.: Jim-02

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: Jim yao

Cel: 0086 176 6971 7509

Whatsapp: 8617669717509

E-mail: sales29@chinatruck.cc

FREE GET QUOTE
Jim Whatsapp

Details


SHACMAN 50t TIPPER TRUCK F2000 8X4 WEICHAI 380HP DUMP TRUCK


Traction type

8x4

Drive System

LHD

Cabin

F3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.380E32  EURII

Rated power

380hp

Engine displacement

9.726 liters

Gearbox

FAST 9 Speeds (RTD-11509C)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

6.5 Ton STR

Rear

13 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20(12+1)

Fuel tank

380L

Kerb weight (kg)

14500

Total mass (kg)

31000

Wheel base (mm)

1800+3600+1350

Overhang (mm) (front/rear)

1525/2054

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/28

DimensionsL*W*H(mm)

Overall

10500x2500x3500

Dump body

7600x2300x1500(26cbm)

Thickness (mm)

Bottom 8 , side 6 (Thickness optional)

Hydraulic lifting system

Front lifting
