SHACMAN F3000 12 Wheels 8x4 400hp Tipper Truck for Guinea
No.: KL250415WJX2
Vehicle Type: for Guinea
Brand Name: SHACMAN
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
Applications:
Mining operations
Quarry material transport
Large-scale construction projects
Road infrastructure development
Key Features:
✔ Powerful Engine: Equipped with a 400hp diesel engine, providing high torque and low fuel consumption for heavy loads.
✔ Robust 8×4 Chassis: 12-wheel drive configuration ensures superior traction and stability on rough roads or off-road sites.
✔Heavy-Duty Tipper Body: Reinforced steel construction with a large payload capacity, designed for mining, quarrying, and bulk material transport.
✔ Driver-Centric Cabin: Spacious, ergonomic design with air conditioning, reduced noise, and enhanced safety features for operator comfort.

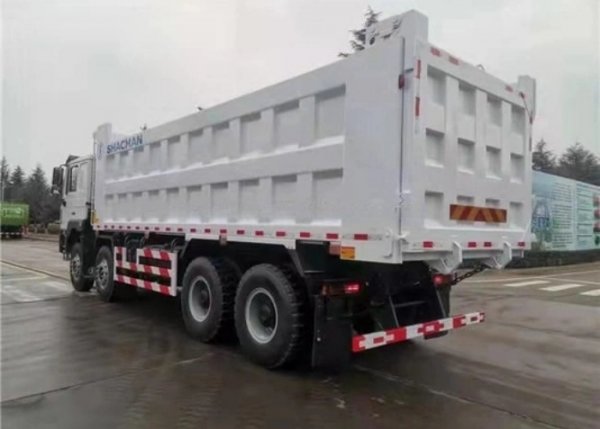

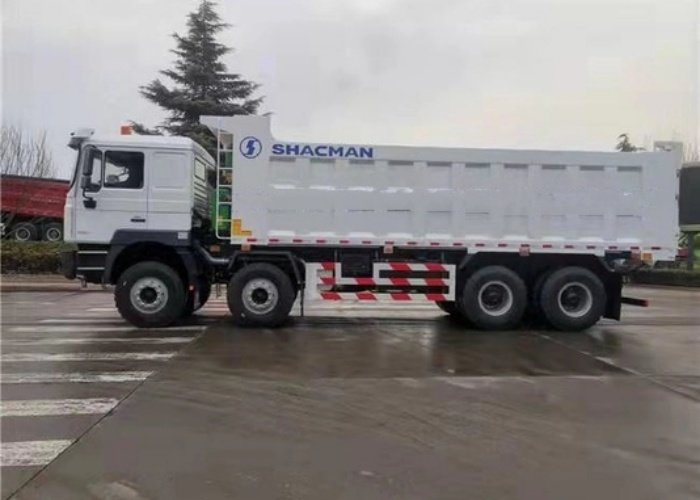

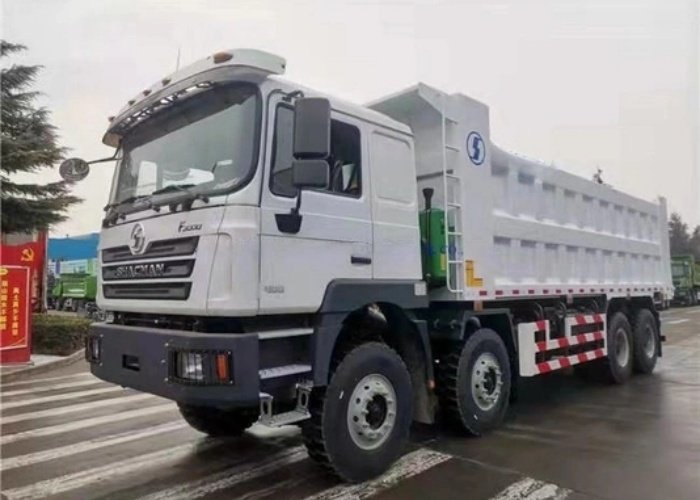

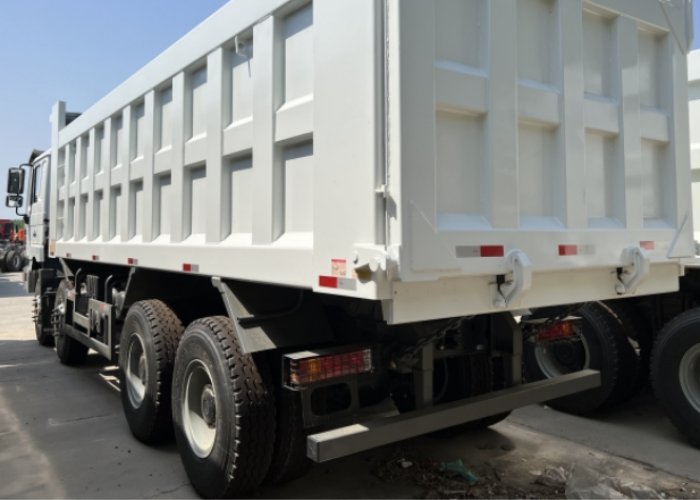

SHACMAN F3000 12 Wheels 8x4 400hp Tipper Truck for Guinea
SHACMAN F3000 12 Wheels 8x4 400hp Tipper Truck for Guinea
SHACMAN F3000 12 Wheels 8x4 400hp Tipper Truck for Guinea
Specifications:
| Basic Information | Name | SHACMAN F3000 12 Wheels 400hp Dump Truck for Guinea |
| Model | SX3315DU406 | |
| Drive type | 8x4 | |
| Driving mode | Left Hand Driving | |
| Horsepower | 400hp | |
| Logistics type | ore, sand, gravel,coal,muck etc. | |
| Weight | Complete curb weight(kg) | 15000 |
| GVW(kg) | 70000 | |
| Dimension | Max. length(mm) | 10500 |
| Max. width(mm) | 2490 | |
| Max. height(mm) | 3500 | |
| Frame(mm) | 850×300(8+7) | |
| Wheelbase(mm) | 1800+3975+1400 | |
| Rear hang(mm) | 1000 | |
| Upper body | Dump body size (mm) | 7800X2300X1700 |
| Bucket capacity (cubic meters) | 30.498cbm | |
| Tipping system | Front tipping system | |
| Engine | Brand | WEICHAI |
| Model | WP12.400E201 | |
| Emission standard | Euro Ⅱ | |
| Axles | Brand | MAN |
| Front axle(kg) | 9500 | |
| Rear axle(kg) | 16000 (double reduction) | |
| Ratio | 5.92 | |
| Transmission | 10JSD180+QH50 | |
| Suspension | Front and rear multi leaf spring | |
| Tyres | 12.00R20 (12+1)pcs | |
| Fuel | Diesel | |
| Tank capacity | 300L | |
| Tank Mterial | Aluminium alloy | |
The SHACMAN F3000 12-wheel 8×4 tipper truck is engineered to deliver exceptional performance in mining, construction, and heavy-load transportation across Guinea’s rugged landscapes. With a powerful 400hp engine, reinforced chassis, and durable dump body, this truck ensures high productivity, fuel efficiency, and reliability in challenging conditions.
Interested in this model? Contact us for pricing and configuration options!
