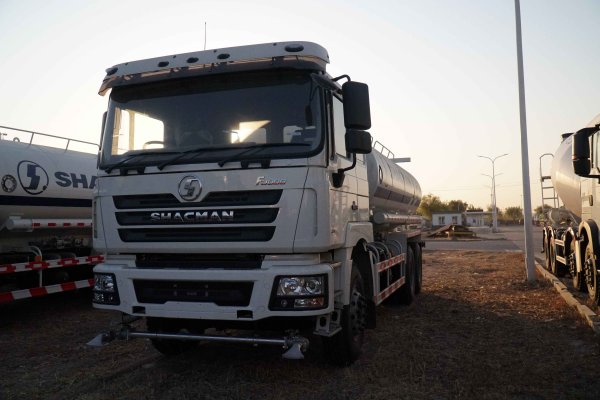

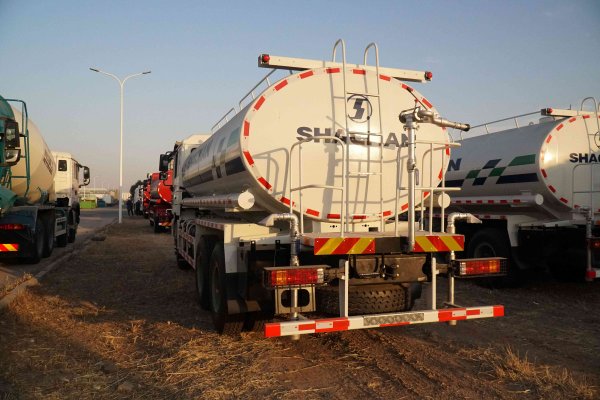

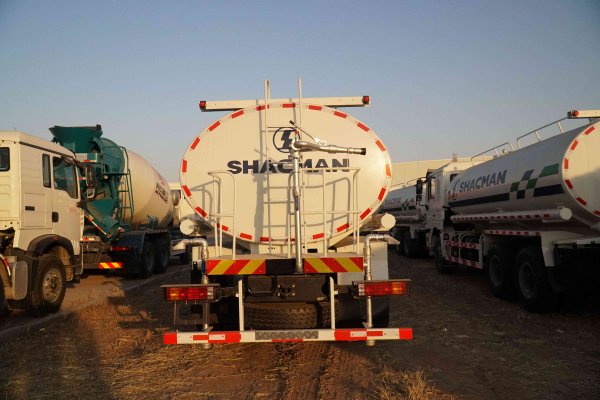

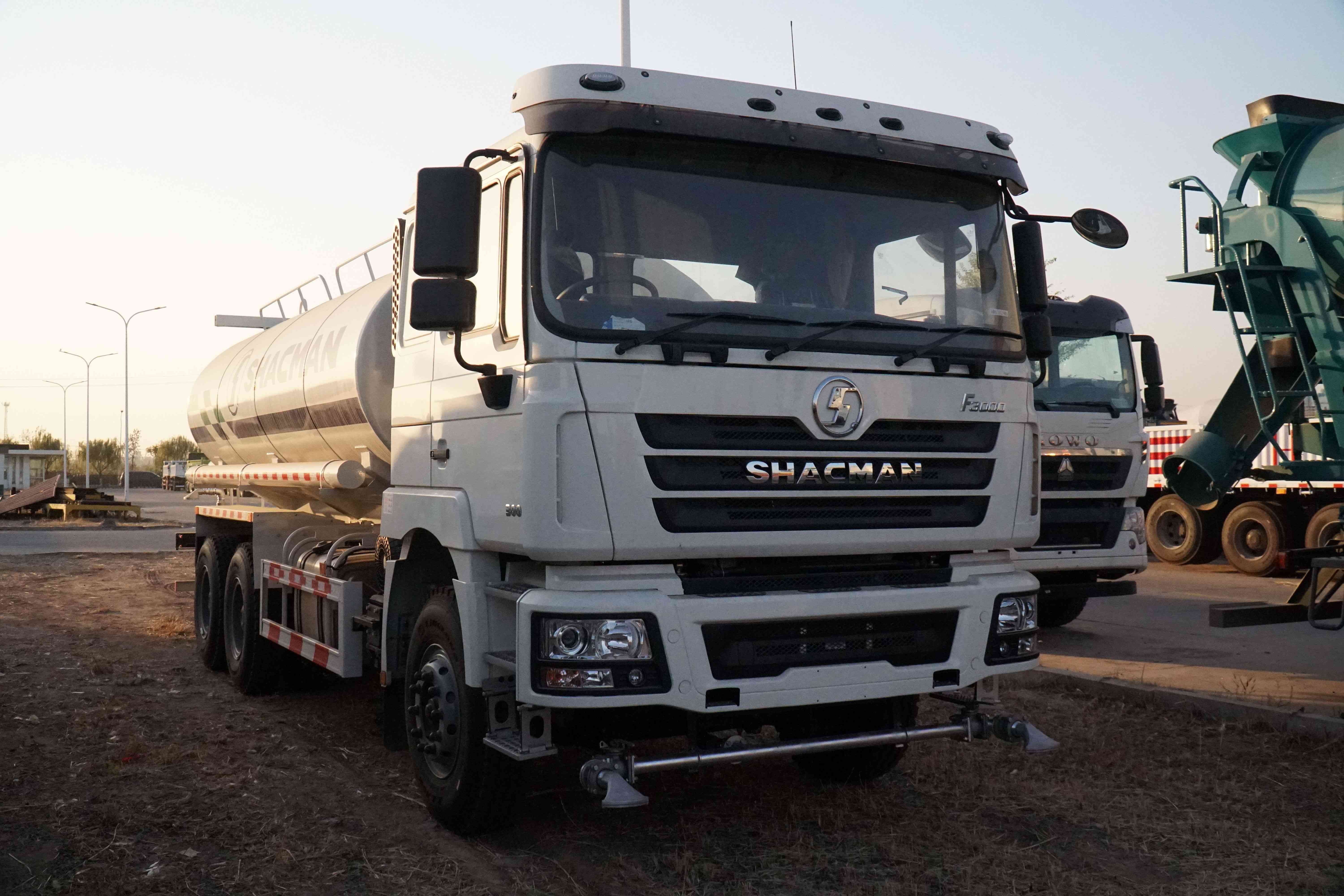

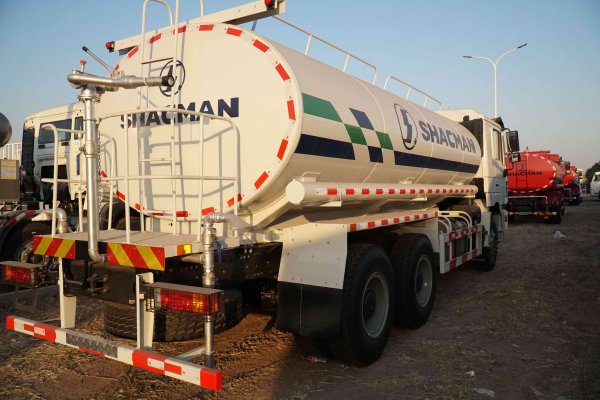

SHACMAN F3000 6×4 Water Tank Truck 20M³, Algeria Markets
No.: F3000-240301-03
Vehicle Type: SHACMAN for Algeria
Brand Name: SHACMAN
Person in charge: Marc Zhou
Cel: 8617664086916
Whatsapp: 8617664086916
E-mail: sales3@chinatruk.cc
FREE GET QUOTE![_20230914234530](res/en/20230914/90bbf1de4ed976d9.jpg)
Details
Name | New SHACMAN F3000 6×4 18m³ Water Tank Truck | |
Size (mm) | 10500 x 2550 x 3400 | |
Tires | 12R22.5, 10+1pcs, rim trim cover | |
Wheelbase | 4375+1400mm | |
Axle | MAN7.5T front axle,MAN 13T rear axle, speed ratio:4.769 | |
Engine | Model | WP10.300E22, Euro II, Diesel |
Engine power | 221KW (300HP) @ 1900 tr / min | |
Max torque | 1390 N.m @ 1200-1500 tr / min | |
Air intake type | turbo-charge and inter-cool | |
Fuel injection type | Direct injection | |
Gearbox | RTD11509C gearbox with QH50 power take-off, 9 forward speeds + 1 reverse speeds | |
Fuel tank | 380L Steel fuel tank | |
Suspension | Multiple leaf springs front and rear | |
Main beam | Double-layer frame 850×300(8+5) | |
Tank | Volume | 20CBM |
Materials(The interior of the tank is coated with anti-corrosion paint) | Q235, tank thickness is 5mm
| |
Value | 2 pcs 4 "discharge valves | |
Manhole cover | 2pcs | |
Spraying mode | Spray before and after | |
Other | Working platform and high pressure water gun | |
Other | F3000 medium-length flat-top cab without roof deflector, hydraulic main seat, four-point hydraulic suspension, ordinary rearview mirror, hot zone air conditioner, electric window opener, manual flip, metal bumper-light guard net, three Level access pedal, ordinary air filter, ordinary exhaust, oil pan protective grille, imported clutch, taillight protective grille, 165Ah maintenance-free battery, | |
Elastic headrests, Jacksell technology compressor, manual sunroof, telescopic shaft control, domestic six-channel ABS, front lower protection, driving recorder, cruise control system, speed limit 90km/h, seat belt not fastened reminder, reflective vest, SHACMAN logo, full English logo, special signage |
