Shacman F3000 6x4 8x4 Euro2 20-40ton Dump Truck

No.: Jim-240428

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: Jim yao

Cel: 0086 176 6971 7509

Whatsapp: 8617669717509

E-mail: sales29@chinatruck.cc

FREE GET QUOTE
Jim Whatsapp

Details

Specification

NameShacman F3000 6×4 Dump Truck Cummins Weichai Engine
Driving modelLHD/RHD (left hand drive or right hand drive)
Overall dimension8545x2496x3350mm (Length x width x height)
Dump bodyType of body”田”
Body size5600 x 2300 x 1500mm
Body thickness8mm at the bottom, 6mm at both sides
Lifting systemFront hydraulic system or middle hydraulic system
CabinF3000 One Sleeper Cabin
Tires10+1 spare tyre with rim
12.00R20 radial tyre, 18PR, mixed pattern
Wheelbase3800+1350mm
AxleMAN7.5 front axle,MAN 13 rear axle
EngineModelWP10.380E22, Euro II, Diesel
Engine power280KW (380HP) @ 2200 tr / min
Max torque1600 N.m @ 1500-1800 tr / min
Air intake typeturbo-charge and inter-cool
Fuel injection typeDirect injection
Gearbox10JS180 gearbox 10 forward speeds + 2 reverse speeds
Braking systemParking brake (emergency brake): spring energy, compressed air operating on rear wheels
Suspension systemStrengthen heavy duty Leaf spring type
FrameDouble-layer frame (8 + 8/300)

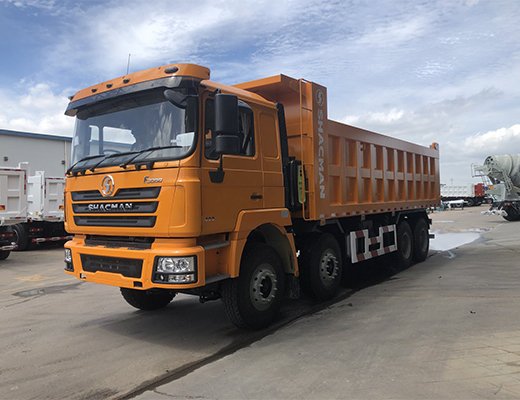

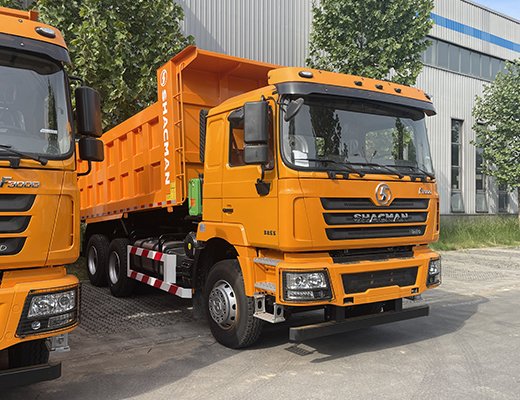

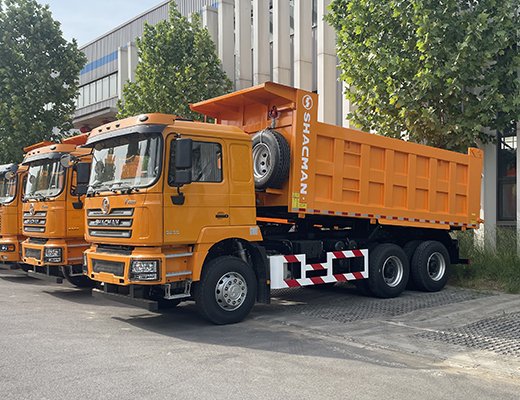

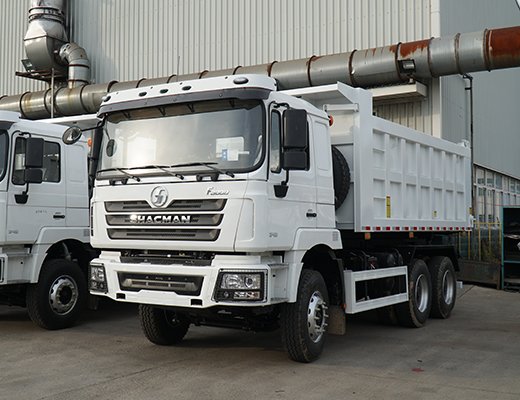

More Detail Photo:
