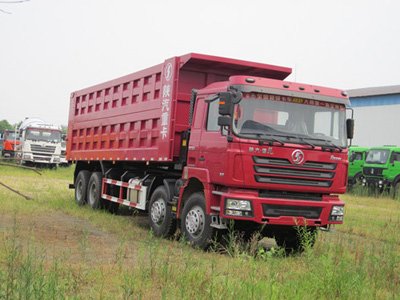

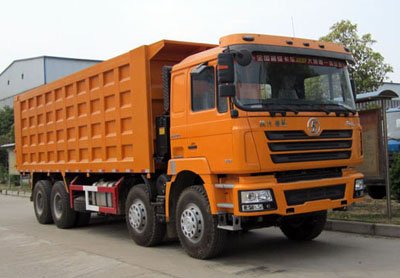

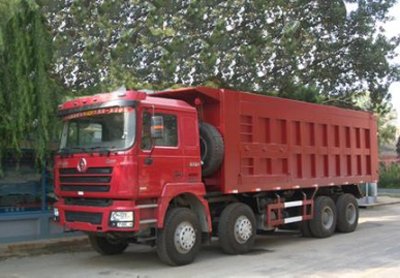

SHACMAN WEICHAI 380hp 8x4 Dump Truck

No.: Jim-10

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: Jim yao

Cel: 0086 176 6971 7509

Whatsapp: 8617669717509

E-mail: sales29@chinatruck.cc

FREE GET QUOTE
Jim Whatsapp

Details



SHACMAN WEICHAI 380hp 8x4 Dump Truck


SHACMAN

F3000

8*4

Dump Truck

SX3317DT346

Traction type

LHD/RHD

Drive System

8x4

Cabin

F3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.380E32  EuroIII EGR Mechanical

Rated power

380hp

Engine displacement

9.726 liters

Gearbox

FAST 10 Speeds (10JSD160)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

7.5 Ton Man axle

Rear

16 Ton MAN double reduction axle, ratio:5.262

Max. running speed (km/h)

77

Tire

12.00R20(12+1)

Fuel tank

400L(Aluminum)

Kerb weight (kg)

14970

Total mass (kg)

31000

Wheel base (mm)

1800+3400+1350

Overhang (mm) (front/rear)

1525/2055

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/20

DimensionsL*W*H(mm)

Overall

10130x2490x3450

Dump body

7000(7600)x2300x1500

Thickness (mm)

Bottom 8 , front6mm,side 4

Hydraulic lifting system

 Front lifting

Options
