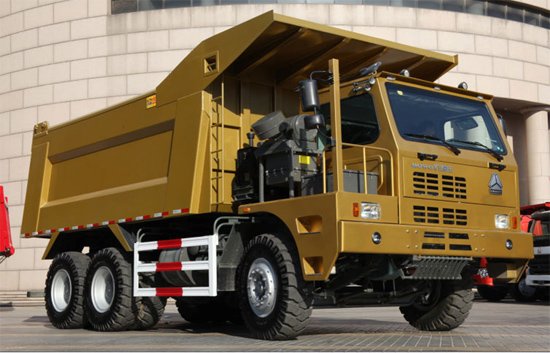

Truck Model

ZZ5707S3841AJ

Truck Brand

SINOTRUK—HOWO

Driving Type

Left Hand Driving

Dimension(Lx W x H)(unloaded)(mm)

9045x3200x3770

Cargo body size (L*W*H, mm)

5800x3100x1700   30.56m3

Cargo body Thickness (mm)

bottom:12mm, side:10mm,

Cargo material

Manganese plate

Lifting System

HYVA front side lifting

Approaching angle/Departure angle(°)

32/40

Overhang(front/rear) (mm)

1500/1800

Wheel base (m

3800+1500

Max speed(km/h)(km/h)

50

Min. ground Clearance(mm)

340

Max. gardeability(%)

42

Min. turning Radius(e)

22

Curb weight(kg)

23000

Loading Weight(kg)

70000

Engine

Brand

SINOTRUK

Model

WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection

Fuel type

Diesel

Horse Power, max(kw/rpm)

371HP

Emission

EURO II

Fuel tanker capacity(L)

500

Clutch

CH430-21(2100N.m) Rumsfeld diaphragm clutch.

Front suspension

1500mm;  Half the elliptical leaf spring with shock absorber cavitation

Rear suspension

1000mm;  The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt

Transmission

Model

HW19710

Brand

SINOTRUK

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxilary brake

engine exhaust valve brake

Steering system

Model

ZF8098 hydraulic steering with power assistance

Brand

Germany brand

Front axle

HF12 , Steering with double T-cross section beam

Rear axle

HC26, (cast steel 2×26ton hub-reduction axle)

Color

Optional

Tire

14.00-25        36 level

10PCS with one spare tire

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW7D cab, (with air-condition),  Unilateral cab
