Sinotruk Howo 290hp 8*4 Tipper Truck price

No.: Kevin210524

Vehicle Type: Dump Truck

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: Marketing Director: Mr Kevin Jiang

Cel: 0086 176 6971 7518

Whatsapp: 8617669717518

E-mail: sales17@chinatruck.cc

FREE GET QUOTE

Details

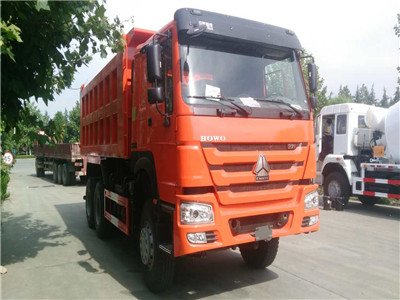

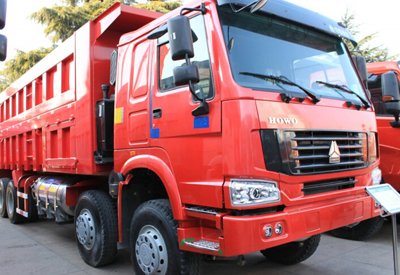

SINOTRUK HOWO 8x4 Dump Truck

Drive type: 8x4

Cab: HW76 standard cab with sleeping bed, with A/C



Engine: Weichai brand  WD615.87

Type: 6-cylinder in-line with water cooling, supercharging & intercooling

Displacement: 9.726L

Engine output: 290p



Transmission (gear box): HW15710, 10 speed transmission

Clutch: D430 Diaphragm type

Steering: ZF8098

Front axle: HF9 drum type, 9tons

Rear axle: HC16 double reduction

Ratio=5.73

Fuel tank: 300L

Tire: 12.00R20, 12



Kerb. mass: 14350kg

Total mass: 31000kg

Rated payload: 16520kg

Max. speed (km/h): 75

Max. gradeability(%): 52

Approach/departure angle: 19/28 degree

Overall dimension(mm): 9077×2496×3453

Wheel base (mm): 1800+2800+1350

Front/rear overhang (mm): 1500/1627

Front /rear wheel track(mm): 2022/1850

Minimum ground clearance(mm): 314



Dump body dimension(mm): 6500x2300x1200

Capacity: 17.9 cbm

Thickness of dump body (mm): floor 8, side & back 6

Lifting type: HYVA front type lifting

Other technical details according to CNHTC factory standard
