Model name

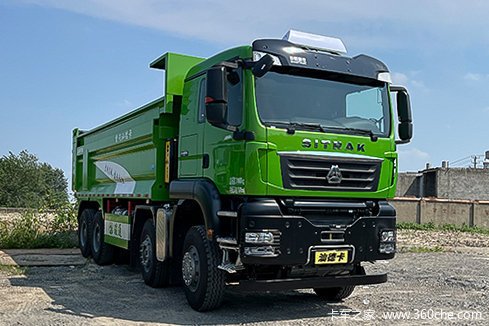

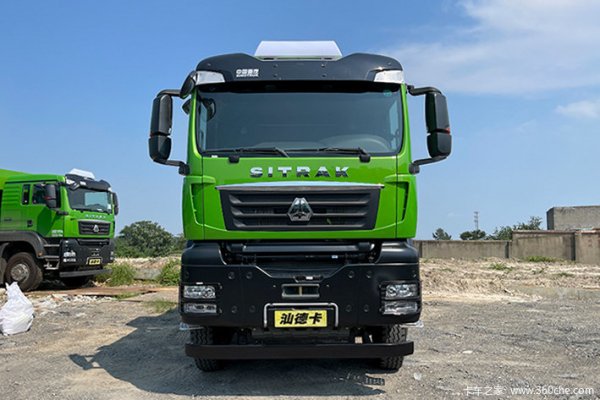

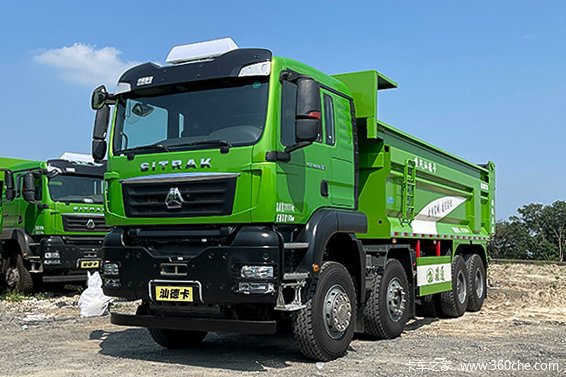

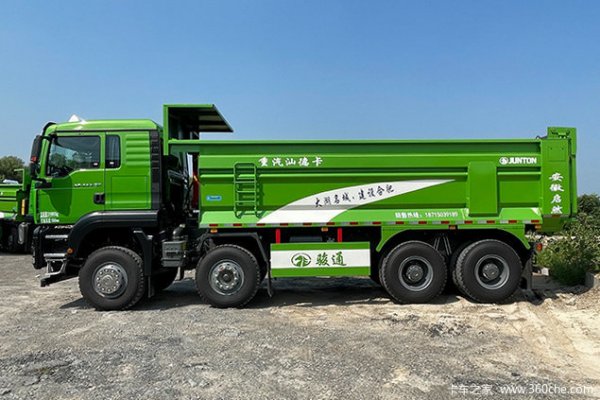

SITRAK C7H DUMP TRUCK

Model

ZZ2316N256HF1

Driving type

Left hand drive

Traction type

8×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.15500

Gross Combination Weight (kg)

Approx.60000

Dimensions

Wheelbase(mm)

3775+1400

Overall dimension(mm)

Approx.1800+2500+1400

Engine

Engine model

MC13.54-61

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

12.42 / Diesel

Max. output (kw)

400

Fuel Tanker（L）

800 aluminum fuel   tank

Drive Line

Gearbox

HW25712XSJHW50 flange power take-off

12 speeds, 12 forwards, 2 reverse gear, AMT

Steering

Power steering

Brake

Air brake, engine exhaust brake

Cab

Cabin

length flat top cab, double sleeper, with A/C;

Can be tipped forwardly, with inner A/C and one sleeper bed

Standard configuration

Air container

Axle

Front axle

6500/7000kg

Rear axle

MCP23ZG

Tire specification

Tire specification

12.00R22.5

standard tire,12 tires+1 spare part

Parameter

Economic speed/maximum speed (km/h)

40～55/75

Max. Gradeability

35(%)

Rear overhang(mm)

1450

Suspension

Leaf spring, 11/11/12

Color

Customized

Body dimension(mm)

8800x2380x1580

Body volume(m3)

33.1

Material

Carbon steel plates

Lifting method

Front hydraulic lifting system
