Model name

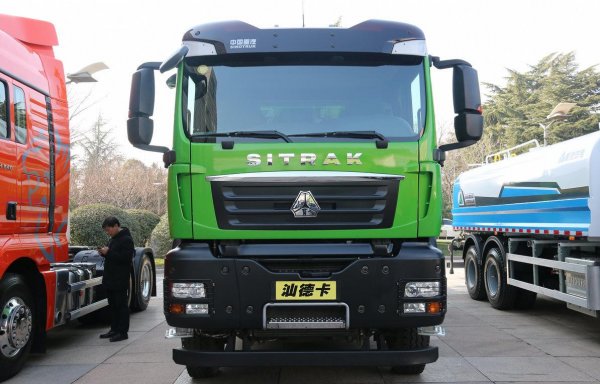

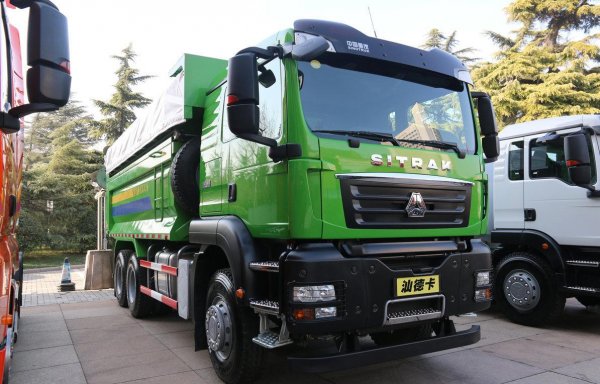

SINOTRUK SITRAK G7W DUMP TRUCK

Driving type

Left hand drive

Traction type

8X4

Color

Green

Weights

Gross Vehicle Weight(kg)

Approx.15500

Gross Combination Weight(kg)

Approx.30870

Dimensions

Wheelbase(mm)

1950+2525+1350mm

Overall dimension(mm)

Approx. 8900×2550×3700

Engine

Engine model

WP10H400E62, 400HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.5L / Diesel

Max. output (kw)

294kW

Fuel Tanker

300L fuel tank

Drive Line

Gearbox

HW19712L+HW50 PTO

12 forwards, 2 reverse gear

Steering

Power steering, Bosch steering gear

Brake

Front axle disc brakes, dual rear axle drum brakes

Cab

Cabin

G7-F cab Elite version, Middle roof, single sleeper, airbag seats

Can be tipped forwardly, with inner A/C

Standard configuration

Air container,

Equipped with air deflector and side air deflector

Axle

Front axle

VPD75 Drum Brake

Rear axle

MAT16ZG self-adjusting arm double rear axle

Speed ratio

4.8

Tire specification

Tire specification

12.00R20 (mixer pattern)

12 tires+1 spare tire

Suspension

Spring

Reinforced Multiple spring (11/11/12)

Frame

Frame(mm)

Double layer frame (8+5/300)

Dumper

Dumper size

5600×2350×1450mm

Dumper model

U-shape,

Bottom plate thickness: 5+5mm; Thickness of the side plate: 5mm

Lifting model

Front lift, 179

Parameter

Bumper

High bumper (metallic)

Safety devices

ABS(4S/4M)

exhaust system

Standard version exhaust system
