Model name

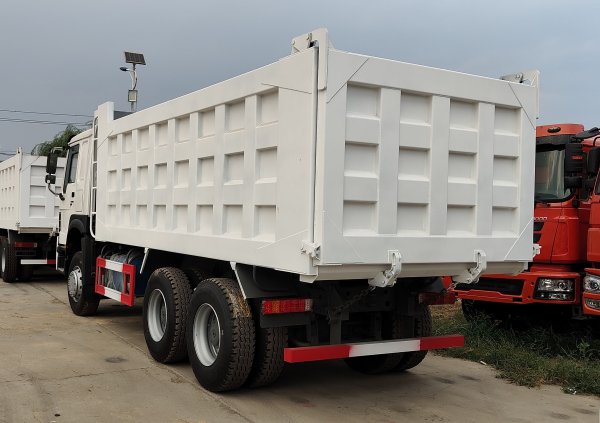

Howo-7 Dump Truck

Applicable type

Engineering vehicles

Driving type

LHD

Traction type

6×4

Number of doors

2

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.12500

Dimensions

Wheelbase(mm)

3600+1350

Overall dimension(mm)

Approx. 8600*2496*3445

Engine

Engine model

WP10.380E22 380HP, WEICHAI Engine

Emission standard

Euro 2

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

Straight-6 cylinders

Maximum torque N.m/r/min

1350/1300-1600

Bore x Stroke

126x130mm

Displacement(L)

9.726 / Diesel

Max. output (kw)

273kW

Fuel Tanker（L）

300 aluminum fuel tank

Drive Line

Gearbox

HW19710+HW50

10 forwards, 2 reverse gear, manual geabox

Steering

ZF8118 steering, Power steering,

Brake

Dual circuit pneumatic braking, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

HW76 cab;

Can be tipped forwardly, with inner A/C and one sleeper bed

Number of passengers/seats

2

Standard configuration

Air container

Axle

Front axle

VGD95-drum brake

Rear axle

MCX16ZG-double reduction pneumatic brake, double reduction driving   axles with inter-wheel & inter-axle differential locks

Axle ratio 5.451

Tire specification

Tire specification

12.00R20

Standard tire,10 tires+1 spare part

Steering

ZF Steering Gear Box ,hydraulic steering with   power assistance

Parameter

Economic   speed/maximum speed (km/h)

40～55/90

Max. Gradeability

35(%)

Rear   overhang(mm)

850

Suspension

Front and rear multi leaf springs (10/12)

Frame(mm)

Double decker frame (8+8/300)

Color

Customized

Dimension(mm)

5600x2300x1500

Box volume(m3)

19.32

Material

Carbon steel plates

Style

Tin word format

Thickness

Bottom 8mm sides 6mm

Lifting method

Middle top T-type 220 cylinder

Door opening direction

Rear door opening
