Model name

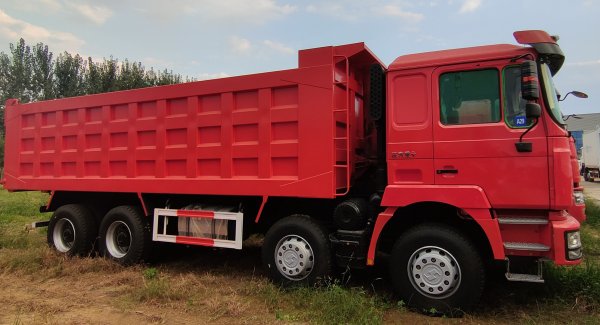

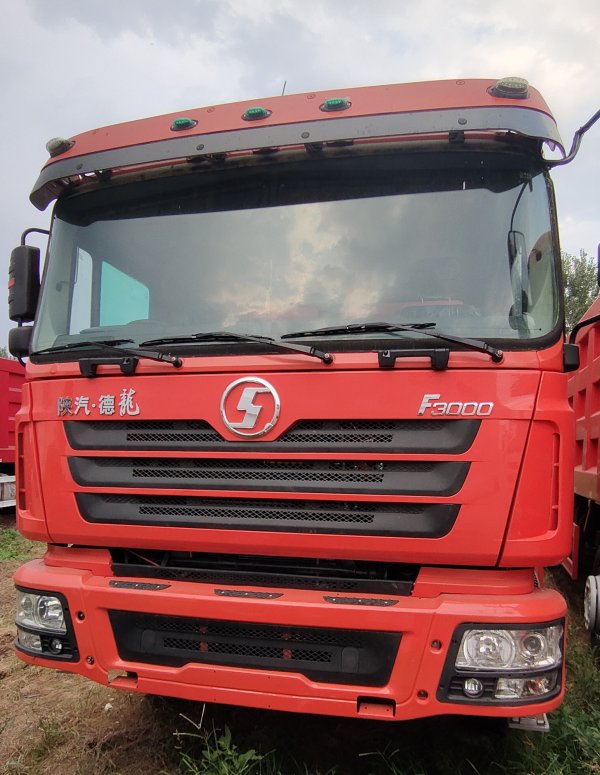

Used Shacman F3000 dump truck

Driving type

RHD

Traction type

8×4

Color

optional

Weights

Rated payload weight(kg)

>40000

Gross Vehicle Weight(kg)

Approx.12500

Gross Combination Weight (kg)

Approx.50000

Dimensions

Wheelbase(mm)

1800+3575+1400

Overall dimension(mm)

Approx. 9550×2500×3400

Engine

Engine model

WP10.380E22, 380HP, WEICHAI engine

Emission standard

Euro 2

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726 / Diesel

Max. output (kw)

279

Fuel Tanker（L）

400L Aluminum fuel tank

Drive Line

Gearbox

10JSD180+QH50

10 speeds, 10 forwards, 2 reverse gear, manual geabox

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

Medium length flat top cab, single sleeper, with A/C;

Can be tipped forwardly, with inner A/C and one sleeper bed

Standard configuration

Air container

Axle

Front axle

MAN 9.5T- drum brake

Rear axle

MAN 16T double reduction pneumatic brake, double reduction driving   axles with inter-wheel & inter-axle differential locks;

Axle ratio 5.262

Tire specification

Tire specification

315/80R22.5

standard tire,12 tires+1 spare part

Parameter

Economic   speed/maximum speed (km/h)

45～60/85

Max. Gradeability

45(%)

Rear   overhang(mm)

850

Suspension

Leaf spring, 13/13

Frame(mm)

850×300（8+7）

Color

Customized

Body dimension(mm)

7400×2300×1500

Body volume(m3)

25.53

Material

Carbon steel plates

Shape

Tin Word format

Lifting method

Front hydraulic lifting system
