Model name

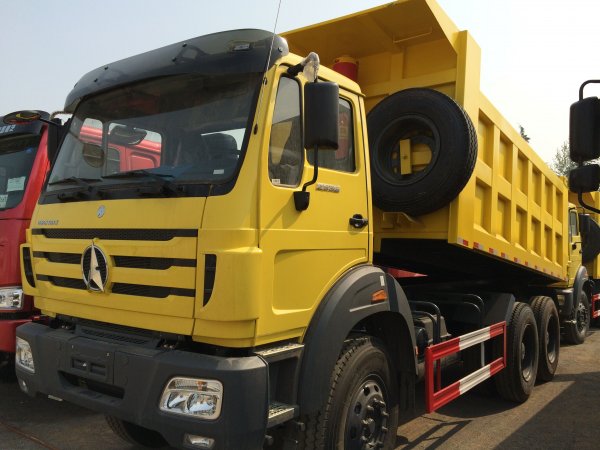

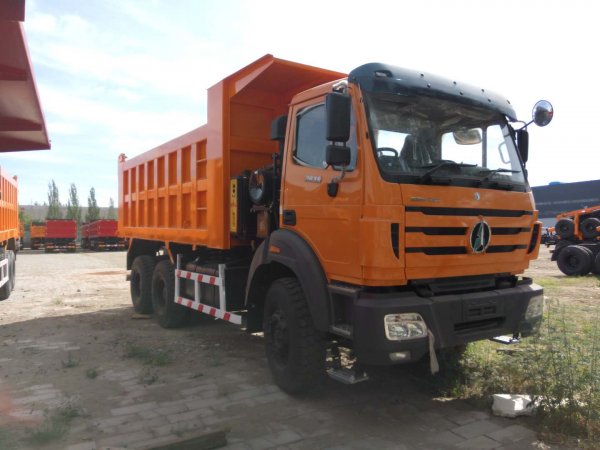

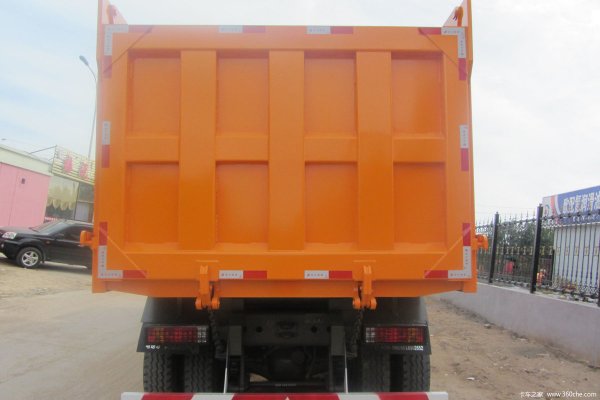

Beiben NG80 dump truck

Driving type

LHD//RHD

Traction type

6×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx.9800

Gross Combination Weight(kg)

Approx.50000

Dimensions

Wheelbase(mm)

3800+1450

Overall dimension(mm)

Approx. 8600*2498*3445

Engine

Engine model

WP10.380E32, 380HP, WEICHAI engine

Emission standard

Euro 3

Fuel type

Diesel oil

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726 / Diesel

Max. output (kw)

280

Max. trque (N.m)

1600

Rated speed

2200rpm

Fuel Tanker（L）

400-liter iron fuel tank

Full load minimum fuel consumption rate

196g/kW.h

Drive Line

Gearbox

12JS200T+QH50 flange power take-off

12 speeds, 12 forwards, 2 reverse gear, manual geabox

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

NG80B short drive flat top, single sleeper,   with A/C;

Can be tipped forwardly, with inner A/C and one   sleeper bed

Standard configuration

Air container

Axle

Front axle

6500/6500kg

Rear axle

13T North Bound Double Reduction Bridge

18000 (two axis group) kg

Axle ratio 5.263

Tire specification

Tire specification

12.00R20

standard tire,12 tires+1 spare part

Parameter

Economic   speed/maximum speed (km/h)

45～60/85

Max. Gradeability

45(%)

Rear   overhang(mm)

850

Suspension

Leaf spring, 12/12/13

Frame(mm)

317*70*8.5+7+8.5

Color

Customized
