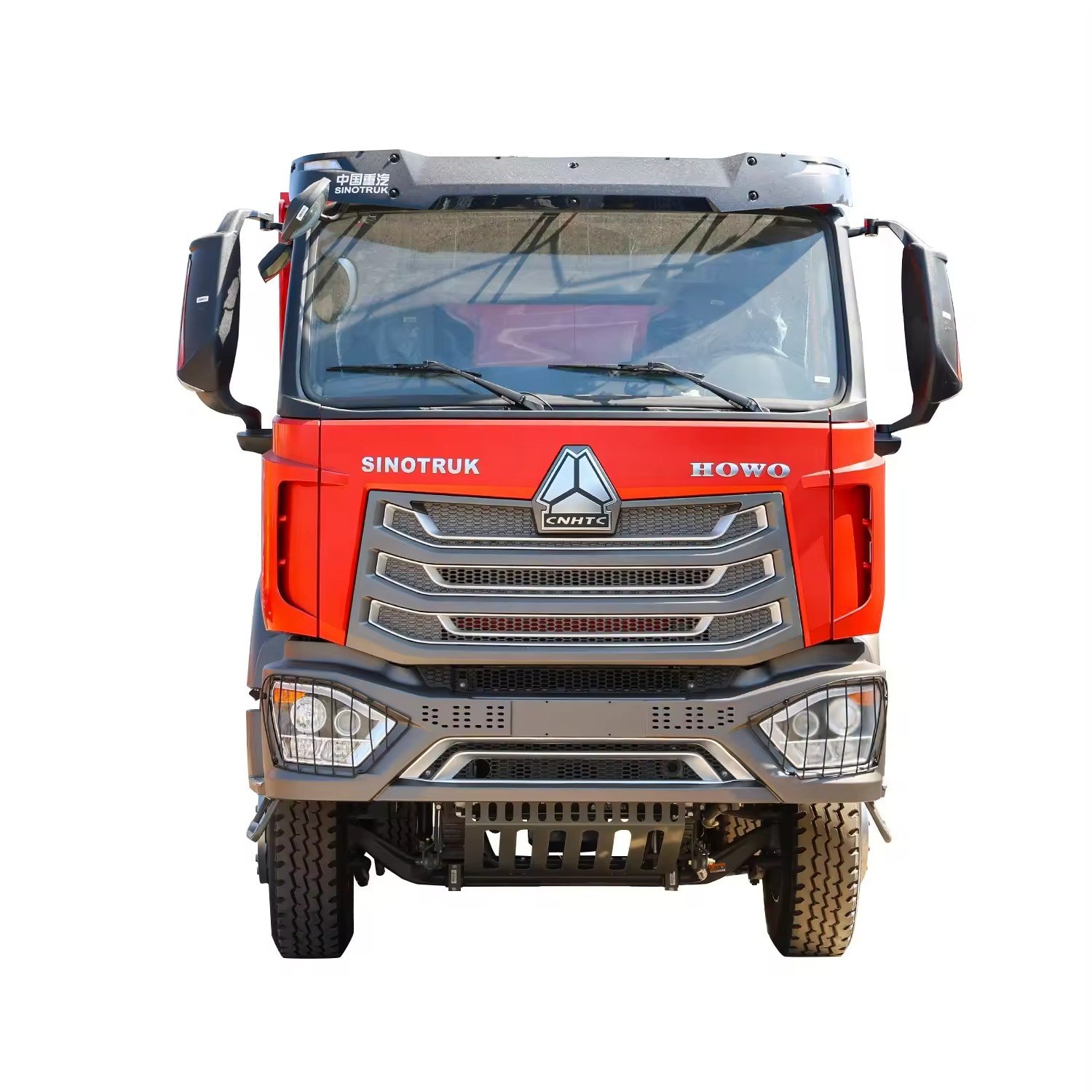

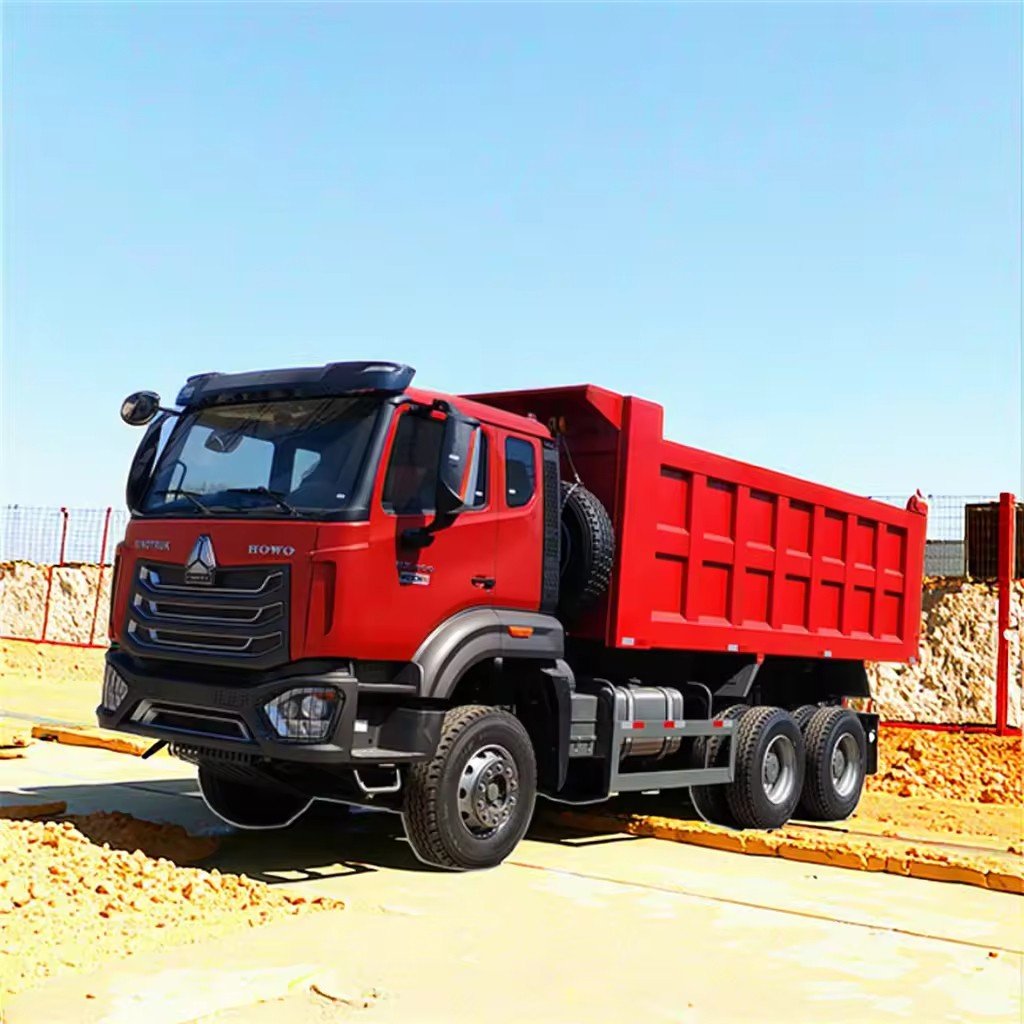

SINOTRUK HOWO NX 6x4 Dump Truck Specifications

The SINOTRUK HOWO NX 6x4 Dump Truck is designed for heavy-duty applications with a focus on durability, reliability, and performance. It is well-suited for construction, mining, and other demanding environments where robust transportation solutions are required.

Key Specifications

Truck Model: ZZ3257V364JB1R
Truck Brand: SINOTRUK-HOWO NX
Dimensions (LxWxH) (Unloaded): 8645×2550×3450 mm
Body:

Carriage Internal Dimension: 5400x2300x1500 mm
Steel Thickness of Carriage: Floor 8mm, Side 6mm
Hydraulic Lift of Carriage: Middle Lift
Steel: Q235

Angles:

Approaching Angle: 19°
Departure Angle: 23°

Overhang (Front/Rear): 1500/1870 mm
Wheelbase: 3625+1350 mm
Max. Driving Speed: 75 km/h
Axle Loading Capacity:

Front: 9500 kg
Rear: 2 x 16000 kg

Weights:

Curb Weight: 12750 kg
Gross Vehicle Weight: 30000 kg

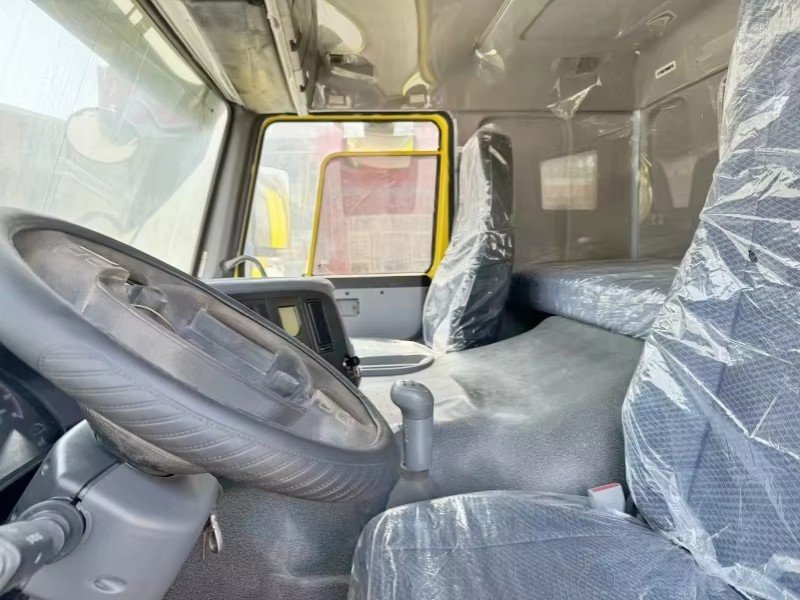

Cab Model: SINOTRUK H77L Lengthen cab, Single bunk, new type seat, adjustable steering wheel, new instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
Engine Model:

Model: WP10.380E22 (EURO II), 380hp, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Rated Power: 279 kW @ 2200 rpm
Make: WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan

Clutch: SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
Transmission: SINOTRUK HW19710 transmission, 10 forward and 2 reverse
Brake System:

Service Brake: Dual circuit compressed air brake
Parking Brake (Emergency Brake): Spring energy, compressed

Steering System: BOSCH Hydraulic steering with power assistance (Left hand driving)
Axles:

Front: SINOTRUK VGD95 Front Axle, new 9.5-ton front axles equipped with drum brakes

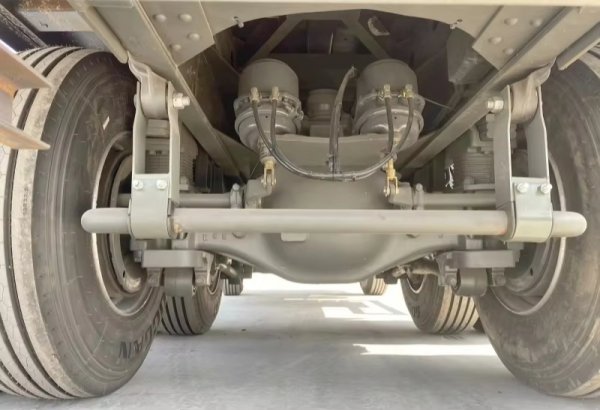

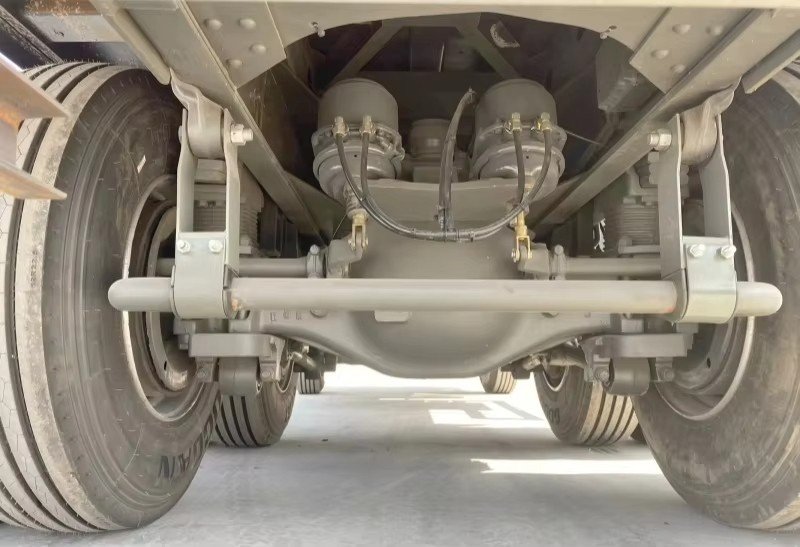

Rear: SINOTRUK MCX16ZG Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle, ratio: 6.037

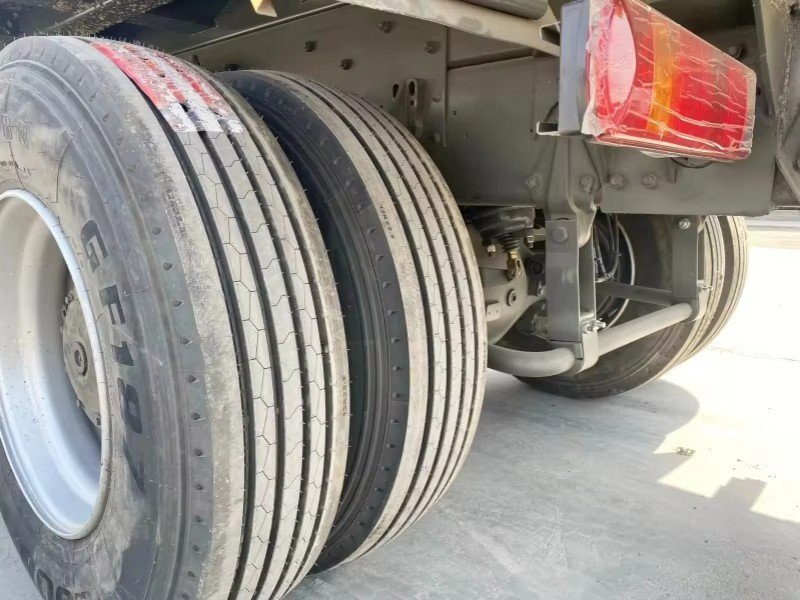

Wheels & Tires: Rims: 10 hole-steel; Tyres: 12.00R20 radial tyre with 1 Spare tire
Electrical System:

Operating Voltage: 24V, negative grounded
Starter: 24V, 7.5 Kw
Alternator: 3-phase, 28V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Horn, headlamps, fog lights, brake lights, indicators, and reverse light

Fuel Tank: 300L fuel tank
Packing: Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, suitable for long distance transportation of ocean and inland. The Seller shall take measures against moisture, shocks, and rust according to the special needs of the commodity.
Technical Alteration: The manufacturer reserves the right of technical alteration/change for better improvement without prior notice.
