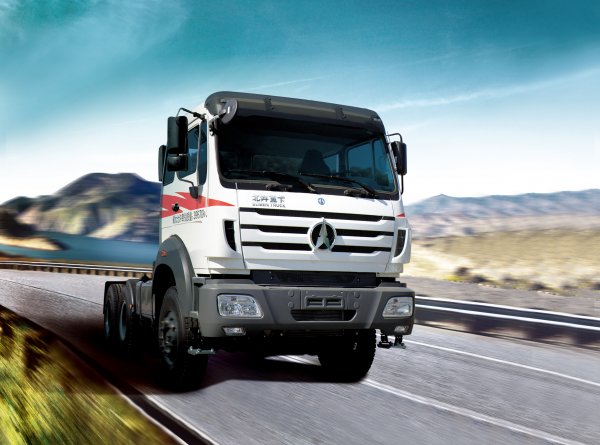

2023 Beiben Ng80b 6X4 Tractor Head Truck

No.: Ma-230616-3

Vehicle Type: Tractor Head

Brand Name: BEIBEN

Beiben Trucks

Person in charge: Marc Zhou

Cel: 8617664086916

Whatsapp: 8617664086916

E-mail: sales3@chinatruk.cc

FREE GET QUOTE
_20230914234530

Details

Traction type: 6X4
Driving type: Left hand drive; Right hand drive is optional
Cabin: NG80B cabin,  Mercedes Benz (double Sleeper), electric window lift.

Engine brand: Weichai EURO III
Engine model: WP12NG380E40
Displacement: 11.6 liters
Max. Output: 380HP 2200rpm
Max torque: 1600NM 1200-1600rpm
Bore/Stroke (mm): 126/155

Gear box: FAST12 speeds (12JSD200TA)
Steering: D50
Clutch: Φ 430 diaphragm type
Front axles: Benz 7.5T front axle
Rear axles: Benz double reduction drive axle
Ratio: 5.921
Tyre: 315/80R22.5 radial tires 10+1
Spring: 3/4, 9/13
LNG tank capacity (L): 450
Max. Speed (km/h): 110
Kerb. Mass: 8800 kg
Total mass: 25000kg
Wheel base (mm): 3850+1350
Front overhang (mm): 1515
Rear overhang (mm): 825
Front track (mm): 1995
Rear track (mm): 1800/1800
Approach angle: 16 degree
Departure angle: 60 degree
Dimension (mm): 7640X2500X3840
5TH wheel: (JOST is optional)
