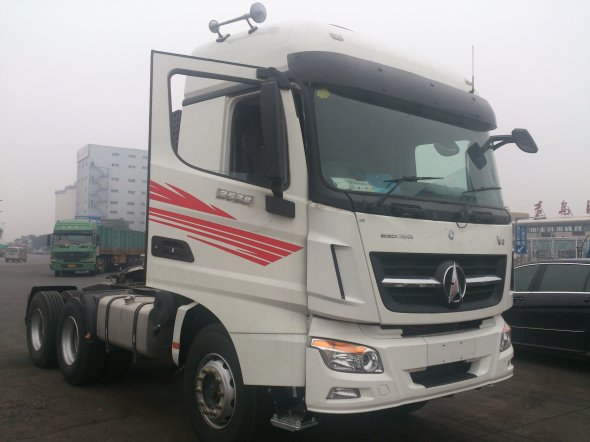

Model

ND42501B34J7-2534SZ

Cabin

Long and high cabin with A/C, two bed

Major color of cab: Ice white lacquer+ color bar, date red lacquer, dolphin grey

Vehicle Main Dimensions

L*W*H(mm)

7240x2500x3600

Wheel base(mm)

3450+1450mm

Weight

in KGS

Tare Weight(kg)

8800kg

Trailer Total mass (kg)

40000kg

Driving Speed(km/h)

110

Engine

Brand

Weichai WP10.340E32     Euro 2

Max. output

340hp@2200rpm

Max torque

1250NM@1400-1600rpm

Gear box

Fast  12JS160T   12 speeds 2 reverse

Clutch

Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting

Tyre

Tyre

12.00R20      10+1 Piece

Fuel tank

400L Aluminum Tank

Front axle

Mercedes Benz Technology, 7.5t Double-shoe pneumatic brake, non-driving steering axle

Rear axle

Mercedes Benz Technology, 13t  North Pennines after double reduction axle ratio 5.9 pairs of shoe pneumatic brake, hypoid gear drive axle, four U-bolts

Frame

Mercedes-Benz technology,Strengthened frame 317x70x8.5+7+12mm

Fish belly, various width, various sections, side beam structure

Spring

13/13 Strengthened rear spring 22mm, 4-line U-bolt, Strengthened Push Rod, Strengthened Transmission Shaft

Saddle

3.5’’or 2.0’’
