Model name

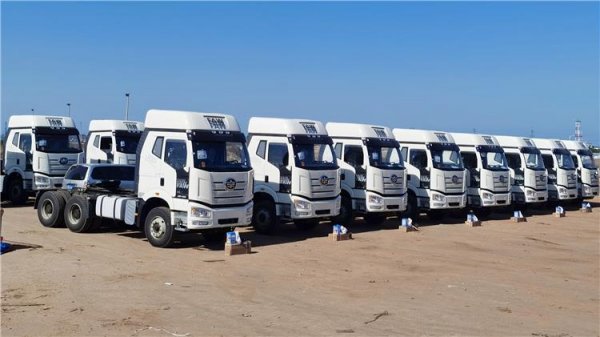

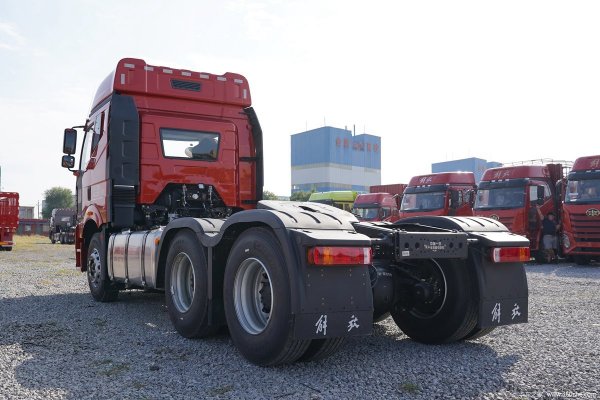

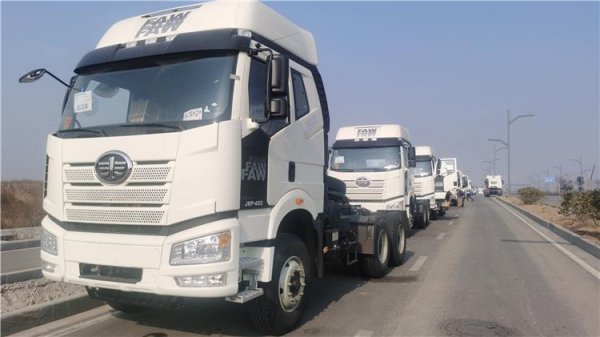

FAW J6P Tractor   truck

Driving type

LHD

Traction type

6×4

Color

White

Basic   configuration

Automatic air conditioning, iron bumper, integrated iron shell oil bath   air filter, aluminum radiator, rear two-point coil spring suspension of the   cab, manual hydraulic lifting device, lifting hydraulic support, 150Ah   battery, 4U-type bolts, long-term maintenance Three-stage module filter,   simple fender, English nameplate and logo, added headlight protection net,   added water tank lower guard plate

Weights

Gross Vehicle Weight(kg)

Approx.9000

Dimensions

Wheelbase(mm)

3400+1350

Overall dimension(mm)

Approx. 7400×2550×3700

Engine

Engine model

Xichai CA6DM2-42 420HP

Emission standard

Euro 2

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

11.04 / Diesel

Max. output (kw)

309

Fuel Tanker（L）

aluminum fuel tank 600L+300L

Drive   Line

Gearbox

CA10TAX190F (spline output   power take-off)

10 forwards, 2 reverse gear, manual geabox

Maximum input torque

1900N.m

Steering

Power steering

Brake

Air brake, engine exhaust brake

Clutch

430 diaphragm

Cab

Cabin

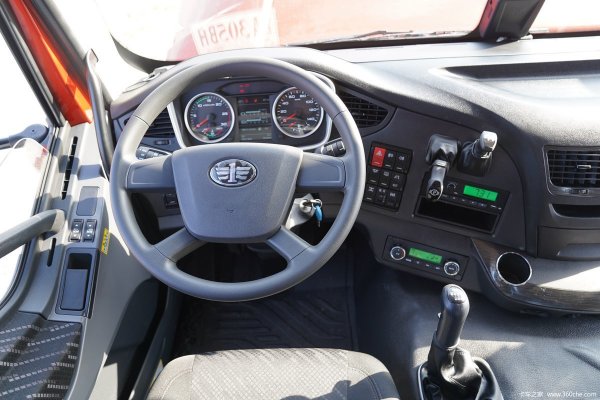

The new   J6P African version has a fully floating flat-top row and semi-driving, LCD   instrument, manual glass lift, manual rearview mirror, driver's seat is an   air shock-absorbing seat, with 24V power interface

Can be   tipped forwardly, with inner A/C and double sleeper bed

Axle

Front axle

2055 front axle

Rear axle

ф457 cast steel axle   (automatic adjusting arm, inter-wheel differential lock, 1878 wheelbase,   8-hole V-rod)

axle ratio

5.286

Tire   specification

Tire specification

315/80R22.5 20-layer tubeless tube

standard tire,10 tires

Parameter

Max. Gradeability

35(%)

Rear overhang(mm)

730

Saddle

Ф 90

Suspension

Leaf spring, 12/12

Frame(mm)

300×80×(8+8)

Color

White
