Model name

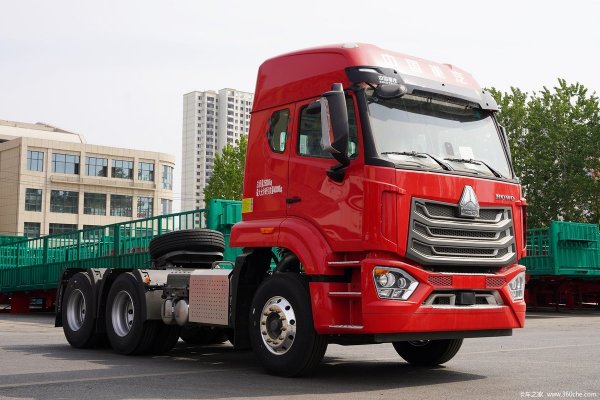

SINOTRUK   HOWO NX TRACTOR TRUCK

Driving type

Left hand drive

Traction type

6×4

Color

optional

Weights

Gross Vehicle Weight(kg)

Approx   8500

Dimensions

Wheelbase(mm)

3400+1400

Overall dimension(mm)

Approx.   6900×2490×3980

Engine

Engine model

WP12.430E201, 430HP, Weichai Engine

Emission standard

Euro   3

Engine type

4   stroke water-cooled, inter-cooling

No. of cylinders

straight-6   cylinders

Displacement(L)

11.6   / Diesel

Max. output (kw)

316

Fuel Tanker（L）

600L   aluminum alloy fuel tank

Drive Line

Gearbox

HW19709XST

9 speeds, 9 forwards, 1 reverse gear, manual gearbox

Steering

Power   steering

Brake

Air   brake, engine exhaust brake

Clutch

430   diaphragm

Cab

Cabin

Howo   H77L Long top cab;

Can   be tipped forwardly, with inner A/C and double sleeper bed

Standard configuration

Air   container, Airbag seats, Fire   Extinguisher, Independent   heating device

Axle

Front axle

VGD95   self-adjusting arm front axle (drum)

Rear axle

HC16   self-adjusting arm double rear axle (drum) double reduction pneumatic brake, double   reduction driving axles with inter-wheel & inter-axle differential locks

Speed ratio

4.8

Tire specification

Tire specification

12.00R20 (Mixed   pattern/18PR)

standard tire,10 tires+1 spare part

Parameter

Economic speed/maximum speed   (km/h)

55～65/90

Max. Gradeability

45(%)

Rear overhang(mm)

725

Suspension

Front and rear reinforced multi leaf springs (9/12)

Frame(mm)

Double decker frame (8+8/300)

ABS control system

ABS (4S/4M)

Electrical system

NANO electrical system

Saddle

90 # Hercules Saddle

Front bumper

High mounted bumper (metal)

Gas storage system

Aluminum alloy gas storage cylinder

Alarm device

Reverse buzzer
