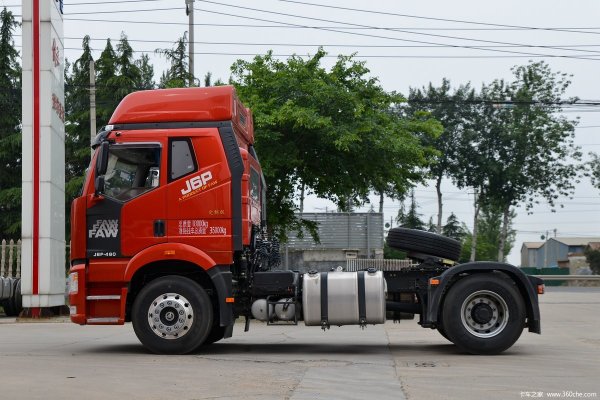

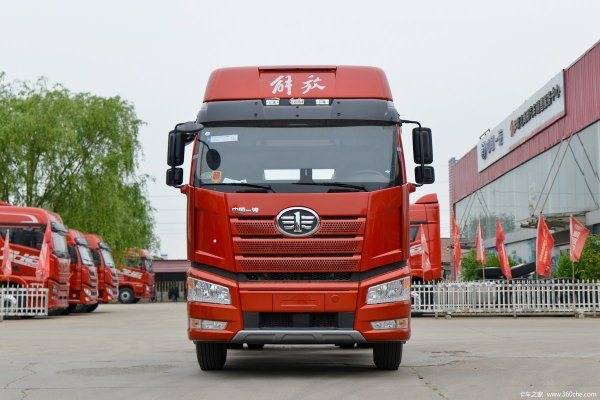

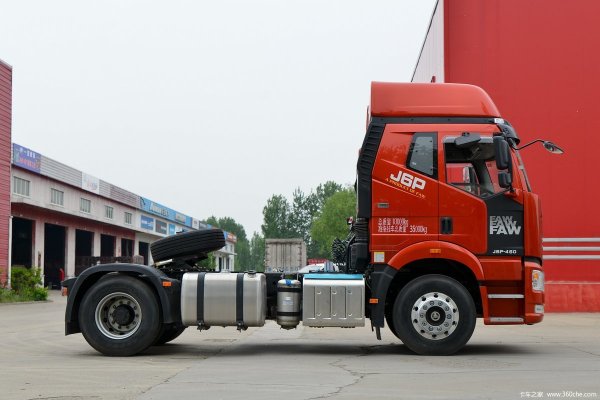

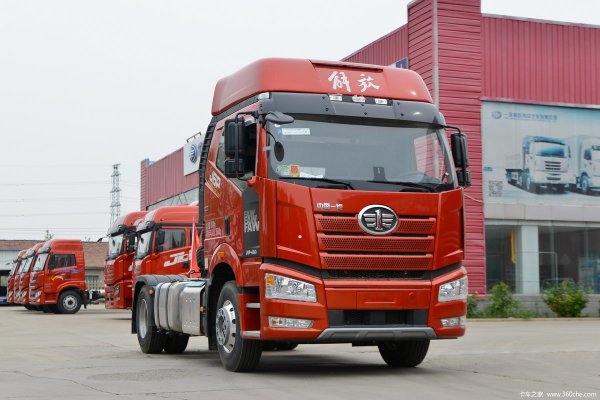

China Faw J6P Tractor Truck 4x2 10 Wheels 390//420//460//550HP Tractor For Sale
No.: CA4180P66K24E5
Vehicle Type: Tractor Head
Brand Name: FAW
Person in charge: Marc Zhou
Cel: 8617664086916
Whatsapp: 8617664086916
E-mail: sales3@chinatruk.cc
FREE GET QUOTE
Details
Main Technology Parameter | |
Model name | FAW J6P Tractor truck |
Model | CA4180P66K24E5 |
Driving type | LHD/ RHD |
Traction type | 4x2 |
Color | optional |
Weights | |
Gross Vehicle Weight(kg) | Approx.7000 |
Dimensions | |
Wheelbase(mm) | 3600 |
Overall dimension(mm) | Approx. 6300×2500×3800 |
Engine | |
Engine model | CA6DM2-46E52(FCRI+SCR) 460HP |
Emission standard | Euro 5 |
Engine type | 4 stroke water-cooled, inter-cooling |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 11.64 / Diesel |
Max. output (kw) | 300 |
Fuel Tanker（L） | 400 steel fuel tank |
Drive Line | |
Gearbox | ZF16S2230TO |
16 forwards, 2 reverse gear, manual geabox | |
Maximum input torque | 1900N.m |
Steering | Power steering |
Brake | Air brake, engine exhaust brake |
Clutch | 430 diaphragm |
Cab | |

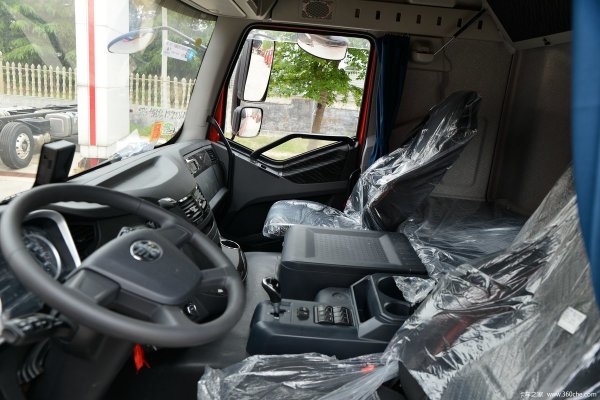

Cabin | New J6P fully floating flat top row half cab, Mechanical damping seat, Can be tipped forwardly, with inner A/C and double sleeper bed |
Standard configuration | Two point spiral spring suspension at the rear of the cab Metal bumper |
Axle | |
Front axle | 2055 front axle |
Rear axle | Cast iron improved wheel reduction axle double reduction pneumatic brake, double reduction driving axles with inter-wheel & inter-axle differential locks |
axle ratio | 4.111 |
Tire specification | |
Tire specification | 12R22.5 tubeless tyre standard tire,6 tires+1 spare part |
Parameter | |
Economic speed/maximum speed(km/h) | 45～75/90 |
Max. Gradeability | 45(%) |
Rear overhang(mm) | 890 |
Saddle | Ф 90 |
Suspension | Leaf spring, 12/12 |
Frame(mm) | 300×80×8 |
Color | Customized |
