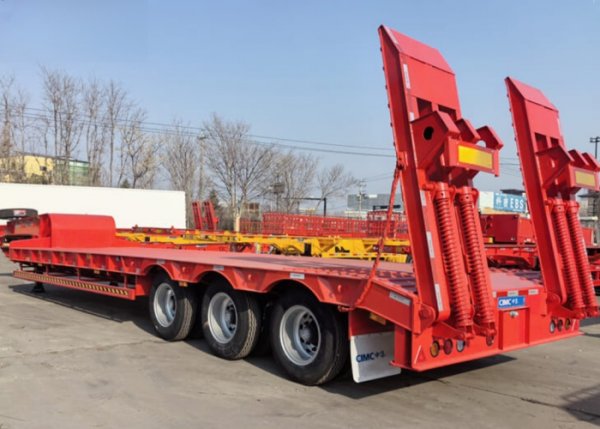

CIMC 3 Axles 50T Lowbed Trailer for Transporting Excavator
No.:
Vehicle Type: Low-bed Semi-trailer
Brand Name: CIMC
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
| Name | 2 Axles Lowbed Trailer | 3 Axles Lowbed Trailer | 4 Axles Lowbed Trailer |
| Overall Size | 12500*3000*1550 mm(customizable) | 13000*3000*1550 mm(customizable) | 14000*3000*1550mm(customizable) |
| Axles | 2 Axles | 3 Axles | 4 Axles |
| Unit axle capacity | 13/16/20 Tons | 13/16/20 Tons | 13/16/20 Tons |
| Payload | 40 Tons | 60 Tons | 80 Tons |

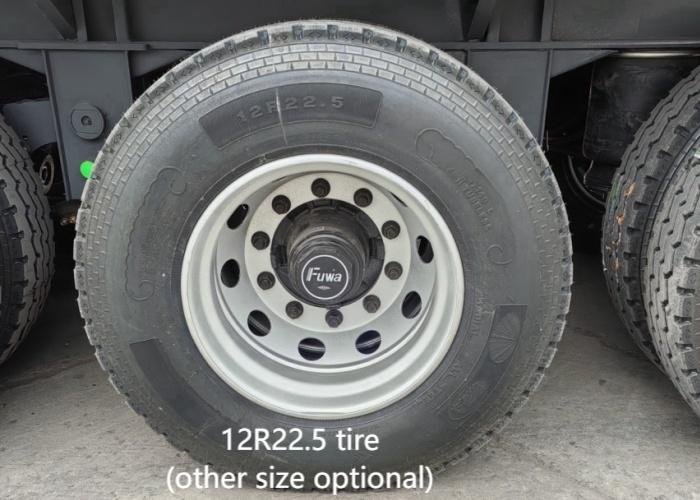

| Tires | 12R22.5 ; 11R22.5;10R22.5;315/80R22.5; 11.00R20; 12.00R20 brand can be optional | ||
| Function | Transport excavators, bulldozers, loaders, other heavy duty vehicles or machines etc. | ||
| Material | Carbon steel | ||
| Main beam | Height 500mm,top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm | ||
| Platform | 3-5mm diamond plate | ||
| King pin | 50#(2")/90#(3.5") | ||

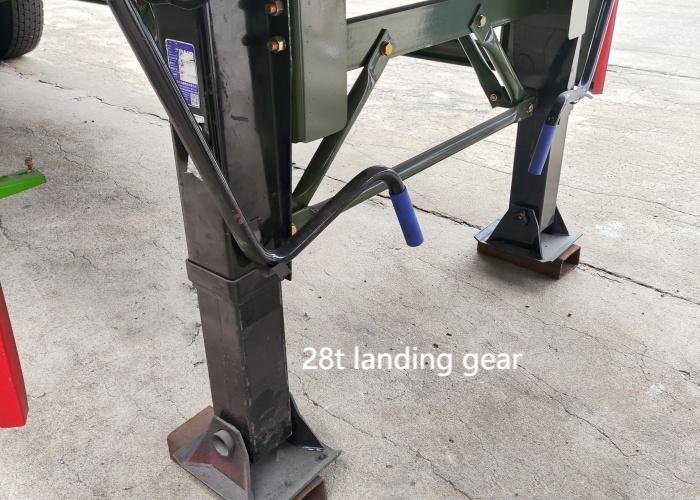

| Landing gear | 28 Ton two speed | ||
| Suspension system | Mechanical suspension or air suspension | ||
| Braking system | Dual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank | ||
| Tool Box | 1 Standard | ||
| Electrical system | Voltage: 24v | ||
| Socket: 7-way (7-wire harness) | |||
| Rear light with indicator, brake light and reflector, side light | |||
| Color | Any color will be available | ||
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats | ||
