CIMC 3 Axles 800mm Sidewall Drop-side Trailer for Sale
No.:
Vehicle Type: Sidewall semi-trailer
Brand Name: CIMC
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
Sidewall Trailer Introduction
A sidewall trailer, also known as a drop-side trailer, is versatile and practical in transporting goods that require easy access from the sides. It features sides that can be lowered or removed, making it ideal for loading and unloading bulky or heavy items in industries such as construction, agriculture, and logistics. . This design combines the benefits of an open trailer with the added convenience of adjustable side panels.
Key Features:
Lowerable Side Panels:
The sides of the trailer are hinged and can be dropped down (lowered) to provide full access to the cargo area from the sides. This makes loading and unloading quick and efficient, especially for bulky or irregularly shaped items.Open or Partially Enclosed Design:
While the sides can be lowered, they can also be raised and secured during transit to keep the cargo contained and protected. Some models may include removable gates or tailboards for added security.Easy Access:
The dropside design allows for loading and unloading from the sides, rear, or top, providing flexibility in various work environments.Customizable Options:
Dropside trailers can be customized with features such as reinforced floors, additional tie-down points, or hydraulic lifting mechanisms for the sides.
Advantages:
Ease of Loading and Unloading: The lowerable sides make it simple to load and unload cargo from multiple angles.
Flexibility: Suitable for a wide range of cargo types and industries.
Durability: Built to handle heavy loads and tough conditions.
Space Efficiency: The open design allows for efficient use of space when transporting large or irregularly shaped items. also can save freight for shipping.
Specification:
| Name | Sidewall Semi Trailer |
| Overall Size | 13000*2550*（2350-3250）mm(customizable according to sidewall and front board height) |
| Payload | 20-80 Tons (customizable) |
| Tare weight | 5-9.5t |
| Application | Transort furniture, household appliances, steel, wood, stone and other construction materials etc. |
| Axles | 2 Axles/3 Axles /4 Axles*13/16tons |
| Tire | 12R22.5, 13R22.5, 12.00R20, 315/80R22.5, 385/65R22.5 optional |
| Material | Carbon steel |
| Frame | Material Q345B, height 500mm,Top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm |
| Platform | 3mm diamond plate |
| Sidewall height | 600-1500mm(customized) |
| King pin | 50#(2")/90#(3.5") |
| Landing gear | 28 Ton two speed |
| Suspension system | Mechanical suspension or air suspension |
| Leaf Spring | 90mm*13mm*10/90mm*16mm*10 |
| Braking system | Dual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank |
| Spare tire carrier | 1 standard |
| Tool Box | 1 Standard |
| Electrical system | Voltage: 24v |
| Socket: 7-way (7-wire harness) | |
| Rear light with indicator, brake light and reflector, side light | |
| Color | Any color will be available |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
Company Introduction
Established in 2004, our company specializes in the export of trucks, semi-trailers, and construction machinery and truck parts etc. catering to a global clientele with a commitment to quality, reliability, and innovation. Over the years, we have built a strong reputation as a trusted partner in the commercial vehicle and heavy equipment industry, providing tailored solutions to meet the diverse needs of our customers worldwide.
Core Business Areas:
Trucks: We offer a wide range of trucks, including heavy-duty, medium-duty, and light-duty models, designed for various applications such as logistics, construction, and specialized transport. Our trucks are known for their durability, performance, and fuel efficiency.
Semi-Trailers: Our semi-trailer portfolio includes flatbed trailers, lowbed trailers, tanker trailers, and specialized trailers for specific industries. These trailers are engineered to handle heavy loads and challenging terrains, ensuring safe and efficient transportation.
Construction Machinery: We supply a comprehensive range of construction equipment, including excavators, bulldozers, loaders, and cranes. Our machinery is designed to deliver high performance and reliability in demanding construction environments.

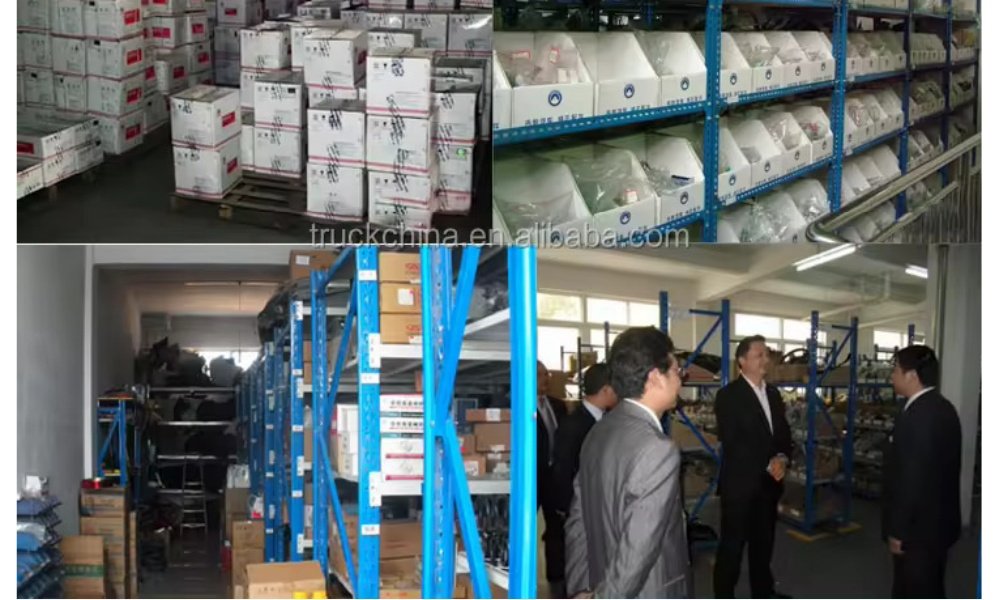

Truck Parts: We have our own spare parts departments, have strongproduction and distribution capability. We can satisfy yourdemand within 2-7days.We always do our best to solve theproblems, and put our customers' interests in the first placeAnd we can supply spare parts for many brands, such asSINOTRUK, BEIBEN, FAW, FOTON,IVECO, SHACMAN.SHANTUI. CIMC, DONGFENG etc.
Why Choose Us?
Extensive Industry Experience: With nearly two decades of expertise, we deeply understand the needs of our customers and the dynamics of the global market.
High-Quality Products: All our products are manufactured to international standards, ensuring superior quality and long-term reliability.
Customized Solutions: We work closely with our clients to provide customized vehicles and equipment tailored to their specific requirements.
Global Reach: Our products are exported to numerous countries across Asia, Africa, Europe, and the Americas, making us a truly global player.
Comprehensive Support: From pre-sales consultation to after-sales service, we offer end-to-end support to ensure customer satisfaction.
