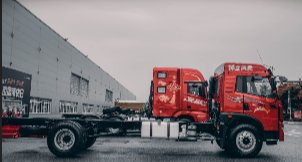

Qingdao Jiefang Dragon V2.0 200 HP 4X2 9.65m Cargo Truck
No.:
Vehicle Type: Light Cargo Truck
Brand Name: FAW
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Table 1: Vehicle Specifications
| Parameter | Value |
|---|---|
| Announcement Model | CA5180XXYPK8L7E6A90 |
| Type | Box Truck |
| Drive Configuration | 4X2 |
| Wheelbase | 7200mm |
| Box Length Class | 9.6 meters |
| Engine | Yuchai YCS04200-68 |
| Transmission | Fast 8JS75C |
| Rear Axle Ratio | 4.875 |
| Body Length | 11.995 meters |
| Body Width | 2.55 meters |
| Body Height | 3.995 meters |
| Front Track | 1914mm |
| Rear Track | 1860mm |
| Vehicle Weight | 8.6 tons |
| Rated Payload | 9.99 tons |
| Gross Vehicle Weight | 18 tons |
| Maximum Speed | 89 km/h |
| Origin | Qingdao, Liuzhou |
| Tonnage Class | Heavy Duty Truck |
| Driver's License | A1, A2, B2 |
| Approach Angle | 21 degrees |
| Departure Angle | 9 degrees |
| Front Overhang/Rear Overhang | 1.375/3.42 meters |
| Fuel Type | Diesel |
Table 2: Engine Parameters
| Parameter | Value |
|---|---|
| Engine Model | Yuchai YCS04200-68 |
| Brand | Yuchai |
| Common Name | Yuchai 4-Cylinder |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 4.16L |
| Emission Standard | National VI |
| Maximum Output Power | 147kw |
| Maximum Horsepower | 200 hp |
| Maximum Torque | 720N·m |
| Maximum Torque Speed | 1200-1600RPM |
| Rated Speed | 2300RPM |
| Engine Type | High-pressure Common Rail + EGR + DOC + DPF + SCR + ASC |
Table 3: Cargo Box Parameters
| Parameter | Value |
|---|---|
| Box Type | Box Type |
| Box Length | 9.65 meters |
| Box Width | 2.45 meters |
| Box Height | 2.45 meters |
