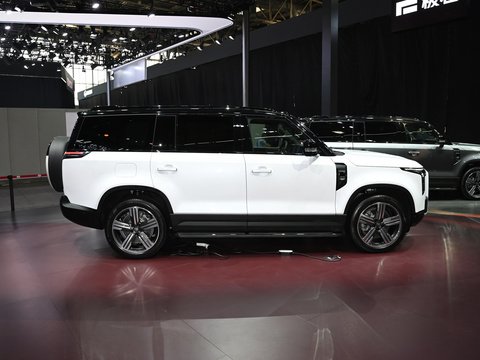

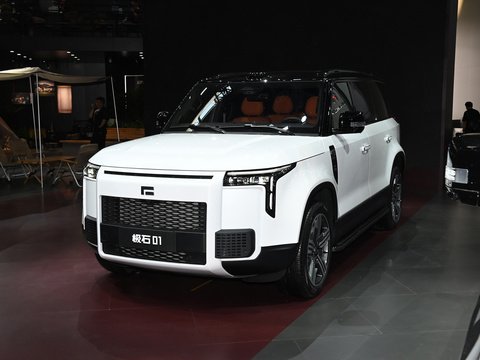

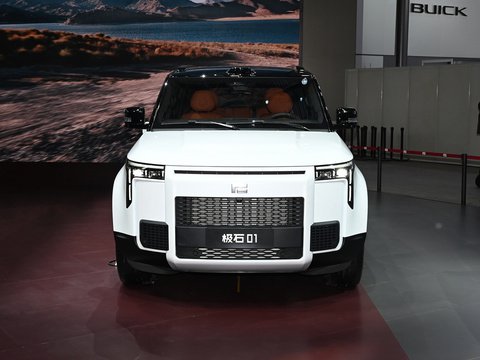

JISHI Rox 01 Extended Range Car All-purpose 7-seat 2023 Hybrid EV
No.:
Vehicle Type: Electric Car
Brand Name: Others
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
| Basic information | |
| Brand name | JISHI |
| Model | ROX01 2023 All-purpose 7-seat Version |
| LEVEL | Middle-large SUV |
| Power Type | Extended range |
| Emission standard | Euro Ⅵ |
| WLTC pure electric cruising range (km) | 235 |
| CLTC pure electric cruising range (km) | 282 |
| Battery fast charging time (hours) | 0.48 |
| Battery slow charging time (hours) | 8.6 |
| Battery fast charging capacity range (%) | 0-80 |
| Battery slow charging capacity range (%) | 0-100 |
| Maximum power(kW) | 350 |
| Maximum torque (N·m) | 740 |
| Transmission | Electric vehicle single speed gearbox |
| Body structure | 5 doors 7 seats SUV |
| Engine | 1.5T 152hp L4 |
| Motor(Ps) | 476 |
| Length*width*height (mm) | 5050*1980*1869 |
| Official 0-100km/h acceleration | 5.5 |
| Maximum speed (km/h) | 190 |
| WLTC comprehensive fuel consumption (L/100km) | 7.95 |
| Curb weight (kg) | 2660 |
| Maximum full load mass (kg) | 3189 |
| Total mass of quasi-trailer (kg) | 750 |
| Body | |
| Length(mm) | 5050 |
| Width(mm) | 1980 |
| Height(mm) | 1869 |
| Wheelbase(mm) | 3010 |
| Front wheel track(mm) | 1692 |
| Rear wheel track(mm) | 1701 |
| Minimum ground clearance with full load (mm) | 205 |
| Approach angle | 22.2 |
| Departure angle | 25.1 |
| Longitudinal passage angle (°) | 19.7 |
| Maximum climbing angle (°) | 45 |
| Minimum turning radius (m) | 5.98 |
| Maximum wading depth (mm) | 700 |
| Body structure | SUV |
| Door opening method | Swing door |
| Number of doors | 5 |

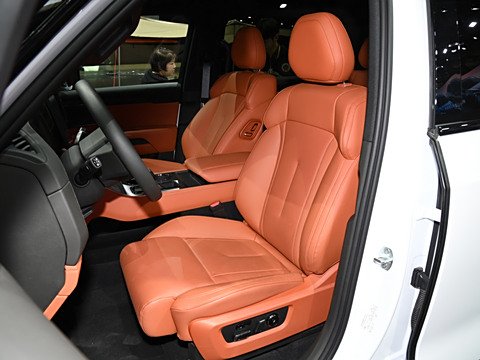

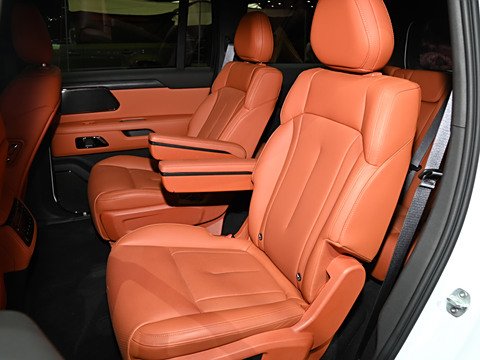

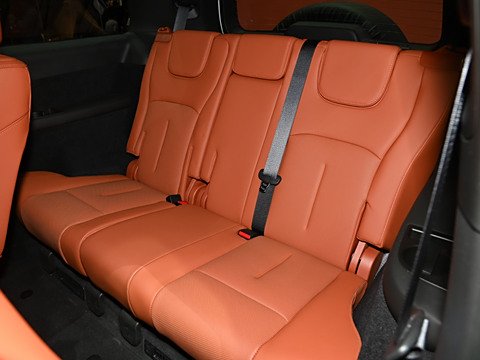

| Number of seats | 7 |
| Fuel tank volume (L) | 70 |
| Engine | |
| Engine model | B15F |
| Displacement (mL) | 1496 |
| Displacement (L) | 1.5 |
| Intake form | Turbocharging |
| Engine layout | Horizontal |
| Cylinder arrangement | L |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Valve distributing mechanism | DOHC |
| Total engine horsepower (Ps) | 152 |
| Total engine power (kW) | 112 |
| Maximum net power (kW) | 110 |
| Energy type | Extended range |
| Fuel grade | 95# |
| Fuel supply method | Direct injection |
| Cylinder head material | Aluminum alloy |
| Cylinder material | Aluminum alloy |
| Emission standard | Euro Ⅵ |
| Electric Motor | |
| Front motor model | TZ210XS000 |
| Rear motor model | TZ220XS000 |
| Motor Type | Permanent magnet/synchronous |
| Total motor power (kW) | 350 |
| Total motor horsepower (Ps) | 476 |
| Total motor torque (N-m) | 740 |
| Maximum power of front motor (kW) | 150 |
| Maximum torque of front motor (N-m) | 340 |
| Maximum power of rear motor (kW) | 200 |
| Maximum torque of rear motor (N-m) | 400 |
| System comprehensive power (kW) | 350 |
| System comprehensive power (Ps) | 476 |
| System comprehensive torque (N·m) | 740 |
| Number of drive motors | Dual motors |
| Motor layout | Front+rear |
| Battery Type | Ternary lithium battery |
| Battery brand | CATL |
| Battery cooling method | Liquid cooling |
| WLTC pure electric cruising range (km) | 235 |
| CLTC pure electric cruising range (km) | 282 |
| WLTC comprehensive range (km) | 1115 |
| CLTC comprehensive range (km) | 1338 |
| Battery energy (kWh) | 56.01 |
| Fast charging function | Support |
| Fast charging power (kW) | 100 |
| Battery fast charging time (hours) | 0.48 |
| Battery slow charging time (hours) | 8.6 |
| Battery fast charging capacity range (%) | 0-80 |
| Battery slow charging capacity range (%) | 0-100 |

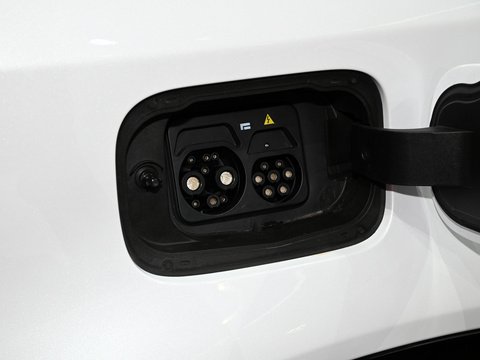

| Slow charging interface location | Right rear |
| Fast charging interface location | Right rear |
| External AC discharge power (kW) | 2.2 |
| Transmission | |
| Abbreviation | Electric vehicle single speed gearbox |
| Number of gears | 1 |
| Gearbox type | Fixed ratio gearbox |
| Chassis steering | |
| Drive mode | Dual motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension |
| Assist type | Electric assist |
| Body structure | Load-bearing |
| Wheel brake | |
| Front brake type | Ventilated disc |
| Rear brake type | Ventilated disc |
| Parking brake type | Electronic parking |

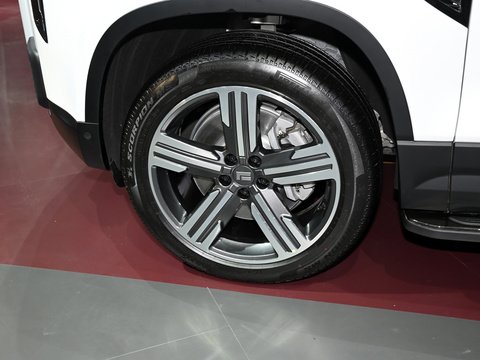

| Front tire specification | 265/50 R20 |
| Rear tire specification | 265/50 R20 |
