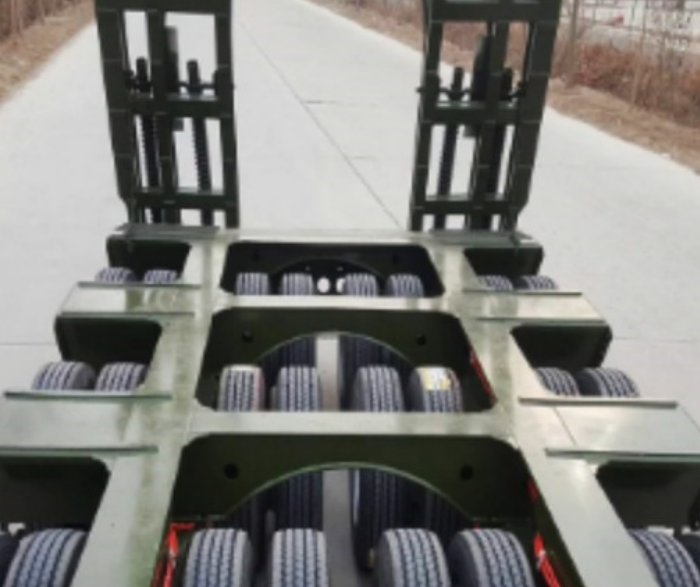

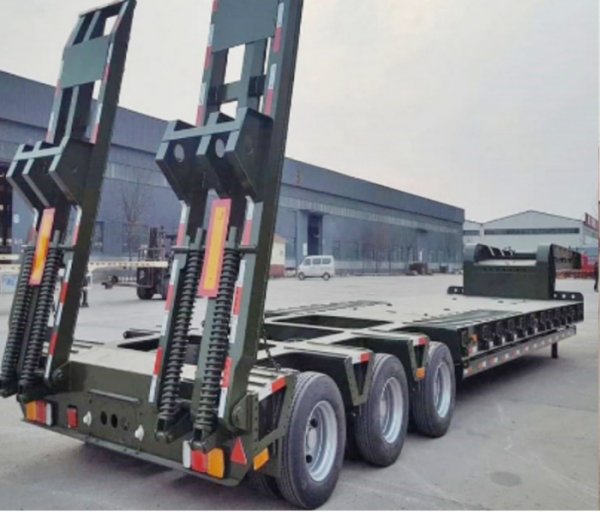

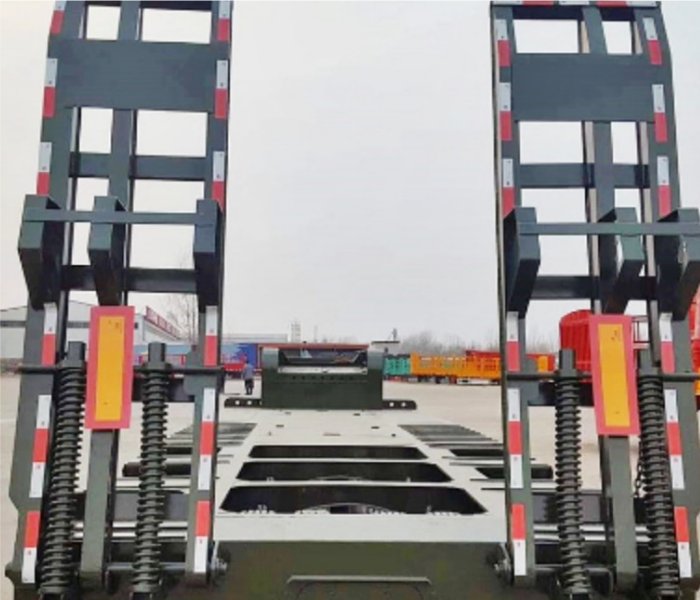

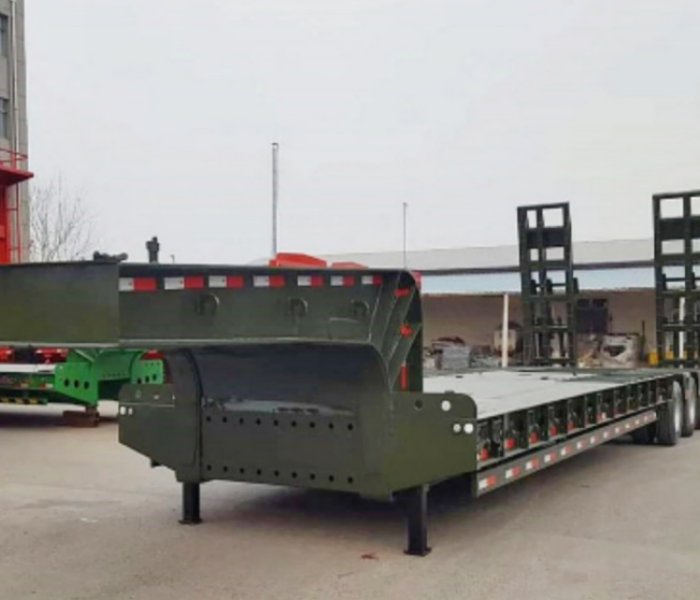

KAILAI 3 Lines 6 Axles Lowbed Trailer 120t Payload

No.:

Vehicle Type: Low-bed Semi-trailer

Brand Name: KAILAI

KAILAI

Person in charge: Stacy Wong

Cel: 8617657099215

Whatsapp: 0086 17657099215

E-mail: sales5@chinatruck.cc

FREE GET QUOTE
Stacy Wong

Details

Feel free to send enquiry to us, we will recommend suitable style according to your requirements!


KAILAI 3 Lines 6 Axles 120t Payload Lowbed Trailer Lowboy Heavy Duty Truck Semi Trailer for Sale

NameLine Axles Lowbed Trailer
Overall Size16000*3000*1550 mm(customizable)
Axles2 lines 4 axles/3 lines 6 axles/4 lines 8 axles/more
Payload80/120/160/more Tons

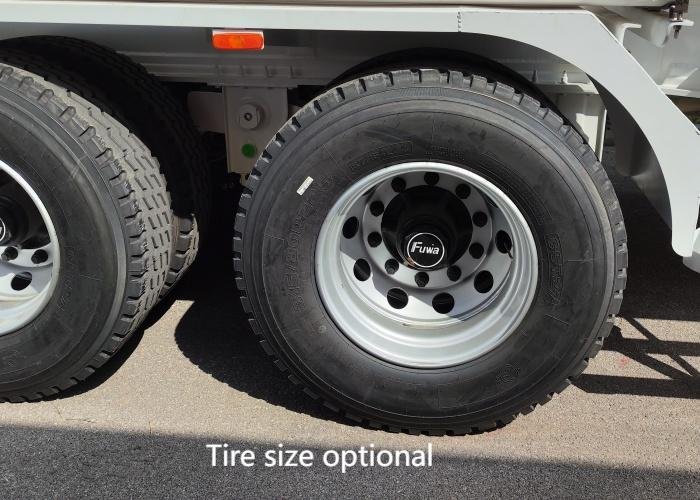

Tires 12R22.5 ; 11R22.5;10R22.5;315/80R22.5; 11.00R20; 12.00R20 brand can be optional
FunctionTransport heavy duty equipment or machines etc.
MaterialCarbon steel
Main beamHeight 500mm,top flange thickness 10-16mm,bottom flange is 12-18mm,middle web 5-10 mm
Platform3-5mm diamond plate
King pin50#(2")/90#(3.5")

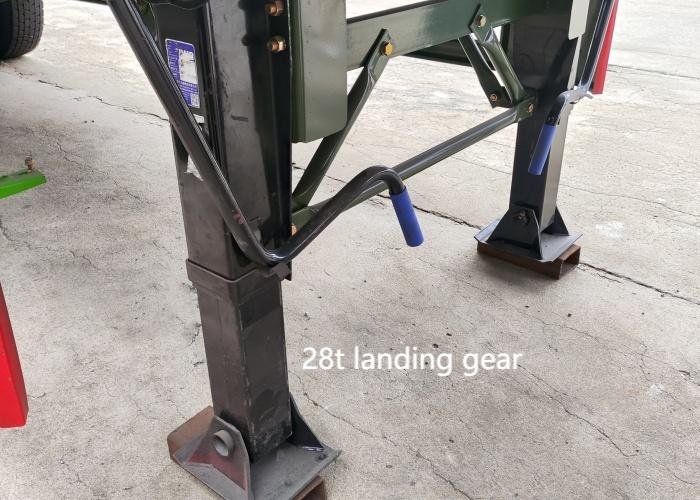

Landing gear28 Ton two speed
Suspension systemMechanical suspension or air suspension
Braking systemDual line pneumatic braking system, T30/30+T30 Spring brake chamber, standard air tank
Tool Box1 Standard
Electrical systemVoltage: 24v
Socket: 7-way (7-wire harness)
Rear light with indicator, brake light and reflector, side light
ColorAny color will be available
PaintingSandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats
