Model name

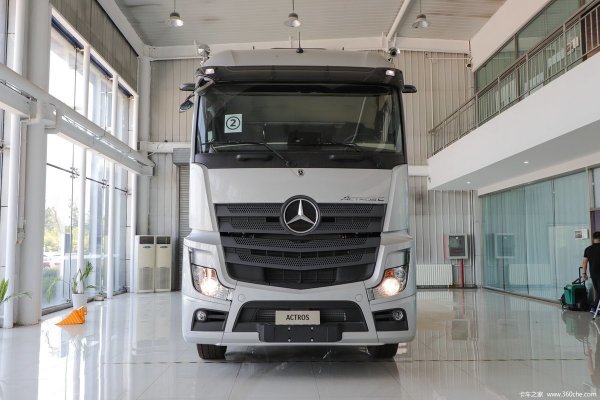

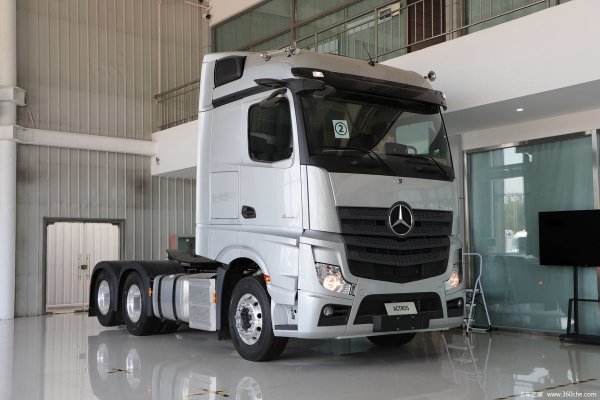

Mercedes Benz Actros

Model number

  BJ4266Y6DHL-A2

Driving type

Left hand drive

Traction type

6X4

Number of axles

3

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.55000

Gross Combination Weight (kg)

Approx.9300

Dimensions

Wheelbase(mm)

3400+1350mm

Overall dimension(mm)

Approx. 7100×2550×3980

Engine

Engine model

Benz OM471LA.6CB-01 530HP

Emission standard

Euro 5

Fuel type

Diesel oil

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

Straight-6 cylinders

Displacement(L)

12.8L / Diesel

Max. output (kw)

390kW

Fuel tank

Left dual chamber (400L+100L) heating oil tank,   right 400L heating auxiliary oil

Drive Line

Gearbox

Benz G211-12 PowerShift3

12 speeds, 12 forwards, 4 reverse gear,

AMT geabox

Braking method

Whole vehicle disc brake;

Independent trailer braking

Cab

Cabin

High ceiling flat floor; leather steering wheel;   Front windshield curtains; ambient lighting; center carpet; 220V/1000W   inverter socket; large capacity car refrigerator; double sleeper; sleeper   blinds; rear window of the cab; rear window blind; Compressed air interface; Manual   battery switch; 12/19 ton jack; portable dust removal air gun;

Air suspension lifting controller;

Deflector with side deflector;

Can be tipped forwardly(Electric flip)

Cab suspension

Four point airbag suspension

Number of passengers allowed

2

Number of seat rows

Half row

Driver's seat form

Airbag shock absorption seat

Skylight

Electric inclined sunroof

Axle

Front axle load

6500kg

Rear axle load

11500kg

Speed ratio

2.846

Tire specification

Tire specification

315/70R22.5

Number of tires

6+1 spare part

Parameter

Maximum   speed (km/h)

110

Max. Gradeability

45(%)

Suspension

Front   2 and rear airbags suspension(2\-)( Single   axle four airbags)

Front   suspension and rear suspension

1430/920

Front track   width

2060

Rear track   width

1805

Approaching   departure angle

14/19

Saddle

90# JOST saddle

Bumper

Low bumper

Fender

Integral fender

Battery

2X12V/220Ah

Urea tank

90L urea tank

Safety   devices

Electronic brake system EBS (including ABS and   ASR); Emergency tire protection   device;

Benz fifth generation active brake assist   system (pedestrian recognition);

Benz fifth generation active brake system;

Steering tire pressure monitoring

sensor

Light sensor; rain sensor

Cruise   system

ACC full speed adaptive cruise control

Air intake   system

Road version intake system
