Model name

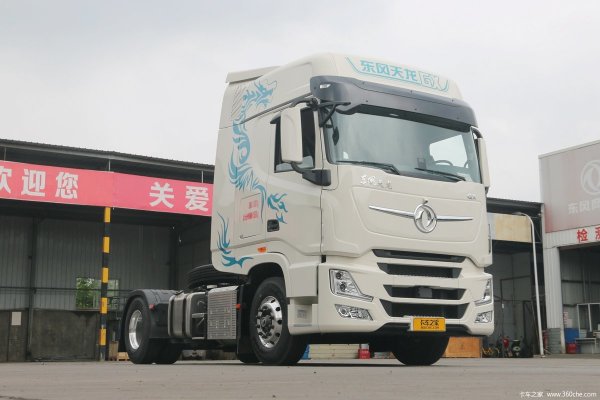

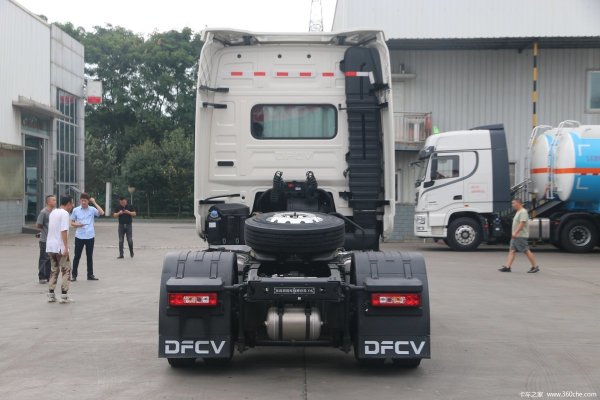

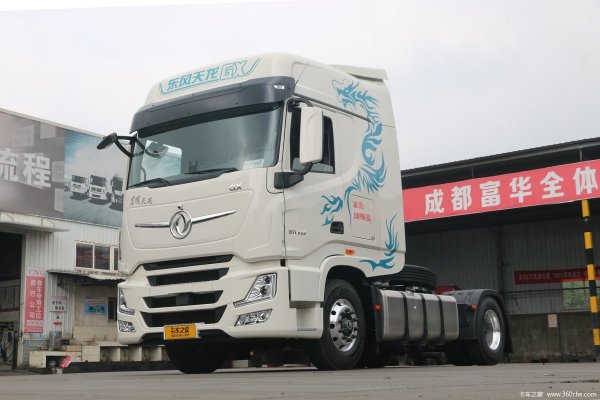

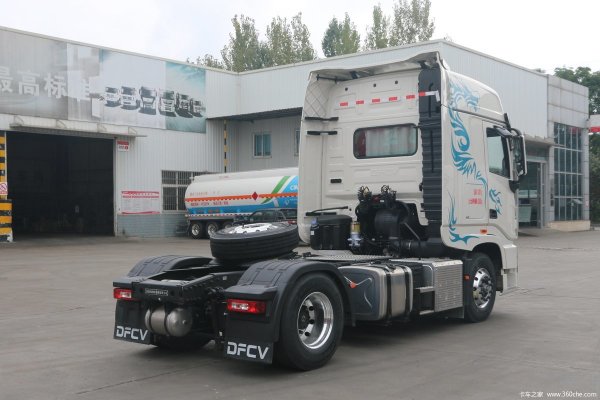

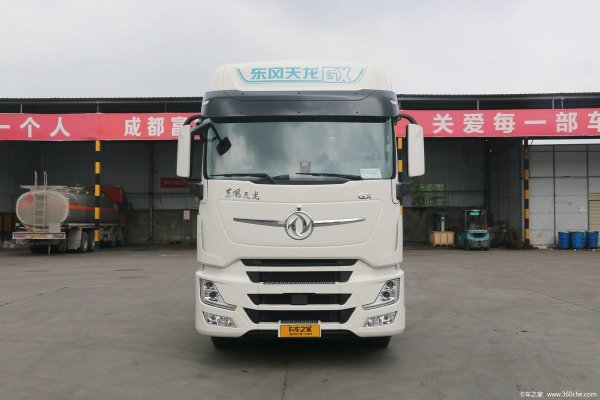

DNGFENG TIANLONG GX TRACTOR TRUCK

Model number

DFH4180C2

Driving type

Left hand drive

Traction type

4X2

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.8270

Gross Combination Weigh(kg)

Approx.41870

Total traction mass(kg)

Approx.33600

Dimensions

Wheelbase(mm)

4000mm

Overall dimension(mm)

Approx. 6360×2550×3960

Engine

Engine model

Dongfeng Cummins；

Z14NS6B520；

520HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement

13.48L / Diesel

Torque

2500N.m

Maximum torque speed

1000-1500rpm

Rated speed

1800rpm

Max. output

388kW

Fuel Tanker

Aluminum alloy（850L ➕ 300L）

Drive Line

Gearbox

ECE0

ECE0-26N112C OD+Voith Retarder

16 forwards, 2 reverse gear,

AMT gearbox

Steering

Power steering, Bosch steering gear

Brake

Front and rear discs brake

Cab

Cabin

Dongfeng Tianlong GX cab, High roof, double   sleeper, airbag seats

Can be tipped forwardly, with inner A/C-Automatic   adjustment

One and a half rows

Ride for 2

Standard configuration

Air container,

Equipped with air deflector and side air   deflector

Axle

Front axle

Axle load 6500kg

Rear axle

465-Axle load 11500kg

with inter-wheel & inter-axle differential   locks

Double reduction pneumatic brake

Speed ratio

3.42

Tire specification

Tire specification

Michelin   brand

Aluminum alloy hub

Front and rear maintenance free

295/80R22.5

6 tires+1 spare part

With   front tire pressure monitoring/

front   wheel explosion-proof emergency

Parameter

Maximum   speed (km/h)

100

Max.   Gradeability

45(%)

Front track   width

2040mm

Rear track   width

1860mm

Suspension

(2/-   ) (4 airbags)

Frame(mm)

TGA technology frame - version B

Saddle

50# JOST saddle

Bumper

Low bumper (non-metallic)

Fender

Integral fender

Power System

220Ah

Safety   devices

With   LDW+FCW

With   ESC/EBS/AEBS

Inverter

1000W

Imaging   system

Environmental imaging

exhaust   system

Standard version exhaust system
