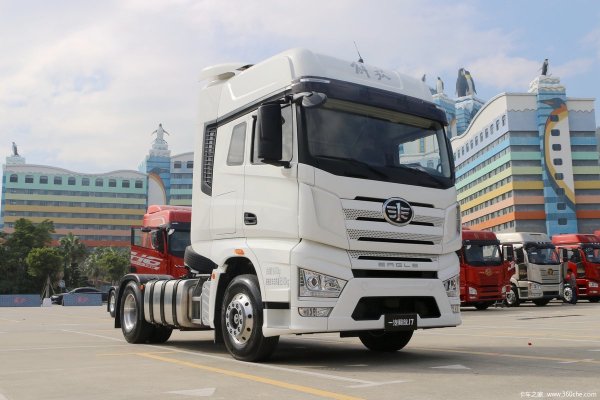

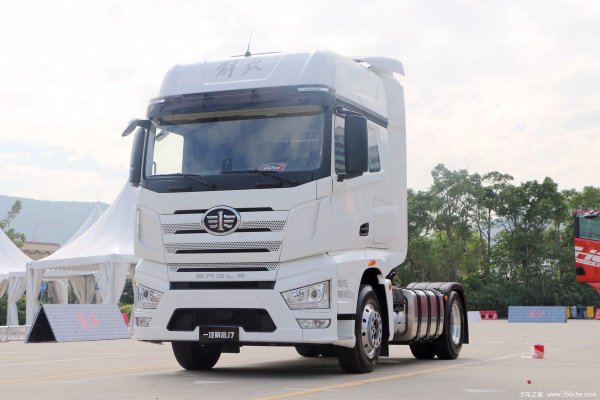

New Faw J7 Tractor Truck 4X2 550HP Tractor For Sale
No.: Xeno_35
Vehicle Type: Tractor Head(Ru)
Brand Name: FAW
Person in charge: Marc Zhou
Cel: 8617664086916
Whatsapp: 8617664086916
E-mail: sales3@chinatruk.cc
FREE GET QUOTE![_20230914234530](res/en/20230914/90bbf1de4ed976d9.jpg)
Details
Main Technology Parameter | |
Model name | FAW J7 Tractor truck |
Model | CA4180P77K25E5 |
Driving type | LHD/ RHD |
Traction type | 4x2 |
Color | optional |
Weights | |
Gross Vehicle Weight(kg) | Approx.7000 |
Dimensions | |
Wheelbase(mm) | 4000 |
Overall dimension(mm) | Approx. 6300×2500×3800 |
Engine | |
Engine model | CA6DM3-55E52(FCRI+SCR) 550HP |
Emission standard | Euro 5 |
Engine type | 4 stroke water-cooled, inter-cooling |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 12.4 / Diesel |
Max. output (kw) | 404 |
Fuel Tanker(L) | 700L+700L |
Drive Line | |
Gearbox | ZF-12TX2621TD, AMT gearbox |
12 forwards, 2 reverse gear | |
Retarder | ZF Friedrichshafen hydraulic retarder |
Maximum input torque | 1900N.m |
Steering | Power steering |
Brake | Air brake, engine exhaust brake |
Clutch | 430 diaphragm |
Cab | |

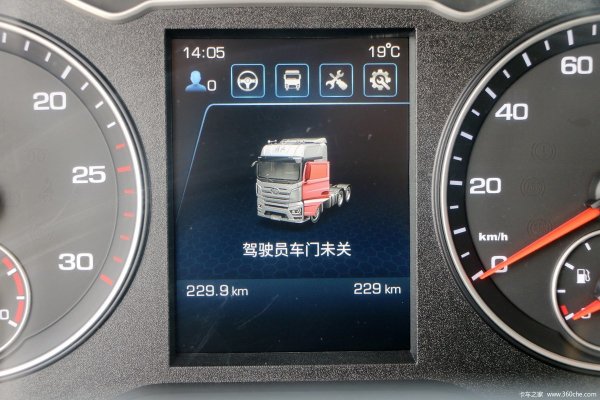

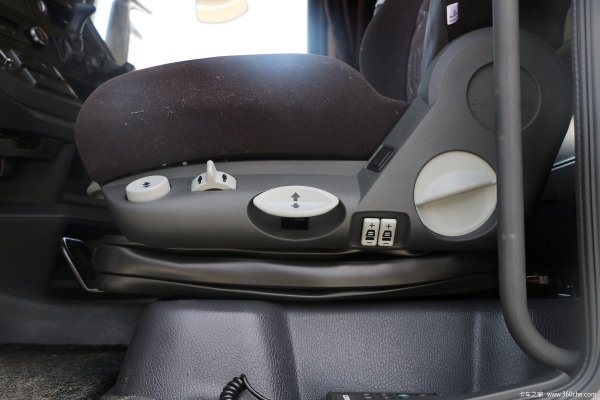

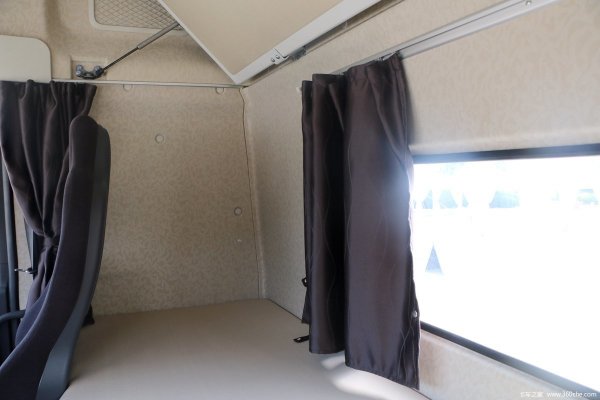

Cabin | J7 high roof large row semi flat floor cab // electric sunroof // top cover clothes drying pole // sunshade // electric glass lifting // electric heated rearview mirror // full LCD instrument panel // 8-inch Beidou compatible touch type car terminal // leather multifunctional steering wheel // with trailer braking // 220V car power supply (1000W inverter) // integrated control switch // driver's high-end air seat (Grammer, adjustable deep sponge seat, armrest, ventilation and heating function) // Front passenger mechanical damping seat // high-end sleeper // large air deflector // lower sleeper with drawers and guardrails // driver's side window sunshade Can be tipped forwardly, with inner A/C and double sleeper bed |
Standard configuration | Two point spiral spring suspension at the rear of the cab Metal bumper |
Axle | |
Front axle | 2055 front axle |
Rear axle | Cast iron improved wheel reduction axle double reduction pneumatic brake, double reduction driving axles with inter-wheel & inter-axle differential locks |
axle ratio | 2.688 |
Tire specification | |
Tire specification | 295/80R22.5 tubeless tyre standard tire,6 tires+1 spare part |
Parameter | |
Economic speed/maximum speed(km/h) | 45~75/90 |
Max. Gradeability | 45(%) |
Rear overhang(mm) | 890 |
Saddle | Ф50 |
Suspension | 2/- (4 airbags) |
Safe system | EBS+ESC// FCW+LDW// ACC+AEBS// |
Frame(mm) | 300×80×8 |
Color | Customized |
