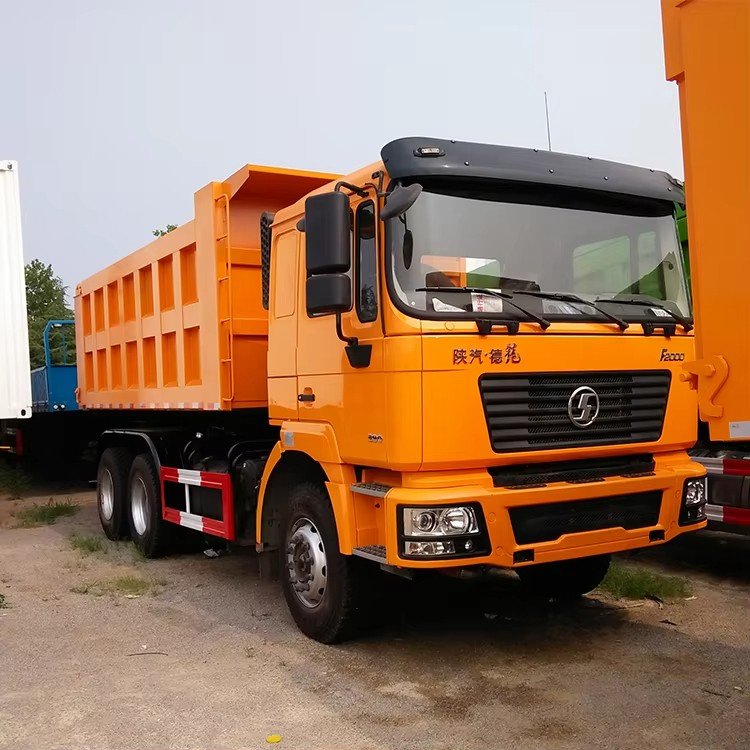

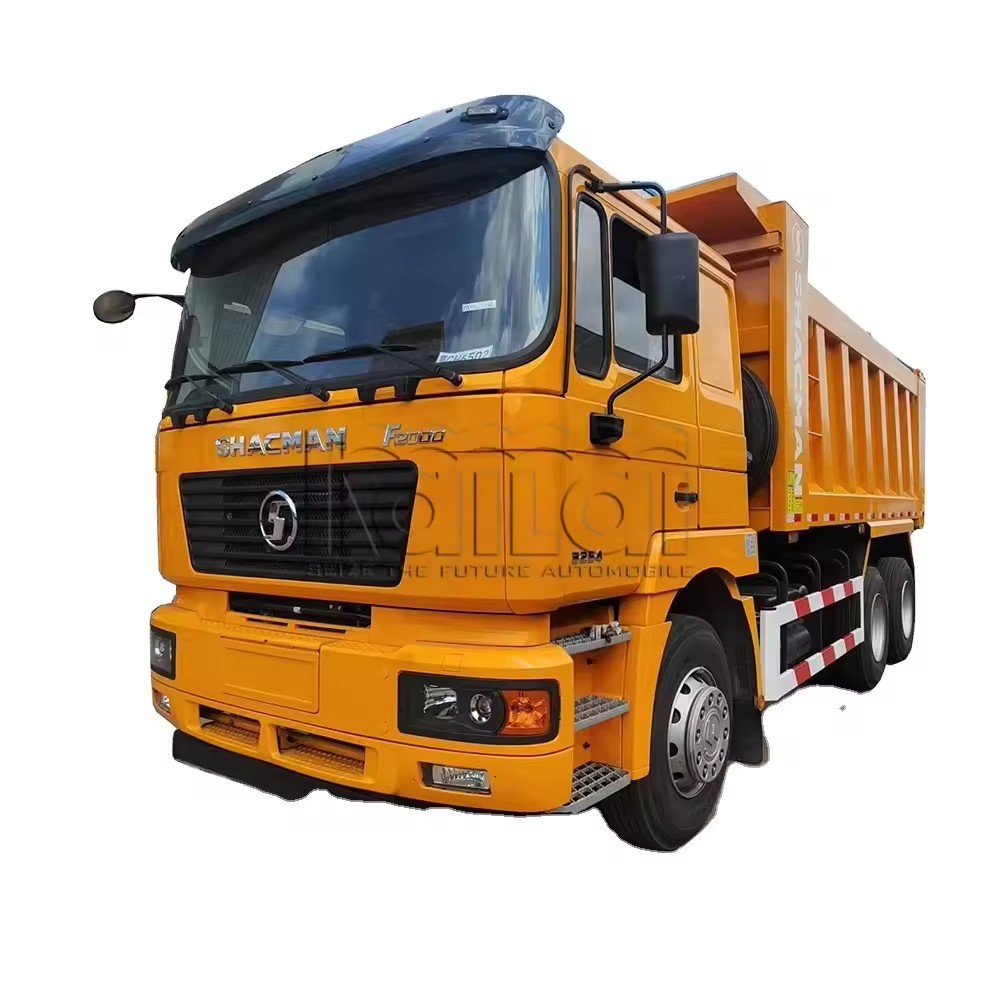

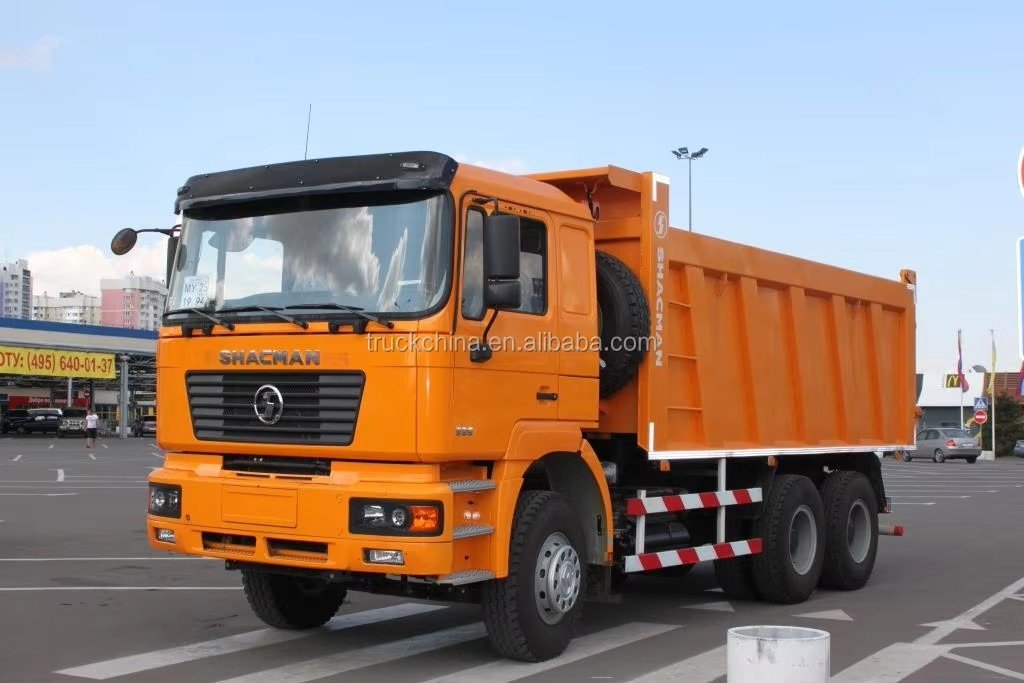

New SHACMAN F2000 6×4 Dump Truck SX3255JM384

Overview

The New SHACMAN F2000 6×4 Dump Truck is a versatile and powerful vehicle designed for demanding construction, mining, and transportation tasks. With its robust design, powerful engine, and advanced features, this truck is engineered to handle extreme conditions while ensuring reliability and efficiency.

Key Features

Model: SX3255JM384
Size: 8700 x 2550 x 3500 mm
Box Size: 5200 x 2300 x 1350 mm, with 8mm thickness at the bottom and 6mm at the sides
Lifting System: Middle-lift
Load Capacity: 30 Tons
Tires: 12R22.5, 10+1pcs, with rim trim cover
Wheelbase: 3775+1400mm
Axle: MAN7.5T front axle, MAN16T rear axle, speed ratio:5.73
Engine: WP10.290E32, Euro II, Diesel
Engine Power: 213KW (290HP) @ 2200 tr/min
Max Torque: 1160 N.m @ 1200-1600 tr/min
Air Intake Type: Turbo-charge and inter-cool
Cylinder Alignment: 6 cylinders in line
Minimum Fuel Consumption: ≤ 196/ kW.h
Fuel Injection Type: Direct injection
Transmission: 9JS135 Transmission with QH50 power take-off, 9 forward speeds + 1 reverse speed
Fuel Tank: 380L Steel fuel tank
Braking System: Parking brake (emergency brake) with spring energy, compressed air operating on rear wheels
Main Beam: Double-layer frame 850×300（8+7）
Other Features: Hydraulic main seat, elastic headrest, four-point hydraulic suspension, Hot zone version air conditioner, Jiekasaier technology compressor, Manual window shaker, Manual sunroof, Manual cab tilting, Telescopic shaft manipulation, Six-channel ABS, Ordinary air filter, Copper water tank, FRP bumper, Front lower protection, Driving recorder, 165Ah maintenance-free battery, Cruise control system, Speed limit 90km/h, Seat belt not fastened reminder, Reflective vest, SHACMAN logo, Full English logo

Detailed Specifications

表格

复制

Specification	Details
Model	SX3255JM384
Size (mm)	8700 x 2550 x 3500
Box Size (mm)	5200 x 2300 x 1350, 8mm at the bottom, 6mm at both sides
Lifting System	Middle-lift
Load Capacity	30 Tons
Tires	12R22.5, 10+1pcs, rim trim cover
Wheelbase	3775+1400mm
Axle	MAN7.5T front axle, MAN16T rear axle, speed ratio:5.73
Engine Model	WP10.290E32
Emission Standard	Euro II
Engine Type	Diesel
Engine Power	213KW (290HP) @ 2200 tr/min
Max Torque	1160 N.m @ 1200-1600 tr/min
Air Intake Type	Turbo-charge and inter-cool
Cylinder Alignment	6 cylinders in line
Fuel Consumption	≤ 196/ kW.h
Fuel Injection	Direct injection
Transmission	9JS135 with QH50 power take-off, 9F+1R
Fuel Tank	380L Steel
Braking System	Parking brake (emergency brake) with spring energy, compressed air on rear wheels
Main Beam	Double-layer frame 850×300（8+7）
Cabin Features	Hydraulic main seat, elastic headrest, four-point hydraulic suspension, Hot zone version air conditioner, Jiekasaier technology compressor, Manual window shaker, Manual sunroof, Manual cab tilting, Telescopic shaft manipulation
Safety Features	Six-channel ABS, Ordinary air filter, Copper water tank, FRP bumper, Front lower protection, Driving recorder, 165Ah maintenance-free battery, Cruise control system, Speed limit 90km/h, Seat belt reminder, Reflective vest
Logos	SHACMAN logo, Full English logo

Applications

Construction site transportation
Mining operations
Heavy cargo hauling
Infrastructure projects
