SHACMAN F3000 12 Wheels 380hp Lorry Truck Chassis for Sale
No.:
Vehicle Type: Cargo Truck
Brand Name: SHACMAN
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details

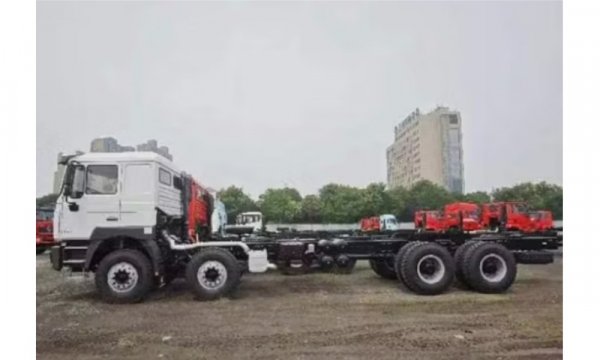

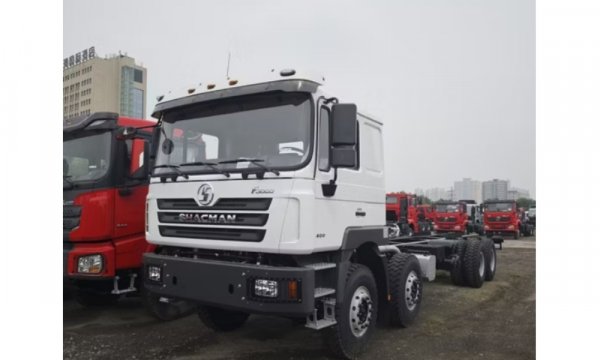

SHACMAN F3000 12 Wheels 380hp Lorry Truck Chassis
SHACMAN 8×4 cargo truck chassis is an extended version with a large loading capacity of up to 40 tons, the box dimension can be customized according to your requirement, widely used in the fields of logistics, agriculture, construction, etc.
| Basic Information | Model | SX1315JT456 |
| Drive type | 8x4 | |
| Driving mode | Right Hand Driving | |
| Horsepower(ps) | 380 | |
| Dimension | Length Estimated(mm) | 12000 |
| Width Estimated (mm) | 2490 | |
| Height Estimated (mm) | 3500 | |
| Frame(mm) | 850x300(8+5) | |
| Wheelbase | 1800+4575+1400 | |
| Rear hang | 2300 | |
| Recommend size of Cargo body | Cargo body size (mm) | 9500X2450X600 |
| Bucket capacity (cubic meters) | 13.965cbm | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission standard | Euro Ⅱ | |
| Axles | Brand | MAN |
| Front axle(kg) | 7500 | |
| Rear axle(kg) | 13000 (Single reduction) | |
| Ratio | 4.769 | |
| Transmission | 10JSD180 | |
| Suspension | Front and rear multi leaf spring | |
| Tyre | 12.00R20（12+1) Pieces | |
| Tank capacity | 400L | |
| Tank Material | Aluminum alloy | |
| Electrics | 24V | |
| Others | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioning, electric window shaker, manual flip, ordinary air filter, metal bumper, hinged boarding pedal, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, full English logo | |
