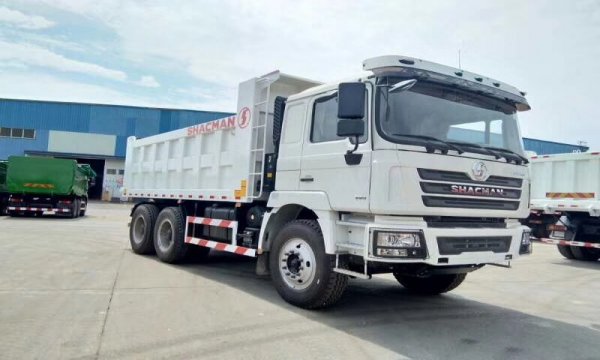

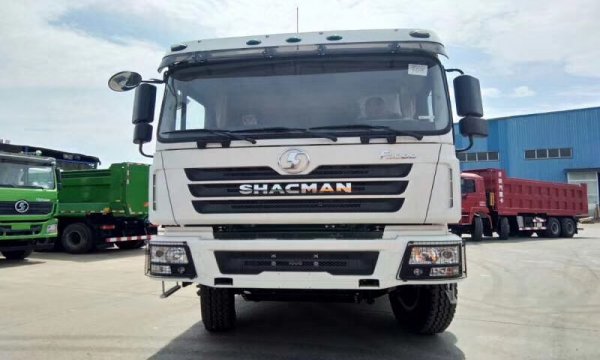

SHACMAN F3000 6X4 Dump Truck

Model: SX3255DR384

SHACMAN F3000 6x4 Dump Truck is able to traverse nearly all type of terrain without any problems, and it often works at mining and off-road construction sites. It features high transmission torque due to its Ф430mm large friction clutch. It is generally used for short distance specific route operation, and the carrying capacity is its absolute advantage. It is a truck that is equipped with a hydraulic lifting mechanism that can lift the cargo box for automatic unloading.

SHACMAN F3000 6x4 Dump Truck achieves great rigidity in structure and strong bearing capacity by reinforcing its multi-leaf spring and four U-bolts. It has sufficient power, large cargo volume, able to carry more goods, climbing favorably, fast driving speed, able to improve the real needs of transport efficiency. This dump truck has become the main means of transportation for site construction and production due to the advantages of good mobility, fast turnover and large load capacity.

Key features

Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.
Wheel rim has been reinforced, whose thickness increased from 14mm to 16mm and steel ring from 8.5 to 9.0.
Φ120 bore steering gear, the steering assist capacity is increased by 24%
The ground clearance is increased up to 636mm, and the thickness of the bottom protector is increased from 3mm to 6mm, which can meet the requirements of customers.

SHACMAN F3000 6X4 Dump Truck

ParameterParameter

MODEL		SX3255DR384
		Left Hand / Right Hand
Driving type		6×4
Curb weight		9800kg（chassis）
Overall Dimension(LxWxH)		8400×2490×3480mm
Wheelbase		3775+1400mm
Max. Speed		72 km/h
Max. Grade ability		30%
Engine	Brand	WEICHAI
	Model	WP10.340E22
	Emission Standard	EUROⅡ
	Rated output power	340HP
	Rated speed	2200rpm
	Max.Torque	1600N.m/1200～1600r/pm
	Displacement(L)	9.726L
Transmission	Brand	FAST
	Model	10JSD180 with QH50 PTO , manual , 10F/2R
Front axle	Model	MAN 9.5T
Rear axle	Model	16T MAN double reduce axle，ratio 5.92
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850×300（8+7）
Suspension		multiple leaf springs front and rear/Four main spring + four bolts

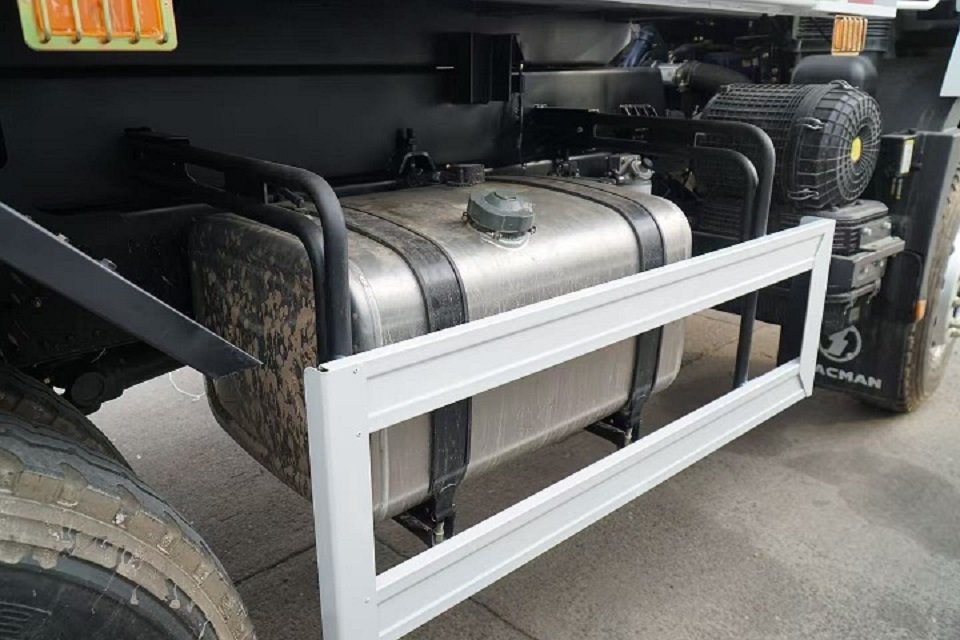

Fuel tank		400L fuel tank
Wheels and tires		12.00R20 Radial tire

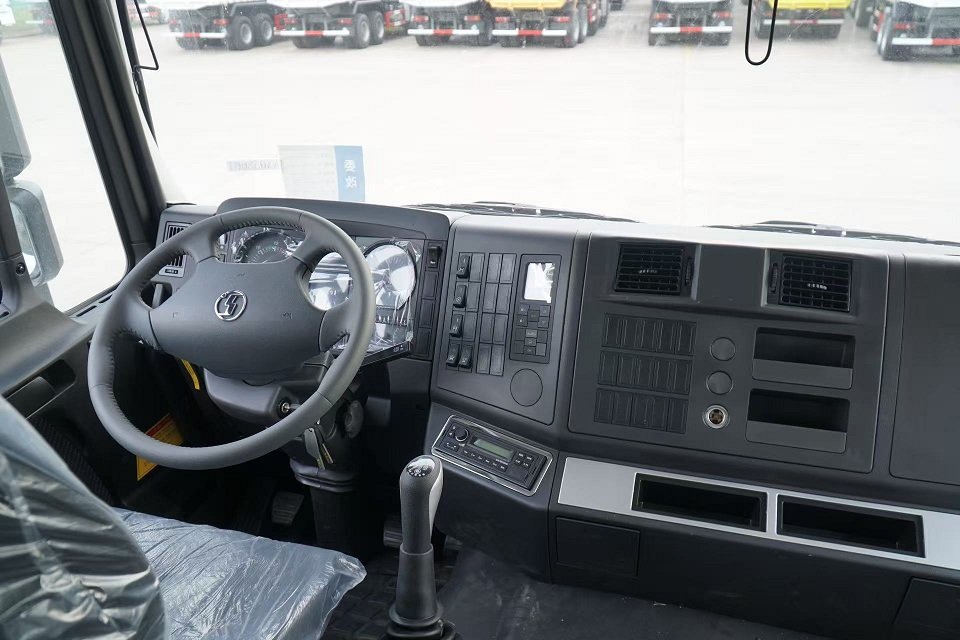

Cabin		F3000 D cab/ one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper

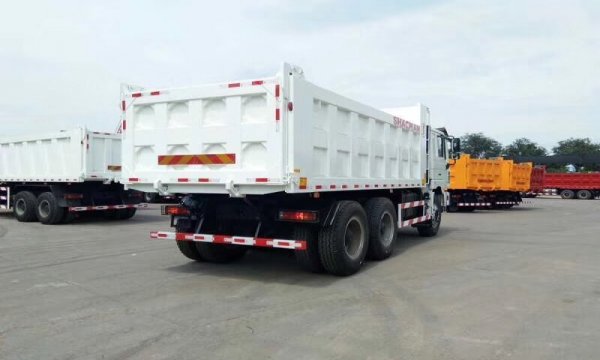

Dump body		5600x2300x1500mm, 20m3 volume,(15-25m3 option).
Thickness		Floor 8mm, side 6mm
Lifting type		Middle lift
