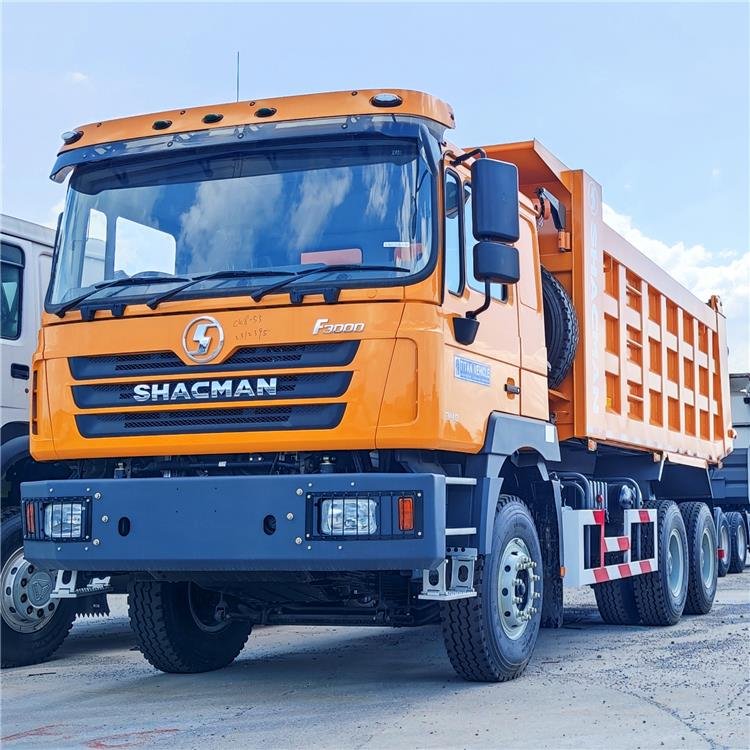

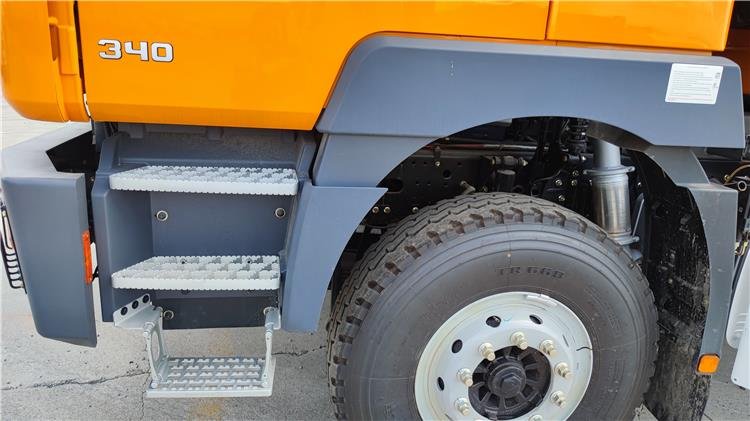

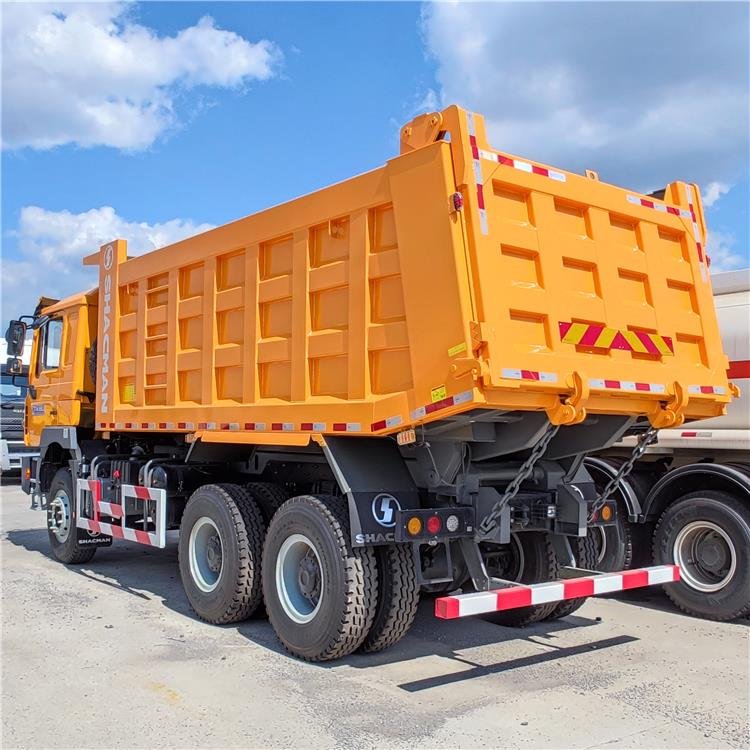

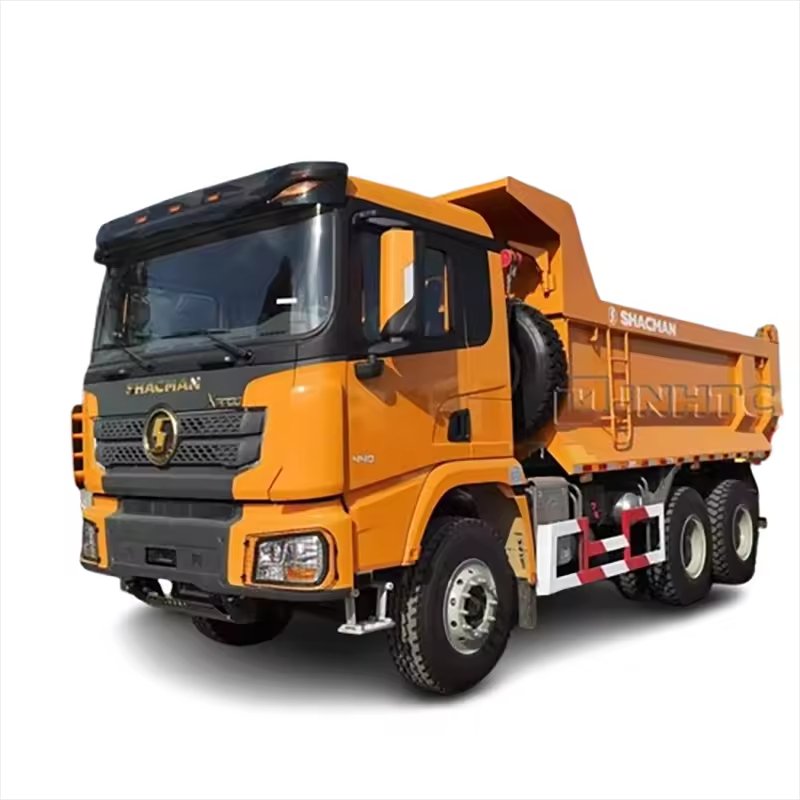

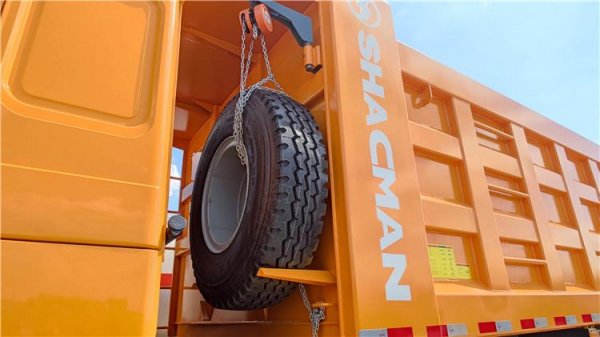

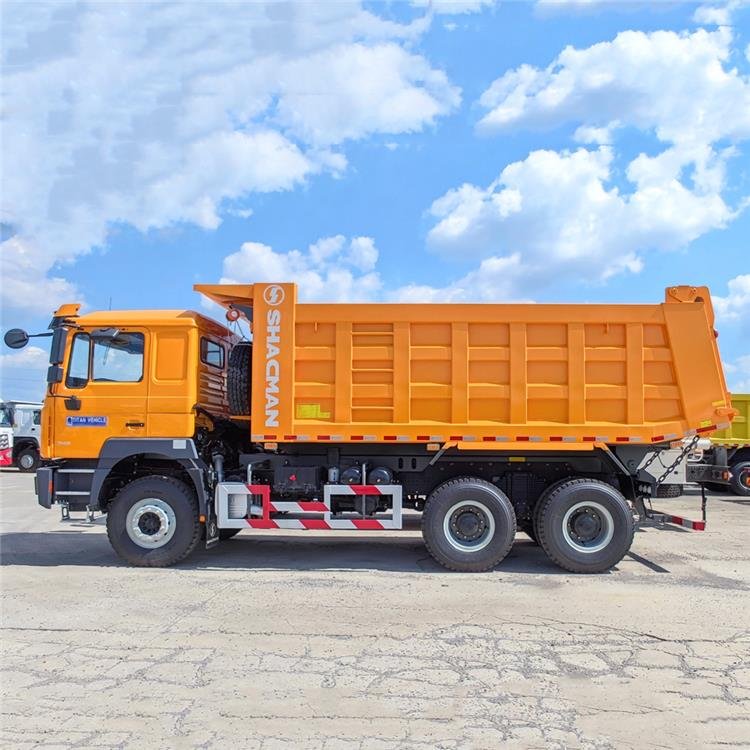

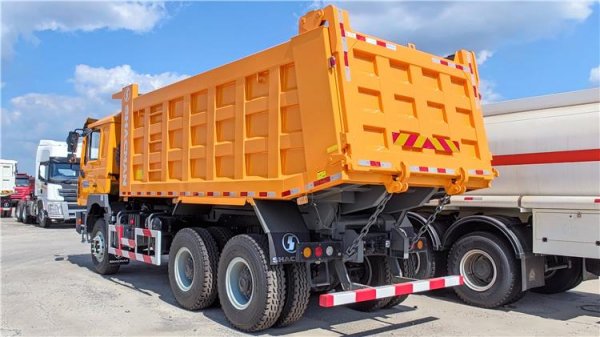

SHACMAN X3000 6x4 Dump Truck

A robust and versatile dump truck designed for demanding construction, mining, and transportation tasks. The SHACMAN X3000 features a powerful 380HP engine, a durable MAN axle system, and a spacious dump box. Built with a heavy-duty frame and reinforced components, this truck is engineered to handle extreme conditions while ensuring reliability and efficiency.

Key Features:
✔ Model: SX32566T384
✔ Engine: WP10.380E22 – 380HP, Euro II emission standard
✔ Cabin: X3000 extended cab with one sleeper berth and air conditioner – Enhanced driver comfort
✔ Gearbox: 10JSD180 – 10 forward + 2 reverse speeds, manual type with PTO
✔ Front Axle: MAN 9.51 – 9.5 tons rated loading capacity, drum type
✔ Rear Axle: MAN162 – 32 tons rated loading, 5.92 speed ratio optional
✔ Steering: ZF steering with power assistance – RHD optional
✔ Fuel Tank: 300L aluminum alloy tanker – Lightweight and corrosion-resistant
✔ Tires: 12.00R20 radial tires (10+1 pcs) – Durable and long-lasting
✔ Bumper: High position bumper, metal material – Enhanced protection
✔ Suspension: Front and rear enhanced leaf springs – Improved stability
✔ Dump Box: 5600x2300x1500mm – 8mm for bottom, 6mm for sides, U-shape box with front lifting cylinder
✔ Color Options: White, black, red, yellow, green, blue – Customizable to customer preferences

SHACMAN X3000 6x4 Dump Truck

SHACMAN X3000 6x4 Dump Truck

Specifications Reference:

• Model: SX32566T384

• Engine:

• Brand: WEICHAI

• Model: WP10.380E22

• Horsepower: 380HP

• Emission Standard: Euro II

• Cabin:

• Type: X3000 extended cab

• Features: One sleeper berth, air conditioner

• Gearbox:

• Model: 10JSD180

• Speeds: 10 forward + 2 reverse

• Type: Manual with PTO

• Axles:

• Front: MAN 9.5*1, 9.5 tons rated loading, drum type

• Rear: MAN16*2, 32 tons rated loading, 5.92 speed ratio optional

• Steering: ZF steering with power assistance (RHD optional)

• Fuel Tank: 300L aluminum alloy

• Tires: 12.00R20 radial tires (10+1 pcs)

• Bumper: High position, metal material

• Suspension: Front and rear enhanced leaf springs

• Dump Box:

• Dimensions: 5600x2300x1500mm

• Material Thickness: Bottom 8mm, sides 6mm

• Design: U-shape box with front lifting cylinder

• Color Options: White, black, red, yellow, green, blue

Applications:

• Construction site transportation

• Mining operations

• Heavy cargo hauling

• Infrastructure projects

Interested in this model? Contact us for pricing and configuration options
Contact: William
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc

This comprehensive product description highlights the key features, specifications, and applications of the SHACMAN X3000 6x4 Dump Truck, making it an ideal choice for heavy-duty operations.
